LEYBOLD brand guide / Product family
Compare DRYVAC DV 200, 300, 500, 650, 800, 1200 and 1600 water-cooled dry screw pumps for industrial vacuum and process systems.
| Specification | Details |
|---|---|

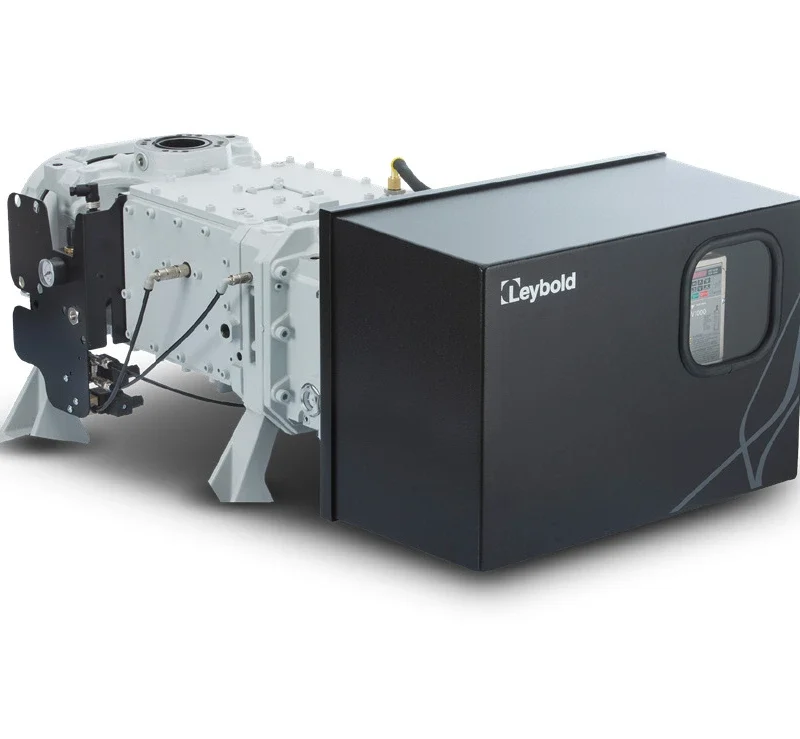

| Leybold DRYVAC DV 200 Dry Screw Vacuum Pump | 210 m³/h without gas ballast; ±5% |
| Leybold DRYVAC DV 300 Dry Screw Vacuum Pump | 280 m³/h without gas ballast; ±5% |
| Leybold DRYVAC DV 500 Dry Screw Vacuum Pump | 460 m³/h without gas ballast; ±5% |

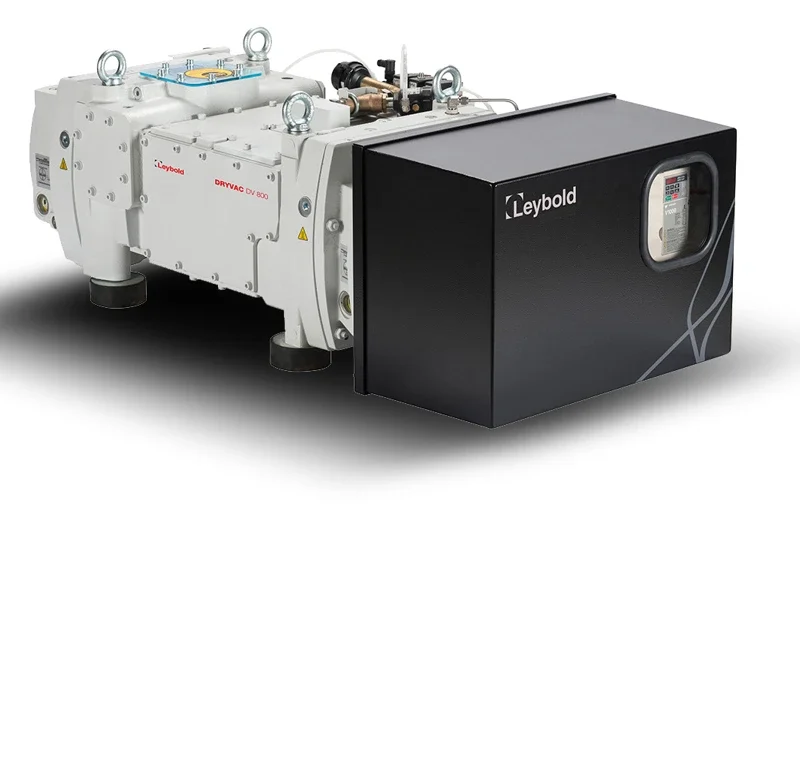

| Leybold DRYVAC DV 650 Dry Screw Vacuum Pump | 650 m³/h without gas ballast; ±5% |
| Leybold DRYVAC DV 800 Dry Screw Vacuum Pump | 800 m³/h without gas ballast; ±5% |

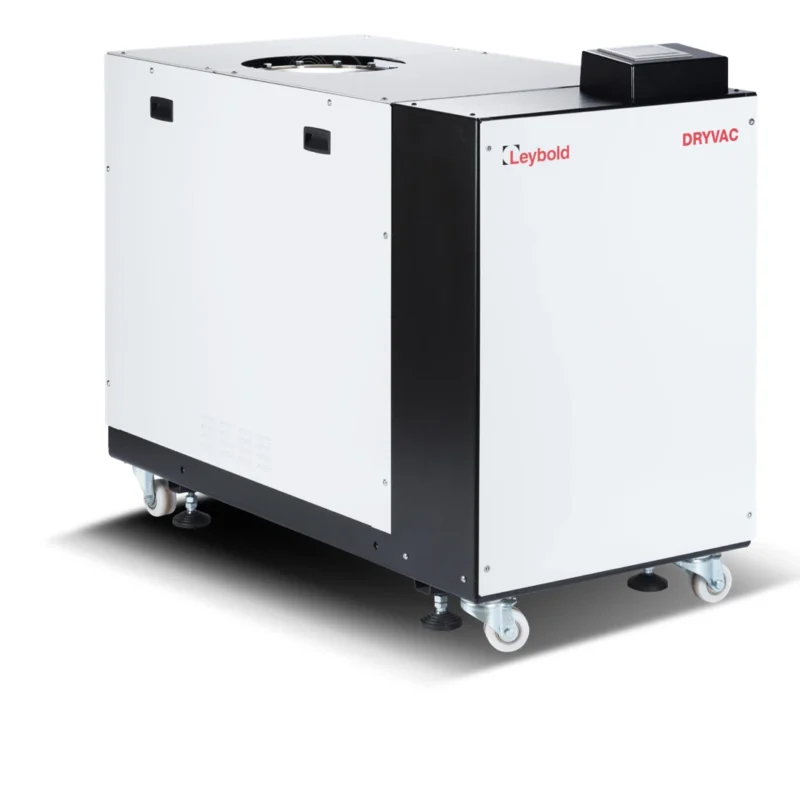

| Leybold DRYVAC DV 1200 Dry Screw Vacuum Pump | 1250 m³/h without gas ballast; ±5% |
| Leybold DRYVAC DV 1600 Dry Screw Vacuum Pump | 1640 m³/h without gas ballast; ±5% |
DRYVAC uses dry screw compression with water cooling and configuration-specific purge and controls. The standard models cover maximum pumping speeds from 210 to 1640 m³/h in the cited operating manuals. Bearings and gears retain isolated lubricant, so dry compression does not mean maintenance-free operation.
DV 200–500 pressure ratings include inlet and outlet shaft-seal purge. DV 650–1600 lowest ratings are partial-pressure values without purge or with exhaust shaft-seal purge only. Gas ballast and additional purge change the attainable pressure. The DV 1600 manual gives 1640 m³/h, while the older overview brochure uses 1600 m³/h; individual listings follow their cited manual.
Confirm gas and vapour load, working pressure, duty cycle, cooling water, exhaust conditions and three-phase supply. Standard, rack-mounted, washdown FP, PFPE and hazardous-duty builds must be selected separately. Fieldbus modules, silencers, displays and booster hardware are not universally included.
Compare VARODRY, NOVADRY and LEYCON vacuum valves for the surrounding system.
Each product page links to the relevant operating instructions and retains the conditions on the published specifications. Send the process, working pressure, flow, connections and utilities for a configured quotation. Explore the Leybold brand guide for related ranges.
Plan the backing-pump combination with RUVAC WA/WAU boosters. Read drying and degassing or coating vacuum guidance.
Compare values with their stated gas, frequency and configuration conditions. A blank specification means it needs confirmation. Listed equipment is subject to a quotation; inclusion here does not indicate stock.
| Model | End / ultimate pressure | Electrical supply | Cooling |
|---|---|---|---|
| Leybold DRYVAC DV 200 Dry Screw Vacuum Pump | <0.05 mbar with inlet and outlet shaft-seal purge | 380–460 V ±10%, three-phase, 50/60 Hz for listed 400 V build | Water; specified water quality, flow and temperature required |
| Leybold DRYVAC DV 300 Dry Screw Vacuum Pump | <0.01 mbar with inlet and outlet shaft-seal purge | 380–460 V ±10%, three-phase, 50/60 Hz for listed 400 V build | Water; specified water quality, flow and temperature required |
| Leybold DRYVAC DV 500 Dry Screw Vacuum Pump | <0.01 mbar with inlet and outlet shaft-seal purge | 380–460 V ±10%, three-phase, 50/60 Hz for listed 400 V build | Water; specified water quality, flow and temperature required |
| Leybold DRYVAC DV 650 Dry Screw Vacuum Pump | <0.005 mbar partial pressure, without purge or with exhaust shaft-seal purge only | 380–460 V ±10%, three-phase, 50/60 Hz for listed 400 V build | Water; specified water quality, flow and temperature required |
| Leybold DRYVAC DV 800 Dry Screw Vacuum Pump | <0.005 mbar partial pressure, without purge or with exhaust shaft-seal purge only | 380–460 V ±10%, three-phase, 50/60 Hz for listed 400 V build | Water; specified water quality, flow and temperature required |
| Leybold DRYVAC DV 1200 Dry Screw Vacuum Pump | <0.005 mbar partial pressure, without purge or with exhaust shaft-seal purge only | 380–460 V ±10%, three-phase, 50/60 Hz for listed 400 V build | Water; specified water quality, flow and temperature required |
| Leybold DRYVAC DV 1600 Dry Screw Vacuum Pump | <0.005 mbar partial pressure, without purge or with exhaust shaft-seal purge only | 380–460 V ±10%, three-phase, 50/60 Hz for listed 400 V build | Water; specified water quality, flow and temperature required |
LEYBOLD
LEYBOLD
LEYBOLD
LEYBOLD
LEYBOLD
LEYBOLD
LEYBOLD
Open the model page for its specifications and available manufacturer downloads. Match the full model, suffix and revision to the equipment being supplied. Keep installation limits and performance test conditions with the figure when comparing alternatives.
Return to the LEYBOLD brand guide · Explore all product families
Send the process, working pressure, gas, required capacity and electrical supply. For measurement, include the range, connection, output and controller. We can confirm the model, accessories and documentation for your quotation.
Compare the stated conditions as well as the values. A missing specification is not a zero rating; confirm suitability with Girovac.
