The Leybold DRYVAC DV 800 is a water-cooled dry screw vacuum pump for industrial pumping, suitable process duties and engineered vacuum systems. Maximum pumping speed is 800 m³/h without gas ballast; select purge, controls and materials for the actual process.

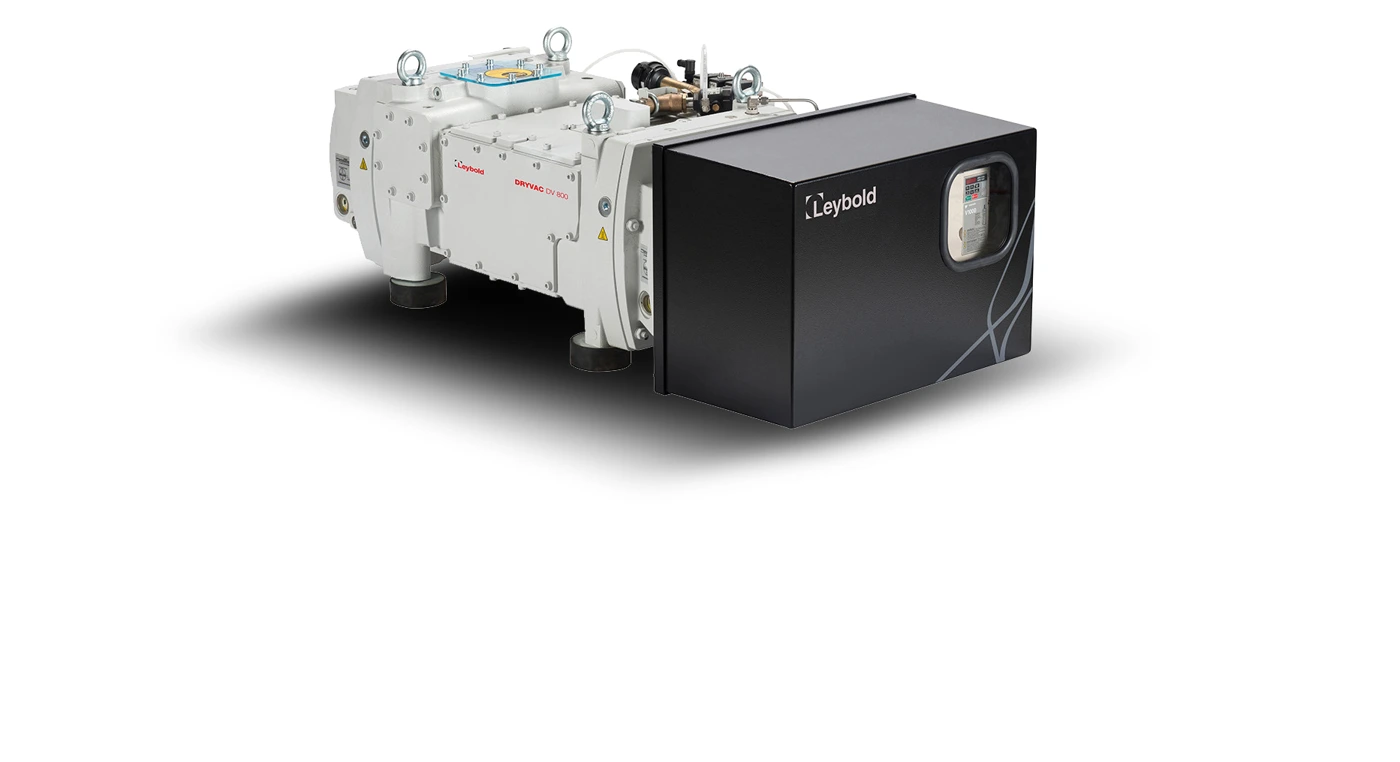

Leybold manufacturer illustration of the DRYVAC DV 650 / DV 800 group; ordered controls and fittings may vary.
Quote the complete Leybold ordering code when requesting a price. The entries below identify different configurations; voltage, flange, lubricant, cooling and interfaces must match the installation. Availability and supplied equipment are confirmed with the quotation.
Product code
Manufacturer designation
Configuration detail
112080FP01-1
DRYVAC DV 800 FP-r – Hygienic (LVO 210)
See designation and selected-code documentation
112080FP02-1
DRYVAC DV 800 FP-r – silencer hygienic
See designation and selected-code documentation
112080FP21-1
DRYVAC DV 800 FP-r – Hygienic (LVO 410)
See designation and selected-code documentation
112080FP22-1
DRYVAC DV 800 FP-r – silencer hyg. PFPE
See designation and selected-code documentation
112080V05-1
DRYVAC DV 800-r
See designation and selected-code documentation
112080V07-1
DRYVAC DV 800-r – triple purge
See designation and selected-code documentation
112080V12-1
DRYVAC DV 800 – 400V LIB
See designation and selected-code documentation
112080V14-1
DRYVAC DV 800 – Triple purge baseplate
See designation and selected-code documentation
112080V15-1
DRYVAC DV 800 – 380-480V LVO210
See designation and selected-code documentation
112080V16-1
DRYVAC DV 800 – with Energy Saver
See designation and selected-code documentation
112080V17-1
DRYVAC DV 800 – Triple purge 400V LVO210
See designation and selected-code documentation
112080V75-1
DRYVAC DV 800 – 380-480V, LVO 210 Plug&Go
See designation and selected-code documentation
1212080V17-1
DRYVAC DV 800 – triple purge 400V LVO 210
See designation and selected-code documentation
14640800V92DGN
DRYVAC DV800 S, 210, 400V, 3xP, G
See designation and selected-code documentation
Applications and selection
The Leybold DRYVAC DV 800 is a water-cooled dry screw vacuum pump for industrial pumping, suitable process duties and engineered vacuum systems. Maximum pumping speed is 800 m³/h without gas ballast; select purge, controls and materials for the actual process.
Key specifications
Specification
Details
Maximum pumping speed
800 m³/h without gas ballast; ±5%
Ultimate pressure
<0.005 mbar partial pressure, without purge or with exhaust shaft-seal purge only
Compression
Dry screw; isolated bearing and gear lubricant
Cooling
Water; specified water quality, flow and temperature required
Electrical supply
380–460 V ±10%, three-phase, 50/60 Hz for listed 400 V build
Rated motor power
19.6 kW; differs from power consumed at ultimate pressure
Inlet
DN100 ISO-K
Ambient operation
5–45 °C
Documented configurations
Specification
Details
112080V15-1
400 V class standard configuration; LVO 210 lubricant
Purge, gas ballast and process suitability
Dry compression keeps sealing oil out of the pumping chamber. Bearings and gears still require the specified lubricant. Purge and gas ballast protect the pump and help with suitable vapour loads, but change the attainable pressure. Provide gas composition, condensable load, dust and operating pressure before selection.
The manual identifies the lowest rating as ultimate partial pressure. Rotor purge raises it to 0.01 mbar and gas ballast to 0.1 mbar, both ±10%. Inlet shaft-seal purge produces a different pressure again. The process protection requirements determine which operating condition is appropriate.
Power, controls and accessories
Specify the 400 V three-phase configuration for the relevant UK industrial supply. Frequency-converter and control arrangements depend on the order reference; rack-mounted “-r” versions are distinct builds. Fieldbus modules, external displays, non-return valves, silencers, inlet protection and booster adapters are selected separately unless included explicitly in the quotation. Select washdown FP or process-specific versions separately.
Installation and enquiry
Provide duty cycle, working pressure, throughput, cooling-water conditions, exhaust back pressure, footprint and available power. Ultimate pressure is a manufacturer test value, not a guarantee at the chamber. Preserve service access and observe the full cooling-water and purge requirements in the instructions.
Technical source: 301042728_002_C5, technical data pp.25–27 and ordering section. The exact order reference, supplied equipment and availability are confirmed with the quotation.
For DRYVAC DV 800 Dry Screw Vacuum Pump, include working pressure, required flow or chamber volume, gas and vapour load, operating hours, electrical supply and connections. For a replacement, send the complete nameplate and serial number so the configuration can be checked.
Specifications
Manufacturer
LEYBOLD
Equipment type
Dry Screw Vacuum Pumps
End / ultimate pressure
<0.005 mbar partial pressure, without purge or with exhaust shaft-seal purge only
Electrical supply
380–460 V ±10%, three-phase, 50/60 Hz for listed 400 V build
Cooling
Water; specified water quality, flow and temperature required
Maximum pumping speed
800 m³/h without gas ballast; ±5%
Ordering options
14 manufacturer codes — see configuration table
Compression
Dry screw; isolated bearing and gear lubricant
Rated motor power
19.6 kW; differs from power consumed at ultimate pressure
Inlet
DN100 ISO-K
Ambient operation
5–45 °C
Parts, consumables and workshop support
Send the pump model and part number when asking about a replacement. Compatibility depends on the equipment and operating conditions.
Confirm the exact version, electrical supply and connections. Ask whether oil, filters, fittings, cables or controllers are included or separately specified.
Availability, lead time and the applicable warranty are confirmed for your quotation. A catalogue listing does not reserve stock.
