Leybold THERMOVAC TM201 Portable Vacuum Gauge
- Measurement principle
- Combined piezo/Pirani; Pirani response depends on gas
- Measuring range
- 1200 to 5 × 10⁻⁵ mbar absolute
- Vacuum connection
- DN16 ISO-KF
LEYBOLD brand guide / Product family
Explore THERMOVAC Pirani and combination gauges. Open a product for ordering references, configuration choices and quotation options.
Verified manufacturer ordering references are listed on the product pages. For configured equipment, the final code is confirmed with the quotation.
Find Leybold filters, maintenance kits, replacement parts and LEYBONOL

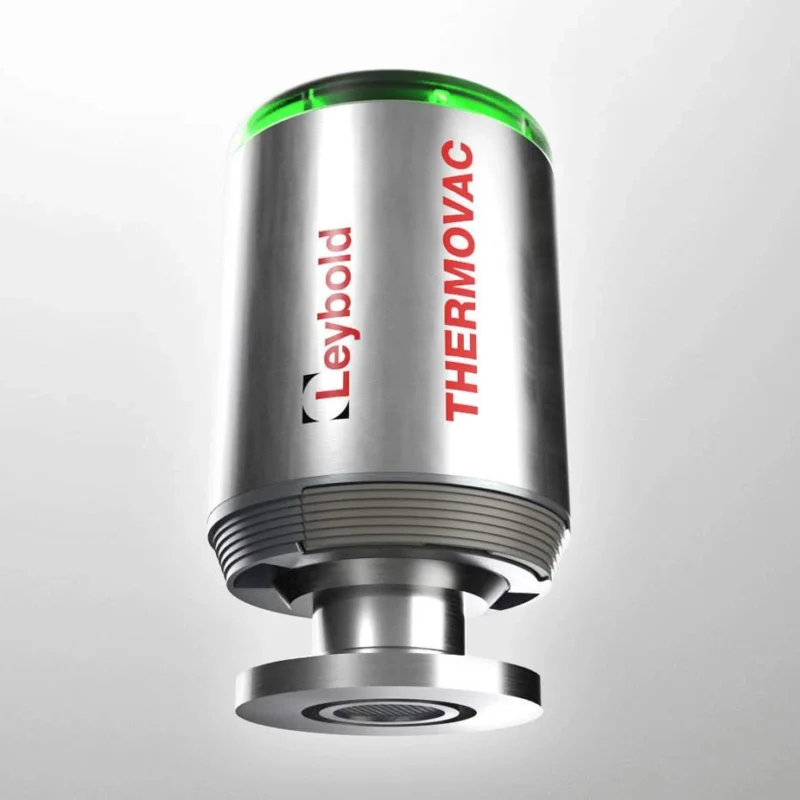

TTR 91, 96 and 97 RN active transmitters offer filament and output choices.
THERMOVAC TTR 91 RN uses a tungsten/rhenium filament; TTR 96 RN and TTR 97 RN use different corrosion-resistant filament materials. Output variants can change the low-pressure limit. Pirani readings depend on the gas. Check the output transfer function, connector pinout, setpoints and controller input rather than selecting from pressure range alone.
Select filament material, pressure range, gas correction, output and connector together.
The Leybold THERMOVAC TM201 combines piezo/Pirani measurement with a display and logging. For rough-vacuum measurements down to 1 mbar, see the PIEZOVAC PV201.
Compare values with their stated gas, frequency and configuration conditions. A blank specification means it needs confirmation. Listed equipment is subject to a quotation; inclusion here does not indicate stock.
| Model | Measurement principle | Measuring range | Vacuum connection | Ordering options |
|---|---|---|---|---|
| Leybold THERMOVAC TM201 Portable Vacuum Gauge | Combined piezo/Pirani; Pirani response depends on gas | 1200 to 5 × 10⁻⁵ mbar absolute | DN16 ISO-KF | 6 manufacturer codes — see configuration table |
| Leybold THERMOVAC TR Pirani Sensors Vacuum Gauge | Confirm for this model | Confirm for this model | Confirm for this model | 6 manufacturer codes — see configuration table |
| Leybold THERMOVAC TTR 91 RN Pirani Vacuum Gauge | Active Pirani; gas-dependent thermal conductivity | Confirm for this model | DN16 KF, DN25 KF, DN16 CF and other documented connection variants | 22 manufacturer codes — see configuration table |
| Leybold THERMOVAC TTR 96 RN Pirani Vacuum Gauge | Active Pirani; gas-dependent thermal conductivity | Confirm for this model | DN16 KF, DN25 KF, DN16 CF and other documented connection variants | 7 manufacturer codes — see configuration table |
| Leybold THERMOVAC TTR 97 RN Pirani Vacuum Gauge | Active Pirani; gas-dependent thermal conductivity | Confirm for this model | DN16 KF, DN25 KF, DN16 CF and other documented connection variants | 5 manufacturer codes — see configuration table |
| Leybold THERMOVAC TTR 101 Vacuum Gauge | Confirm for this model | Confirm for this model | Confirm for this model | 12 manufacturer codes — see configuration table |
| Leybold THERMOVAC TTR 911 RN Vacuum Gauge | Confirm for this model | Confirm for this model | Confirm for this model | 7 manufacturer codes — see configuration table |
| Leybold THERMOVAC TTR 916 RN Vacuum Gauge | Confirm for this model | Confirm for this model | Confirm for this model | 2 manufacturer codes — see configuration table |

LEYBOLD

LEYBOLD

LEYBOLD

LEYBOLD

LEYBOLD

LEYBOLD

LEYBOLD

LEYBOLD
Open the model page for its specifications and available manufacturer downloads. Match the full model, suffix and revision to the equipment being supplied. Keep installation limits and performance test conditions with the figure when comparing alternatives.
Return to the LEYBOLD brand guide · Explore all product families
Send the process, working pressure, gas, required capacity and electrical supply. For measurement, include the range, connection, output and controller. We can confirm the model, accessories and documentation for your quotation.
Compare the stated conditions as well as the values. A missing specification is not a zero rating; confirm suitability with Girovac.
