LEYBOLD
Leybold ECODRY 25 plus Dry Multistage Roots Vacuum Pump
- Electrical supply
- Single-phase 100–127 or 200–240 V AC ±10%, 50/60 Hz
- Maximum pumping speed
- 25 m³/h at standard ambient temperature and pressure
- Typical ultimate pressure
- 0.01 mbar
LEYBOLD brand guide / Product family
Leybold ECODRY plus dry multistage roots pumps
ECODRY plus provides dry multistage Roots pumping for clean laboratory, analytical and suitable turbomolecular backing duties. Compare 25, 35, 40 and 65 plus, with the separate 65 He plus for helium recovery and recirculation.
Two platforms with different ratings

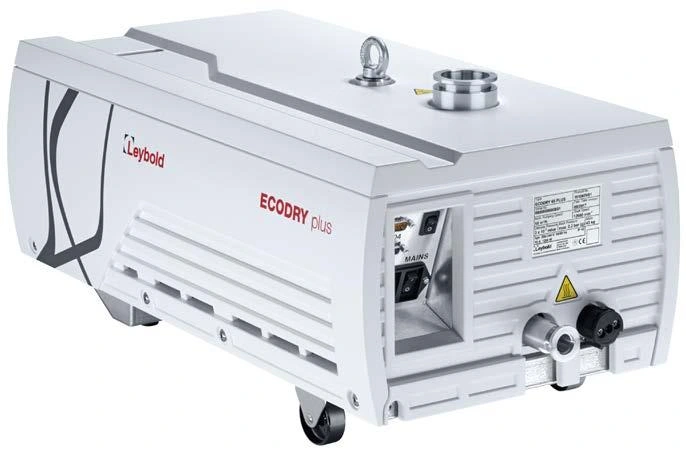

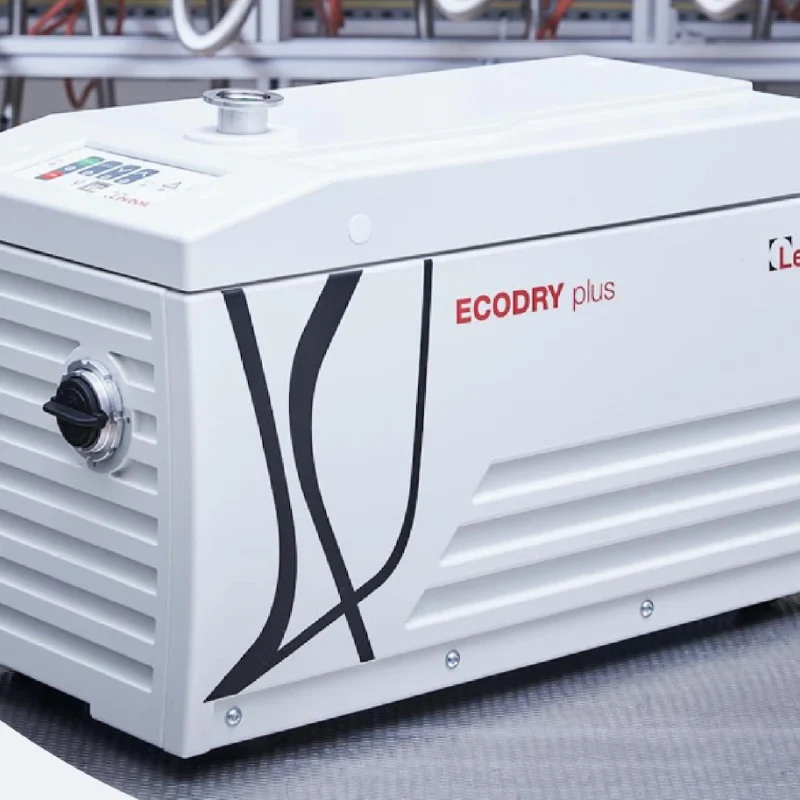

ECODRY 25/35 plus provide 25/35 m³/h maximum pumping speed and a typical ultimate pressure of 0.01 mbar. The 40/65 plus platform provides 40/55 m³/h maximum air pumping speed without gas ballast and an ultimate pressure below 0.03 mbar without gas ballast. Electrical ratings, connection sizes, dimensions and operating limits differ: consult the individual model page.
Helium recovery and vapour handling
ECODRY 65 He plus combines enhanced total leak tightness with up to 52 m³/h helium pumping speed. It has no gas-ballast valve and is not suitable for condensing gases. Standard 40/65 plus versions have gas ballast with model-specific water-vapour capacities.
Selection and installation
Specify chamber volume, pressure, gas throughput, cycle frequency, inlet connection, power and controls. The mains cable is a separately selected accessory; use the documented UK cable for the relevant configuration. Dry compression does not mean that bearings and gears have no lubricant.
For the high-vacuum stage, see TURBOVAC i / iX. Compare SCROLLVAC plus for alternative dry backing duties, or NOVADRY for larger industrial rough-vacuum applications.
Compare the listed models
Compare values with their stated gas, frequency and configuration conditions. A blank specification means it needs confirmation. Listed equipment is subject to a quotation; inclusion here does not indicate stock.
| Model | Electrical supply | Maximum pumping speed | Typical ultimate pressure | End / ultimate pressure |
|---|---|---|---|---|
| Leybold ECODRY 25 plus Dry Multistage Roots Vacuum Pump | Single-phase 100–127 or 200–240 V AC ±10%, 50/60 Hz | 25 m³/h at standard ambient temperature and pressure | 0.01 mbar | Confirm for this model |
| Leybold ECODRY 35 plus Dry Multistage Roots Vacuum Pump | Single-phase 100–127 or 200–240 V AC ±10%, 50/60 Hz | 35 m³/h at standard ambient temperature and pressure | 0.01 mbar | Confirm for this model |
| Leybold ECODRY 40 plus Dry Multistage Roots Vacuum Pump | Single-phase 100–120 V or 200–240 V ±10%, 50/60 Hz; separate order codes | 40 m³/h on air, without gas ballast; ±5% | Confirm for this model | <0.03 mbar without gas ballast |
| Leybold ECODRY 65 He plus Dry Multistage Roots Vacuum Pump | Single-phase 100–120 V or 200–240 V ±10%, 50/60 Hz; separate order codes | 55 m³/h on air, without gas ballast; ±5%; up to 52 m³/h on helium | Confirm for this model | <0.03 mbar without gas ballast |
| Leybold ECODRY 65 plus Dry Multistage Roots Vacuum Pump | Single-phase 100–120 V or 200–240 V ±10%, 50/60 Hz; separate order codes | 55 m³/h on air, without gas ballast; ±5% | Confirm for this model | <0.03 mbar without gas ballast |
Models and configurations
LEYBOLD
Leybold ECODRY 35 plus Dry Multistage Roots Vacuum Pump
- Electrical supply
- Single-phase 100–127 or 200–240 V AC ±10%, 50/60 Hz
- Maximum pumping speed
- 35 m³/h at standard ambient temperature and pressure
- Typical ultimate pressure
- 0.01 mbar
LEYBOLD
Leybold ECODRY 40 plus Dry Multistage Roots Vacuum Pump
- End / ultimate pressure
- <0.03 mbar without gas ballast
- Electrical supply
- Single-phase 100–120 V or 200–240 V ±10%, 50/60 Hz; separate order codes
- Maximum pumping speed
- 40 m³/h on air, without gas ballast; ±5%
LEYBOLD
Leybold ECODRY 65 He plus Dry Multistage Roots Vacuum Pump
- End / ultimate pressure
- <0.03 mbar without gas ballast
- Electrical supply
- Single-phase 100–120 V or 200–240 V ±10%, 50/60 Hz; separate order codes
- Maximum pumping speed
- 55 m³/h on air, without gas ballast; ±5%; up to 52 m³/h on helium
LEYBOLD
Leybold ECODRY 65 plus Dry Multistage Roots Vacuum Pump
- End / ultimate pressure
- <0.03 mbar without gas ballast
- Electrical supply
- Single-phase 100–120 V or 200–240 V ±10%, 50/60 Hz; separate order codes
- Maximum pumping speed
- 55 m³/h on air, without gas ballast; ±5%
Documentation and specification checks
Open the model page for its specifications and available manufacturer downloads. Match the full model, suffix and revision to the equipment being supplied. Keep installation limits and performance test conditions with the figure when comparing alternatives.
Compare equipment across manufacturers
Related LEYBOLD families
- Leybold TURBOVAC i / iX turbomolecular pumps
- Leybold TURBOLAB pumping stations
- Leybold SCROLLVAC plus dry scroll pumps
- Leybold TRIVAC L two-stage rotary vane pumps
- Leybold rotary vane pumps
- Leybold THERMOVAC Pirani gauges
- Leybold PENNINGVAC high-vacuum gauges
- Leybold CERAVAC capacitance gauges
- Leybold IONIVAC hot-cathode gauges
- Leybold GRAPHIX and COMBIVAC controllers
- Leybold NOVADRY dry screw vacuum pumps
- Leybold VARODRY dry screw vacuum pumps
- Leybold NEO D two-stage rotary vane pumps
- Leybold SOGEVAC B single-stage rotary vane pumps
Return to the LEYBOLD brand guide · Explore all product families
Specify your LEYBOLD equipment
Send the process, working pressure, gas, required capacity and electrical supply. For measurement, include the range, connection, output and controller. We can confirm the model, accessories and documentation for your quotation.
Compare selected equipment
Compare the stated conditions as well as the values. A missing specification is not a zero rating; confirm suitability with Girovac.
