Compare compact SCROLLVAC 3 and 3S plus with SCROLLVAC 7, 10, 15 and 18 plus dry scroll pumps.
SCROLLVAC plus provides dry scroll pumping with model-dependent single- or three-phase options. Read pumping speed at the specified frequency and distinguish standard, H and C configurations. Continuous inlet pressure, vapour load and required maintenance affect selection. A model number is not a substitute for the phase, frequency and operating limits in its instructions.
Use the correct phase/frequency performance. Check continuous inlet-pressure limits, chamber volume and standard, H or C suitability.

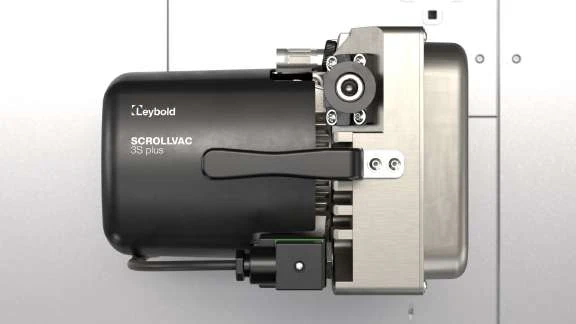

Both compact models deliver 3.0 / 3.5 m³/h at 50 / 60 Hz and 0.1 mbar ultimate pressure with gas ballast closed. The 3S adds a solenoid inlet isolation valve and 10-second delayed opening; the standard 3 plus suits systems with their own isolation. Select the voltage-specific 230 V build for typical UK single-phase installations and specify the mains lead separately.
Compact-model ratings and accessories do not automatically apply to the larger SCROLLVAC models. Use each model’s instructions for continuous-duty limits and gas compatibility.
Compare values with their stated gas, frequency and configuration conditions. A blank specification means it needs confirmation. Listed equipment is subject to a quotation; inclusion here does not indicate stock.
| Model | End / ultimate pressure | Electrical supply | Peak pumping speed, 50 / 60 Hz | Peak speed: 1-phase 50/60 Hz or 3-phase 60 Hz |
|---|---|---|---|---|
| Leybold SCROLLVAC 3 plus Dry Scroll Vacuum Pump | 0.1 mbar gas ballast closed; 0.15 mbar one turn open | Voltage-specific single-phase 100, 115, 200 or 230 V; 50/60 Hz | 3.0 / 3.5 m³/h | Confirm for this model |
| Leybold SCROLLVAC 3S plus Dry Scroll Vacuum Pump | 0.1 mbar gas ballast closed; 0.15 mbar one turn open | Voltage-specific single-phase 100, 115, 200 or 230 V; 50/60 Hz | 3.0 / 3.5 m³/h | Confirm for this model |
| Leybold SCROLLVAC 7 plus Dry Scroll Vacuum Pump | Confirm for this model | Confirm for this model | Confirm for this model | 6.1 m³/h |
| Leybold SCROLLVAC 10 plus Dry Scroll Vacuum Pump | Confirm for this model | Confirm for this model | Confirm for this model | 10.6 m³/h |

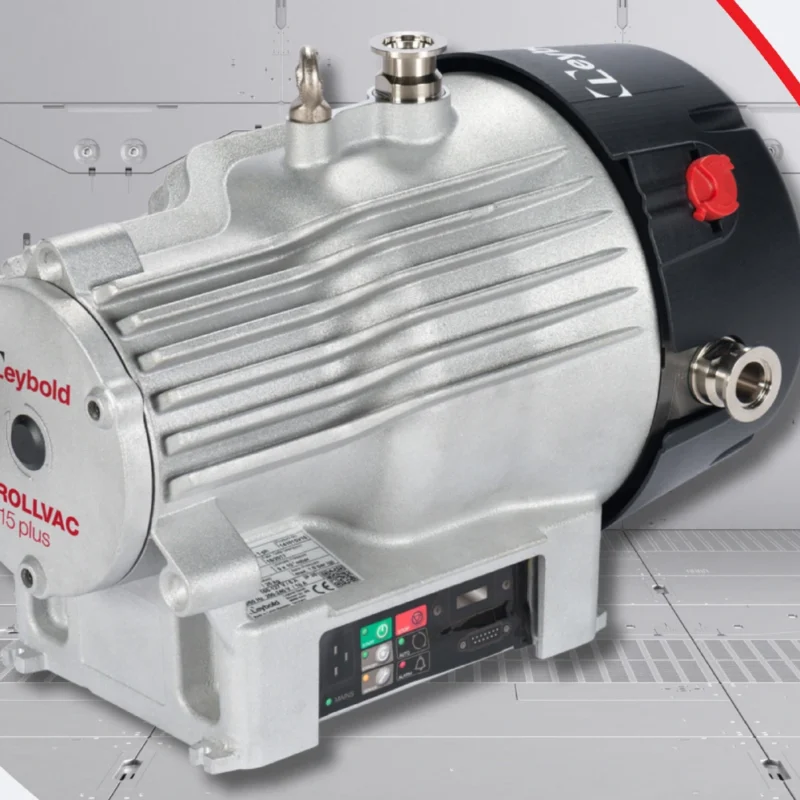

| Leybold SCROLLVAC 15 plus Dry Scroll Vacuum Pump | Confirm for this model | Confirm for this model | Confirm for this model | 14.5 m³/h |
| Leybold SCROLLVAC 18 plus Dry Scroll Vacuum Pump | Confirm for this model | Confirm for this model | Confirm for this model | 20 m³/h |
LEYBOLD
LEYBOLD
LEYBOLD
LEYBOLD
LEYBOLD
LEYBOLD
Open the model page for its specifications and available manufacturer downloads. Match the full model, suffix and revision to the equipment being supplied. Keep installation limits and performance test conditions with the figure when comparing alternatives.
Return to the LEYBOLD brand guide · Explore all product families
Send the process, working pressure, gas, required capacity and electrical supply. For measurement, include the range, connection, output and controller. We can confirm the model, accessories and documentation for your quotation.
Compare the stated conditions as well as the values. A missing specification is not a zero rating; confirm suitability with Girovac.
