Leybold SCROLLVAC 3 plus Dry Scroll Vacuum Pump
The Leybold SCROLLVAC 3 plus is a compact dry scroll pump for small laboratory systems and suitable instrument backing duties. It provides 3.0 m³/h at 50 Hz or 3.5 m³/h at 60 Hz. The standard 3 plus suits equipment with its own inlet isolation arrangement.
Leybold SCROLLVAC 3S plus illustrated with inlet isolation valve. The standard 3 plus has a different inlet arrangement.
Part of the Leybold SCROLLVAC plus dry scroll pumps family. Compare the range and other model options.
- End / ultimate pressure
- 0.1 mbar gas ballast closed; 0.15 mbar one turn open
- Electrical supply
- Voltage-specific single-phase 100, 115, 200 or 230 V; 50/60 Hz
- Peak pumping speed, 50 / 60 Hz
- 3.0 / 3.5 m³/h
- Inlet / exhaust
- DN16 ISO-KF / 1/8-inch BSP, 6 × 8 mm hose
Price and availability
Tell us the configuration and quantity you need. Include your process requirements if you would like help with selection.
View quote listProduct details
Applications and selection
The Leybold SCROLLVAC 3 plus is a compact dry scroll pump for small laboratory systems and suitable instrument backing duties. It provides 3.0 m³/h at 50 Hz or 3.5 m³/h at 60 Hz. The standard 3 plus suits equipment with its own inlet isolation arrangement.
Key specifications
| Specification | Details |
|---|---|
| Peak pumping speed, 50 / 60 Hz | 3.0 / 3.5 m³/h |
| Ultimate pressure | 0.1 mbar gas ballast closed; 0.15 mbar one turn open |
| Electrical supply | Voltage-specific single-phase 100, 115, 200 or 230 V; 50/60 Hz |
| Inlet / exhaust | DN16 ISO-KF / 1/8-inch BSP, 6 × 8 mm hose |
| Dimensions, L × W × H | 224 × 158 × 231 mm |
| Maximum mass | 7.8 kg |
| Ambient operation | 5–40 °C, indoor |
| Power consumption at ultimate | 180 W |
| Inlet isolation | No built-in inlet isolation valve |
| Equipment condition | New; configured by quotation |
Ultimate pressure is a manufacturer test value, not a guaranteed pressure at the chamber. Pipe conductance, gas load, temperature and condition affect installed performance.
Documented configurations
| Specification | Details |
|---|---|
| 142030V330 | 230 V single-phase, 50/60 Hz |
| 142030V320 | 200 V single-phase, 50/60 Hz |
| 142030V310 | 115 V single-phase, 50/60 Hz |
| 142030V300 | 100 V single-phase, 50/60 Hz |
Standard 3 plus or scientific 3S plus?
Both versions have a built-in exhaust valve. The 3S adds a fast-acting solenoid inlet valve and a relay that delays opening by 10 seconds after power is restored. The standard 3 plus has no built-in inlet valve. The manufacturer brochure lists an exhaust filter as supplied with 3S; confirm the complete supplied-equipment list in the quotation.
Power and installation
Request the 230 V version for UK single-phase installations. The voltage choices are separate pump builds, not a universal-voltage input. Specify the separately selected UK lead 800102V0003. Keep ventilation clear, support the pipework and follow the permitted exhaust back-pressure limits.
Gas ballast, accessories and maintenance
One turn of gas ballast gives 2.5 l/min flow and a 0.15 mbar ultimate-pressure rating. Use inlet protection and a compatible exhaust arrangement for the process. Silencer/filter accessories and service kits are selected separately unless expressly included. The pump is dry in its vacuum space, but bearings contain isolated lubricant and tip seals require maintenance. Prolonged operation at high inlet pressure can reduce bearing and tip-seal life.
The 3S inlet valve contains brass in the gas path. State the gas and chemical composition when enquiring so material compatibility can be checked.

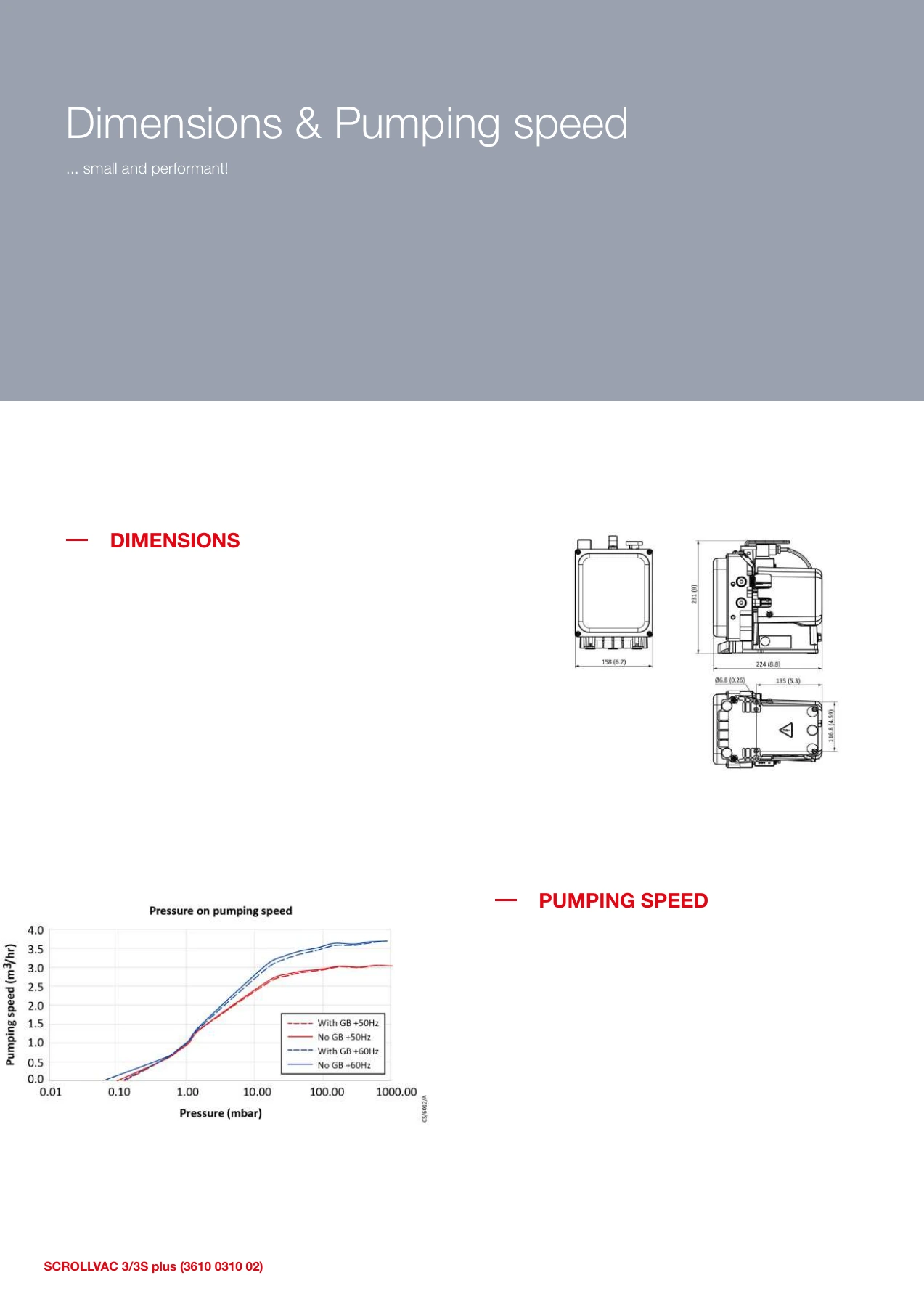

Dimensions and installation
Manufacturer downloads
Source: SCROLLVAC 3/3S brochure 3610 0310 02, pages 6–12; operating instructions 301098335_002_C3, pages 13, 16–21. This model-level listing covers the documented choices; the exact order reference, included equipment, availability and lead time are confirmed with the quotation.
Selection and support
Explore the SCROLLVAC range and Leybold brand guide. Compare vacuum gauges and controllers, plan gauge calibration, or discuss servicing.
For SCROLLVAC 3 plus, include working pressure, required flow or chamber volume, gas and vapour load, operating hours, electrical supply and connections. For a replacement, send the complete nameplate and serial number so the configuration can be checked.
Help with selection and operation
Specifications
| Manufacturer | LEYBOLD |
|---|---|
| Equipment type | Dry Scroll Vacuum Pumps |
| End / ultimate pressure | 0.1 mbar gas ballast closed; 0.15 mbar one turn open |
| Electrical supply | Voltage-specific single-phase 100, 115, 200 or 230 V; 50/60 Hz |
| Peak pumping speed, 50 / 60 Hz | 3.0 / 3.5 m³/h |
| Inlet / exhaust | DN16 ISO-KF / 1/8-inch BSP, 6 × 8 mm hose |
| Dimensions, L × W × H | 224 × 158 × 231 mm |
| Maximum mass | 7.8 kg |
| Ambient operation | 5–40 °C, indoor |
| Power consumption at ultimate | 180 W |
| Inlet isolation | No built-in inlet isolation valve |
| Equipment condition | New; configured by quotation |
Parts, consumables and workshop support
Send the pump model and part number when asking about a replacement. Compatibility depends on the equipment and operating conditions.
Before you order
Confirm the exact version, electrical supply and connections. Ask whether oil, filters, fittings, cables or controllers are included or separately specified.
Availability, lead time and the applicable warranty are confirmed for your quotation. A catalogue listing does not reserve stock.
What to check in your quotation · Delivery · Returns and faults
