Leybold TRIVAC D 5 L Two-Stage Rotary Vane Vacuum Pump
- Actual pumping speed, 50 Hz
- 5.1 m³/h
- Ultimate total pressure, gas ballast closed
- 0.002 mbar
- Inlet / exhaust
- DN25 ISO-KF / DN25 ISO-KF
LEYBOLD brand guide / Product family
The TRIVAC L range covers seven air-cooled, two-stage oil-sealed rotary vane pumps. The smaller D 5 L, D 12 L, D 18 L and D 30 L extend the range below the larger D 40 L, D 63 L and D 90 L models.
Actual pumping speeds at 50 Hz are 5.1, 12, 16, 29, 42, 60 and 79 m³/h respectively. Compare actual pumping speed separately from nominal displacement, and check performance at the working pressure. Small L models have single-phase and three-phase ordering options; larger L models include regional motor builds and bare-shaft versions.
Open a model below for the verified manufacturer codes. The D 40 L, D 63 L and D 90 L tables also include EU/US IE4 motor versions. Match the selected build to the electrical supply, connection sizes, lubricant and process gas. Prices and availability are confirmed by quotation.
Compare the TRIVAC B and BCS, TRIVAC L and TRIVAC T families. Model pages include manufacturer product codes and configuration options.
Compare values with their stated gas, frequency and configuration conditions. A blank specification means it needs confirmation. Listed equipment is subject to a quotation; inclusion here does not indicate stock.
| Model | Actual pumping speed, 50 Hz | Ultimate total pressure, gas ballast closed | Inlet / exhaust |
|---|---|---|---|
| Leybold TRIVAC D 5 L Two-Stage Rotary Vane Vacuum Pump | 5.1 m³/h | 0.002 mbar | DN25 ISO-KF / DN25 ISO-KF |
| Leybold TRIVAC D 12 L Two-Stage Rotary Vane Vacuum Pump | 12 m³/h | 0.002 mbar | DN25 ISO-KF / DN25 ISO-KF |
| Leybold TRIVAC D 18 L Two-Stage Rotary Vane Vacuum Pump | 16 m³/h | 0.003 mbar | DN25 ISO-KF / DN25 ISO-KF |
| Leybold TRIVAC D 30 L Two-Stage Rotary Vane Vacuum Pump | 29 m³/h | 0.003 mbar | DN25 ISO-KF / DN25 ISO-KF |

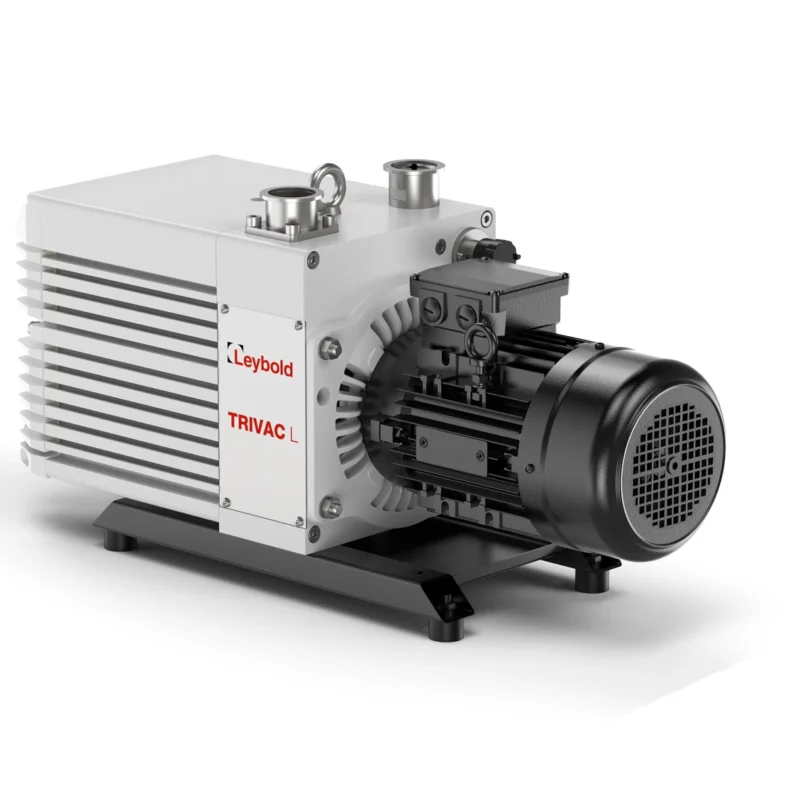

| Leybold TRIVAC D 40 L Two-Stage Rotary Vane Vacuum Pump | 42 m³/h | 0.003 mbar | DN40 ISO-KF / DN40 ISO-KF |

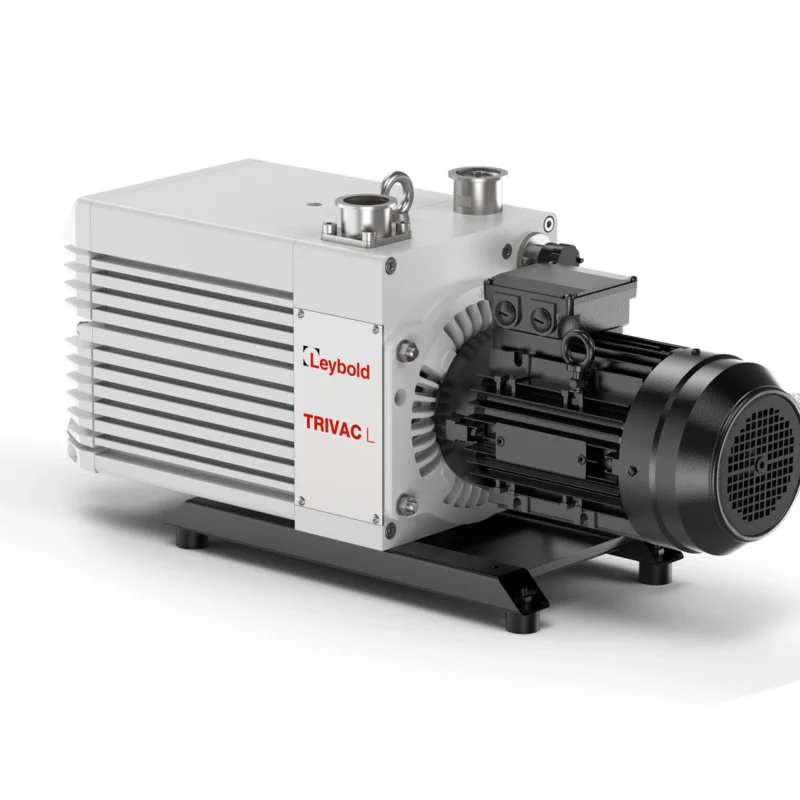

| Leybold TRIVAC D 63 L Two-Stage Rotary Vane Vacuum Pump | 60 m³/h | 0.003 mbar | DN40 ISO-KF / DN40 ISO-KF |

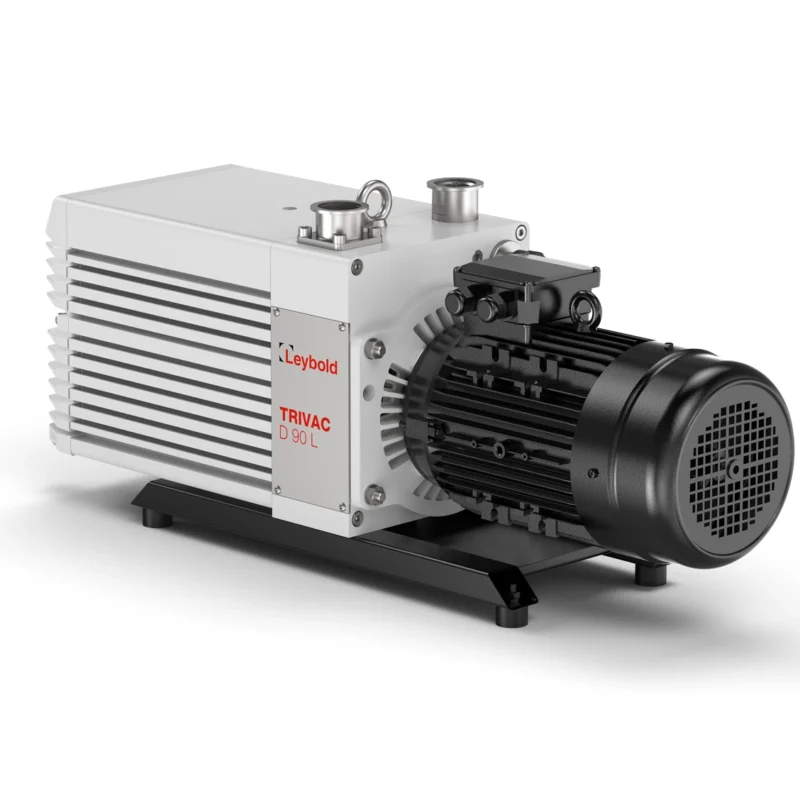

| Leybold TRIVAC D 90 L Two-Stage Rotary Vane Vacuum Pump | 79 m³/h | 0.003 mbar | DN40 ISO-KF / DN40 ISO-KF |

LEYBOLD

LEYBOLD

LEYBOLD

LEYBOLD

LEYBOLD

LEYBOLD

LEYBOLD
Open the model page for its specifications and available manufacturer downloads. Match the full model, suffix and revision to the equipment being supplied. Keep installation limits and performance test conditions with the figure when comparing alternatives.
Return to the LEYBOLD brand guide · Explore all product families
Send the process, working pressure, gas, required capacity and electrical supply. For measurement, include the range, connection, output and controller. We can confirm the model, accessories and documentation for your quotation.
Compare the stated conditions as well as the values. A missing specification is not a zero rating; confirm suitability with Girovac.
