Leybold THERMOVAC TTR 96 RN Pirani Vacuum Gauge
The THERMOVAC TTR 96 RN is an active Pirani transmitter for rough-vacuum monitoring and backing-line measurement. Its standard Leybold output covers 1 × 10⁻⁴ to 1000 mbar. The platinum/iridium filament is the corrosion-resistant option; check all wetted materials against your actual process.

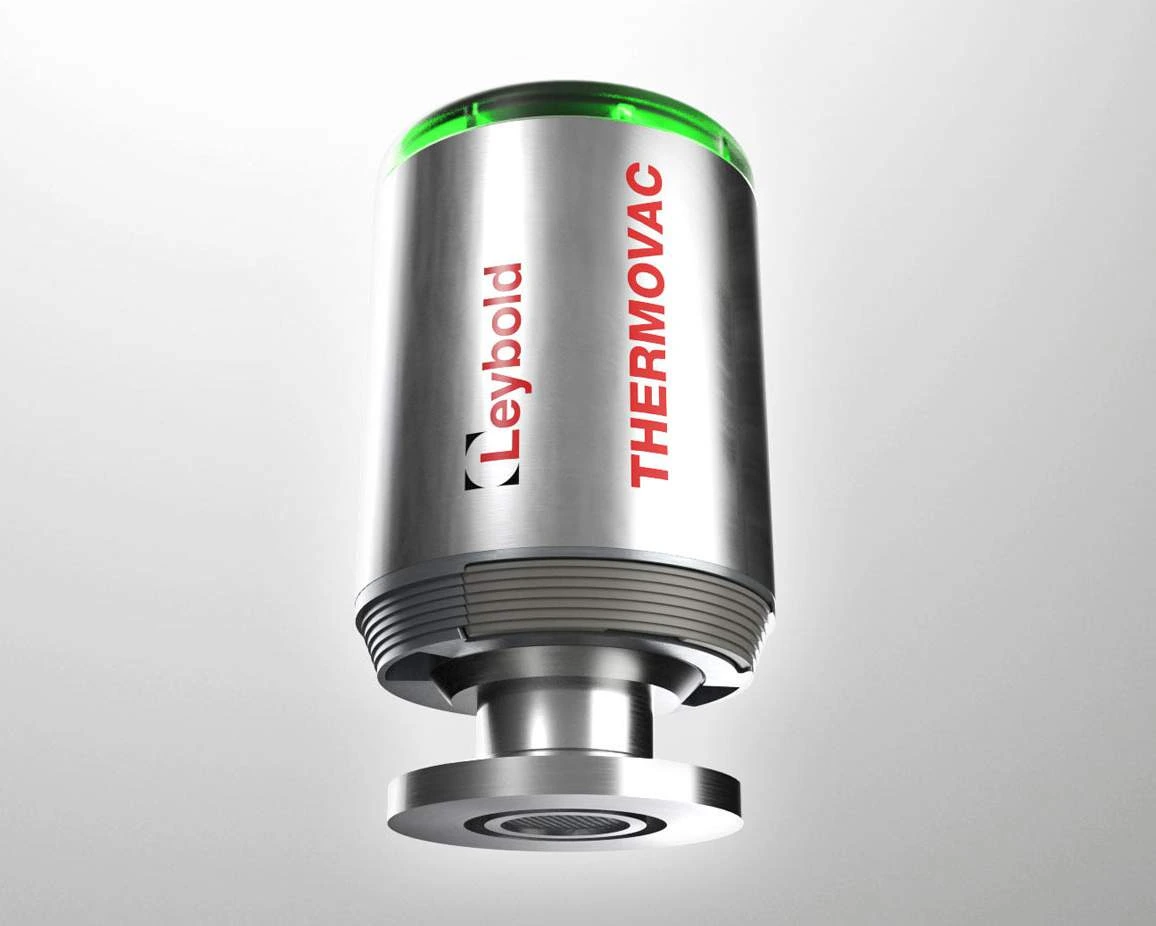

Manufacturer THERMOVAC RN range photograph; the illustrated flange and connector are configuration examples.
Part of the Leybold THERMOVAC Pirani gauges family. Compare the range and other model options.
- Measurement principle
- Active Pirani; gas-dependent thermal conductivity
- Pressure range
- 1 × 10⁻⁴–1000 mbar, standard Leybold analogue output
- Vacuum connection
- DN16 KF, DN25 KF, DN16 CF and other documented connection variants
- Signal / interface
- Logarithmic analogue output; separate RS232 or RS485 versions
Price and availability
Tell us the configuration and quantity you need. Include your process requirements if you would like help with selection.
View quote listProduct details
Choosing the THERMOVAC TTR 96 RN
The THERMOVAC TTR 96 RN is an active Pirani transmitter for rough-vacuum monitoring and backing-line measurement. Its standard Leybold output covers 1 × 10⁻⁴ to 1000 mbar. The platinum/iridium filament is the corrosion-resistant option; check all wetted materials against your actual process.
Key specifications
| Measurement principle | Active Pirani; gas-dependent thermal conductivity |
|---|---|
| Pressure range | 1 × 10⁻⁴–1000 mbar, standard Leybold analogue output |
| Filament material | Platinum/iridium |
| Typical accuracy | ±15% of reading from 1 × 10⁻³ to 10 mbar; poorer accuracy outside this band |
| Vacuum connection | DN16 KF, DN25 KF, DN16 CF and other documented connection variants |
| Signal / interface | Logarithmic analogue output; separate RS232 or RS485 versions |
| Supply voltage | 15–48 V DC nominal ±10%; limited-energy supply |
| Maximum power consumption | 1.5 W, analogue version |
| Operating temperature | +5 to +60 °C |
| Protection rating | IP40 |
| Bakeout temperature | 150 °C with electronics housing removed |
Choose the filament and output together
Pirani measurement depends on gas thermal conductivity. A nitrogen/air reading is not automatically the true pressure of helium, hydrogen or a changing mixture. Give Girovac the gas composition and working pressure so that the measuring principle, correction and material suitability can be checked.
The 1 × 10⁻⁴ mbar lower limit applies to the standard output. The manual limits matched “O” and “G” output versions to 5 × 10⁻⁴ mbar. Do not assume every TTR 96 RN electrical variant has the same reported range.
Connections, setpoints and controller compatibility
Analogue gauges are offered with FCC68/RJ45 or 9-pin D-sub connectors. Digital RS232/RS485 variants use a 9-pin D-sub. The connector shape alone does not establish the output scaling or pin assignment. Relay and setpoint arrangements also vary with the full order code; select these with the gauge rather than treating every option as freely interchangeable.
The range brochure identifies GRAPHIX as a compatible controller family. Specify the standard or matched output, communication interface, controller input and cable together. GRAPHIX ONE provides one active-gauge channel; TWO and THREE provide more. A gauge is not supplied with a controller or mains supply unless stated in the quotation.
Service and model comparison
The measuring tube and electronics can be replaced separately with matching parts. Deposits and contamination can affect the reading; follow the manual for adjustment and servicing. Compare TTR 91 RN, TTR 97 RN by filament, useful pressure range and process compatibility.
Manufacturer image and installation information
Manufacturer downloads

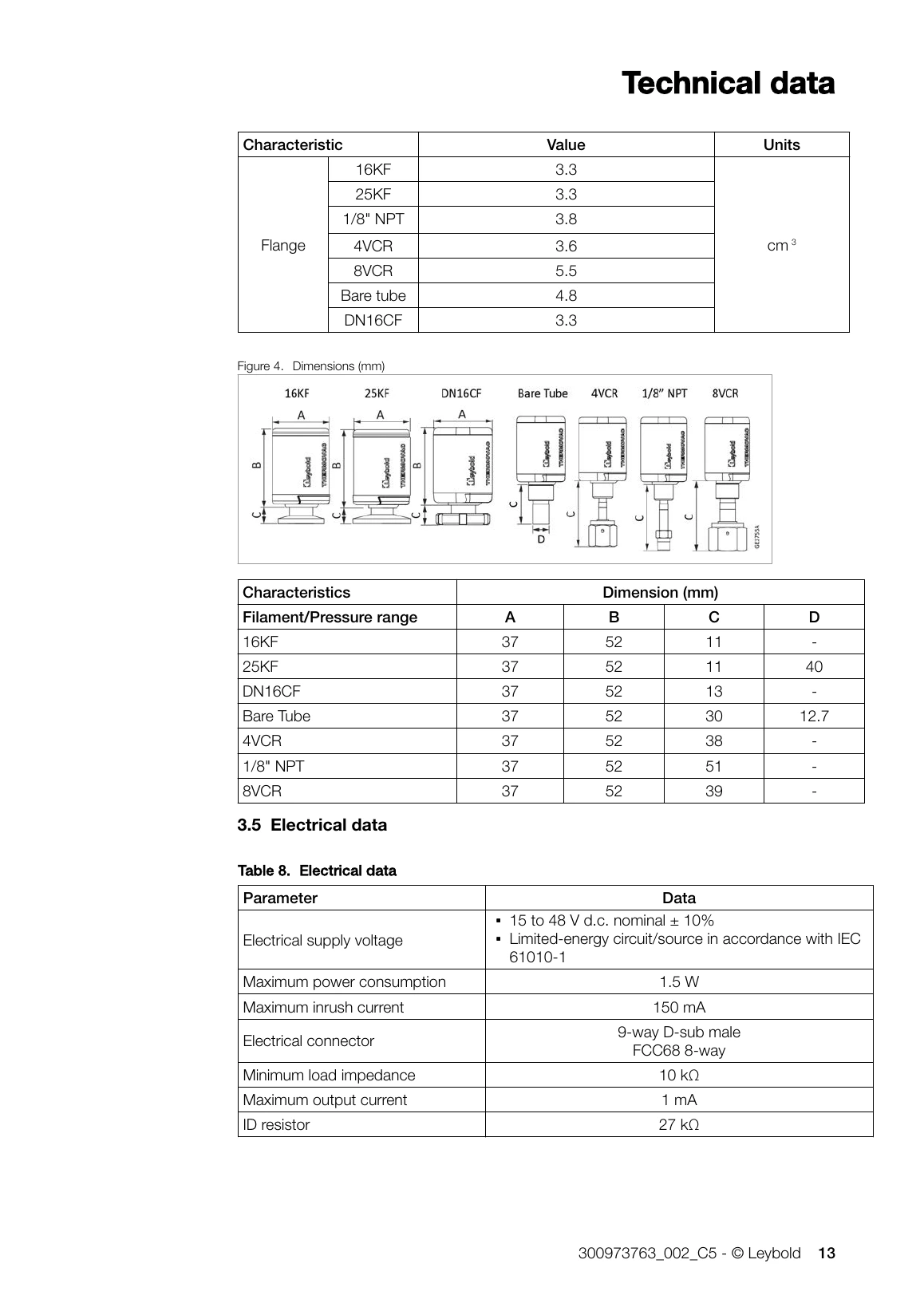

Specification references: 300973763_002_C5, March 2026, pp8–15; THERMOVAC brochure 3610 0331 02, ordering matrix and compatibility table. Use the instructions matching the supplied part number and revision.
Specify your measurement system
For a THERMOVAC TTR 96 RN quotation, send the required pressure range and units, process gas and vapours, connection, ambient and bakeout conditions, output or communication protocol, cable length and quantity. Include the existing gauge/controller part numbers, required switching functions, power supply and calibration test points. Girovac will confirm the configuration, included equipment, price and availability.
Browse vacuum gauges and instrumentation, compare controller options or request gauge calibration support.
Help with selection and operation
Specifications
| Manufacturer | LEYBOLD |
|---|---|
| Equipment type | Vacuum gauges & instrumentation |
| Measurement principle | Active Pirani; gas-dependent thermal conductivity |
| Pressure range | 1 × 10⁻⁴–1000 mbar, standard Leybold analogue output |
| Vacuum connection | DN16 KF, DN25 KF, DN16 CF and other documented connection variants |
| Signal / interface | Logarithmic analogue output; separate RS232 or RS485 versions |
| Maximum power consumption | 1.5 W, analogue version |
| Filament material | Platinum/iridium |
| Typical accuracy | ±15% of reading from 1 × 10⁻³ to 10 mbar; poorer accuracy outside this band |
| Supply voltage | 15–48 V DC nominal ±10%; limited-energy supply |
| Operating temperature | +5 to +60 °C |
| Protection rating | IP40 |
| Bakeout temperature | 150 °C with electronics housing removed |
Calibration and instrument support
Send the gauge model, pressure range and process details for calibration, replacement or compatibility advice.
Before you order
Confirm the range, pressure reference, connection, electrical output and whether cables, a controller or calibration are included.
Availability, lead time and the applicable warranty are confirmed for your quotation. A catalogue listing does not reserve stock.
