Leybold DURADRY DD 160 Dry Screw Vacuum Pump
- Ordering options
- 2 manufacturer codes — see configuration table
The Leybold DRYVAC DV 1200 is a water-cooled dry screw vacuum pump for industrial pumping, suitable process duties and engineered vacuum systems. Maximum pumping speed is 1250 m³/h without gas ballast; select purge, controls and materials for the actual process.

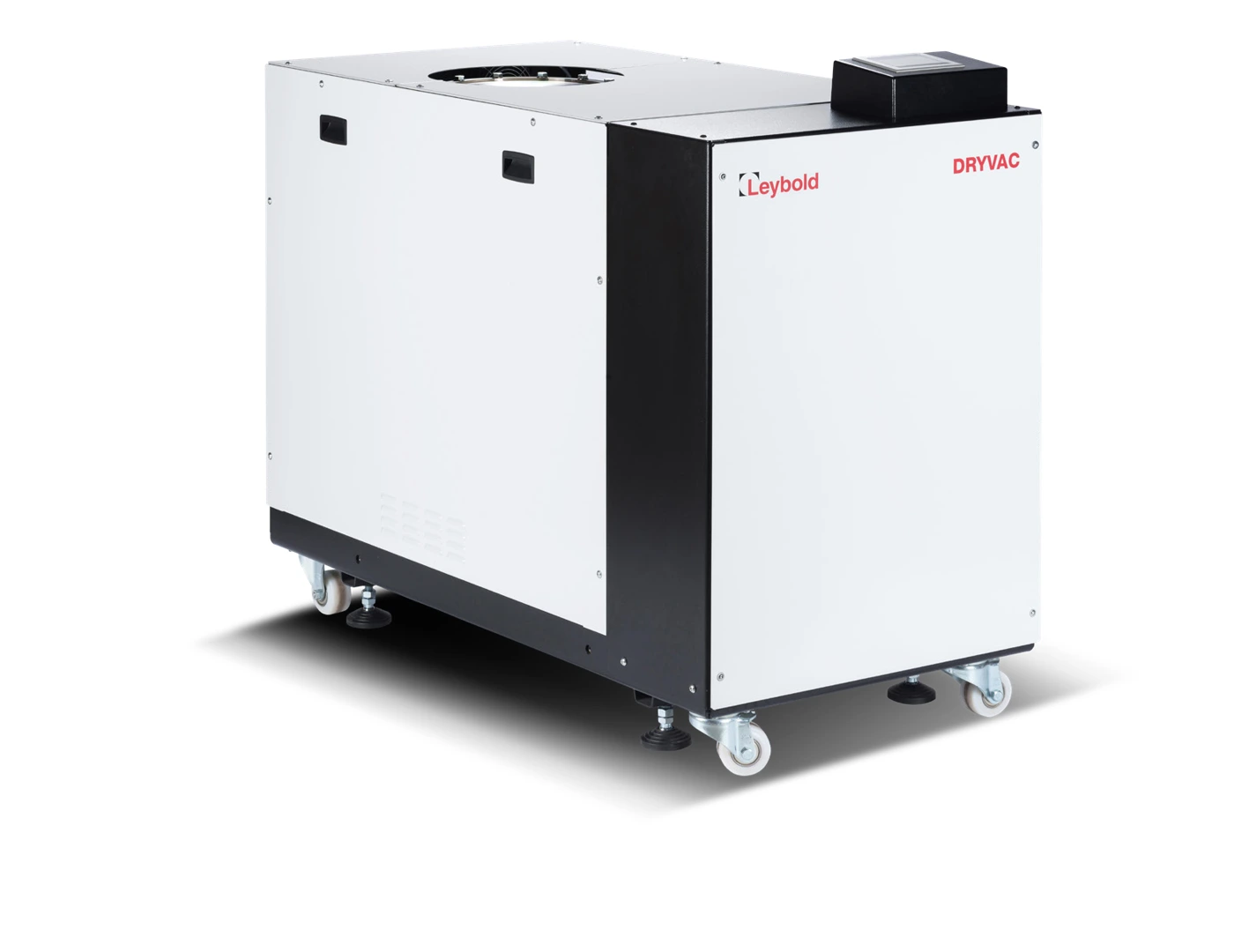

Leybold manufacturer illustration of the DRYVAC DV 1200 / DV 1600 group; ordered controls and fittings may vary.
Part of the Leybold DRYVAC dry screw vacuum pumps family. Compare the range and other model options.
Tell us the configuration and quantity you need. Include your process requirements if you would like help with selection.
View quote listQuote the complete Leybold ordering code when requesting a price. The entries below identify different configurations; voltage, flange, lubricant, cooling and interfaces must match the installation. Availability and supplied equipment are confirmed with the quotation.
| Product code | Manufacturer designation | Configuration detail |
|---|---|---|
| 112120V17-1 | DRYVAC DV 1200 – Profibus | See designation and selected-code documentation |
| 112120V40-2 | DRYVAC DV 1200-i – I/O (LVO 410) | See designation and selected-code documentation |
| 112120V50-2 | DRYVAC DV 1200 S-i – I/O (LVO 210) | See designation and selected-code documentation |
The Leybold DRYVAC DV 1200 is a water-cooled dry screw vacuum pump for industrial pumping, suitable process duties and engineered vacuum systems. Maximum pumping speed is 1250 m³/h without gas ballast; select purge, controls and materials for the actual process.
| Specification | Details |
|---|---|
| Maximum pumping speed | 1250 m³/h without gas ballast; ±5% |
| Ultimate pressure | <0.005 mbar partial pressure, without purge or with exhaust shaft-seal purge only |
| Compression | Dry screw; isolated bearing and gear lubricant |
| Cooling | Water; specified water quality, flow and temperature required |
| Electrical supply | 380–460 V ±10%, three-phase, 50/60 Hz for listed 400 V build |
| Rated motor power | 30 kW; differs from power consumed at ultimate pressure |
| Inlet | DN100 ISO-K |
| Ambient operation | 5–40 °C |
| Specification | Details |
|---|---|
| 112120V17-1 | 400 V class standard configuration; integrated twin-pump assembly |
Dry compression keeps sealing oil out of the pumping chamber. Bearings and gears still require the specified lubricant. Purge and gas ballast protect the pump and help with suitable vapour loads, but change the attainable pressure. Provide gas composition, condensable load, dust and operating pressure before selection.
The manual identifies the lowest rating as ultimate partial pressure. Rotor purge raises it to 0.01 mbar and gas ballast to 0.1 mbar, both ±10%. Inlet shaft-seal purge produces a different pressure again. The process protection requirements determine which operating condition is appropriate.
Specify the 400 V three-phase configuration for the relevant UK industrial supply. Frequency-converter and control arrangements depend on the order reference; rack-mounted “-r” versions are distinct builds. Fieldbus modules, external displays, non-return valves, silencers, inlet protection and booster adapters are selected separately unless included explicitly in the quotation. Select washdown FP or process-specific versions separately.
Provide duty cycle, working pressure, throughput, cooling-water conditions, exhaust back pressure, footprint and available power. Ultimate pressure is a manufacturer test value, not a guarantee at the chamber. Preserve service access and observe the full cooling-water and purge requirements in the instructions.
Compare Leybold VARODRY and NOVADRY when reviewing other dry screw options. Use LEYCON vacuum valves to plan isolation and connections.

Technical source: 300987363_002_C1, technical data pp.25–27 and ordering section. The exact order reference, supplied equipment and availability are confirmed with the quotation.
Explore the Leybold DRYVAC dry screw pumps and Leybold brand guide. Compare vacuum gauges and controllers, plan gauge calibration, or discuss servicing.
For DRYVAC DV 1200 Dry Screw Vacuum Pump, include working pressure, required flow or chamber volume, gas and vapour load, operating hours, electrical supply and connections. For a replacement, send the complete nameplate and serial number so the configuration can be checked.
| Manufacturer | LEYBOLD |
|---|---|
| Equipment type | Dry Screw Vacuum Pumps |
| End / ultimate pressure | <0.005 mbar partial pressure, without purge or with exhaust shaft-seal purge only |
| Electrical supply | 380–460 V ±10%, three-phase, 50/60 Hz for listed 400 V build |
| Cooling | Water; specified water quality, flow and temperature required |
| Maximum pumping speed | 1250 m³/h without gas ballast; ±5% |
| Ordering options | 3 manufacturer codes — see configuration table |
| Compression | Dry screw; isolated bearing and gear lubricant |
| Rated motor power | 30 kW; differs from power consumed at ultimate pressure |
| Inlet | DN100 ISO-K |
| Ambient operation | 5–40 °C |
Send the pump model and part number when asking about a replacement. Compatibility depends on the equipment and operating conditions.
Confirm the exact version, electrical supply and connections. Ask whether oil, filters, fittings, cables or controllers are included or separately specified.
Availability, lead time and the applicable warranty are confirmed for your quotation. A catalogue listing does not reserve stock.
