Single Stage Rotary Pumps

DVP

DVP RC 8M Rotary Vane Vacuum Pump

Nominal pumping capacity

8.5 / 10.2 m³/h (50 / 60 Hz)

End / ultimate pressure

0.1 mbar — absolute

Motor power

0.37 kW (single- or three-phase)

DVP

DVP RC 4M Rotary Vane Vacuum Pump

Nominal pumping capacity

4.3 / 5 m³/h (50 / 60 Hz)

End / ultimate pressure

0.1 mbar — absolute

Motor power

0.37 kW (single- or three-phase)

DVP

DVP RC 50M Rotary Vane Vacuum Pump

Nominal pumping capacity

50 / 60 m³/h (50 / 60 Hz)

End / ultimate pressure

0.05 mbar — absolute

Motor power

1.1 / 1.35 kW (50 / 60 Hz; three-phase)

MIL'S

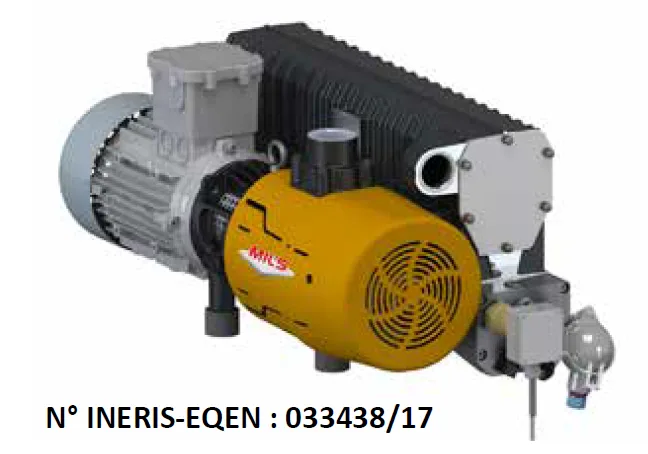

MIL’S EVISA ATEX Rotary Vane Vacuum Pumps

Nominal pumping capacity

68 / 100 / 200 / 300 m³/h at 50 Hz for E65 / E100 / E200 / E300 respectively

End / ultimate pressure

≤ 0.06 mbar at 50 Hz; ATEX HV with gas ballast closed / without gas ballast

Lubricant

MV99S synthetic for the specified ATEX configuration; confirm application-specific requirements

DVP

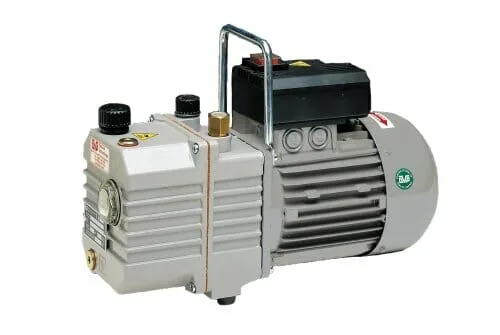

GVPSV4

The GVPSV4 is an oil-lubricated single-stage rotary vane vacuum pump for air-conditioning, refrigeration and laboratory applications. Nominal pumping speed is 4 m³/h at 50 Hz.

DVP

Girovac GVPSV8D Single-Stage Rotary Vane Vacuum Pump

Motor power

0.37 kW

Pumping technology

Single-stage oil-sealed rotary vane

Nominal capacity (50 / 60 Hz)

8.5 / 10.2 m³/h

MIL'S

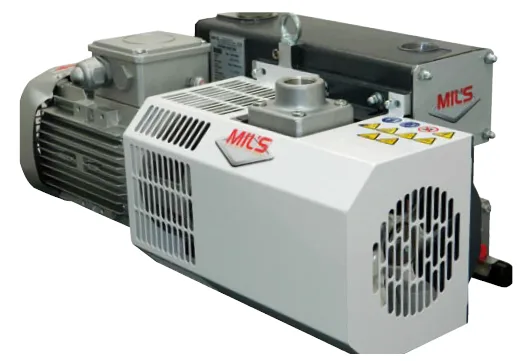

MIL’S EVISA E25.2 HV Rotary Vane Vacuum Pump

Nominal pumping capacity

30 m³/h at 50 Hz; 35.3 m³/h at 60 Hz

PNEUROP pumping speed (50 Hz)

28 m³/h; PNEUROP 6602 at 20 °C

End / ultimate pressure

HV: ≤ 0.5 mbar at 50 Hz; ≤ 0.5 mbar at 60 Hz; without gas ballast

MIL'S

MIL’S EVISA E25.R Rotary Vane Vacuum Pump

Nominal pumping capacity

28 m³/h at 50 Hz; 33 m³/h at 60 Hz

PNEUROP pumping speed (50 Hz)

26 m³/h; PNEUROP 6602 at 20 °C

End / ultimate pressure

Standard: ≤ 2 mbar at 50/60 Hz; HV: ≤ 0.06 mbar at 50 Hz; ≤ 0.08 mbar at 60 Hz; without gas ballast

MIL'S

MIL’S EVISA E40.2 HV Rotary Vane Vacuum Pump

Nominal pumping capacity

47.7 m³/h at 50 Hz; 57.2 m³/h at 60 Hz

PNEUROP pumping speed (50 Hz)

41.5 m³/h; PNEUROP 6602 at 20 °C

End / ultimate pressure

HV: ≤ 0.5 mbar at 50 Hz; ≤ 0.5 mbar at 60 Hz; without gas ballast

MIL'S

MIL’S EVISA E40.R Rotary Vane Vacuum Pump

Nominal pumping capacity

44 m³/h at 50 Hz; 53 m³/h at 60 Hz

PNEUROP pumping speed (50 Hz)

42 m³/h; PNEUROP 6602 at 20 °C

End / ultimate pressure

Standard: ≤ 2 mbar at 50/60 Hz; HV: ≤ 0.06 mbar at 50 Hz; ≤ 0.06 mbar at 60 Hz; without gas ballast

MIL'S

MIL’S EVISA E65.R Rotary Vane Vacuum Pump

Nominal pumping capacity

68 m³/h at 50 Hz; 81.6 m³/h at 60 Hz

PNEUROP pumping speed (50 Hz)

65 m³/h; PNEUROP 6602 at 20 °C

End / ultimate pressure

Standard: ≤ 3 mbar at 50/60 Hz; HV: ≤ 0.06 mbar at 50 Hz; ≤ 0.06 mbar at 60 Hz; without gas ballast

MIL'S

MIL’S EVISA E100.R HV Rotary Vane Vacuum Pump

Nominal pumping capacity

100 m³/h at 50 Hz; 120 m³/h at 60 Hz

PNEUROP pumping speed (50 Hz)

96 m³/h; PNEUROP 6602 at 20 °C

End / ultimate pressure

Standard: ≤ 3 mbar at 50/60 Hz; HV: ≤ 0.06 mbar at 50 Hz; ≤ 0.06 mbar at 60 Hz; without gas ballast
