LEYBOLD
Leybold BOURDONVAC Vacuum Gauge
- Ordering options
- 2 manufacturer codes — see configuration table
Girovac equipment catalogue
Dial & Capsule Vacuum Gauges
Dial and capsule vacuum gauges for local pressure indication, with relative and absolute options from Girovac.
Showing all 10 results
LEYBOLD
Leybold Capsule Gauge Vacuum Gauge
- Ordering options
- 2 manufacturer codes — see configuration table
SM Gauge
SM Gauge SMBDPG Bluetooth Digital Logging Gauge
- Range selection
- Supplier range options extend from −1 to 1000 bar; specify the required span
- Accuracy
- <0.2% of full scale
- Data storage
- 27,000 records per test; up to 10 tests
Industrial Vacuum Dial Gauges
- Measuring range
- 0 to −1 bar gauge
- Pressure reference
- Relative to atmosphere
- Dial diameter
- 100 or 160 mm
Liquid-filled Vacuum Gauges
- Measuring range
- 0 to −1 bar gauge
- Pressure reference
- Relative to atmosphere
- Dial diameter
- 40, 50, 63, 100 or 160 mm
Small Diameter Vacuum Gauges
- Measuring range
- 0 to −1 bar gauge
- Pressure reference
- Relative to atmosphere
- Dial diameter
- 40, 50, 63 or 80 mm
Stainless Steel Vacuum Gauges
- Measuring range
- 0 to −1 bar gauge
- Pressure reference
- Relative to atmosphere
- Dial diameter
- 40, 50, 63, 100, 160, 200 or 250 mm
Low Vacuum Capsule Gauges
- Measuring range
- 0 to −600 mbar gauge
- Pressure reference
- Relative to atmosphere
- Dial diameter
- 63, 100 or 160 mm
Chemical-resistant Absolute Capsule Vacuum Gauges
- Measurement principle
- Mechanical capsule
- Pressure reference
- Absolute
- Power supply
- Not required

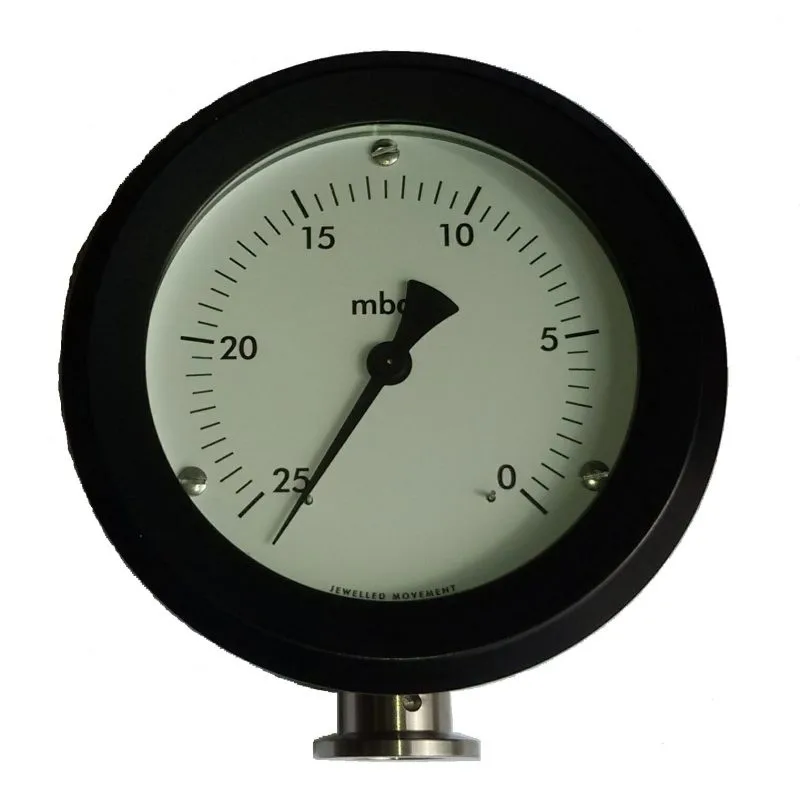

CR2 0–25 mbar Absolute Vacuum Dial Gauge
- Measuring range
- 0–25 mbar
- Pressure reference
- Absolute
- Accuracy at 20°C
- ±2% FSD (±0.5 mbar)
Choose the pressure reference first
A negative-pressure dial measures relative to atmosphere. An absolute capsule gauge measures residual pressure against an evacuated reference. Choose the reference your process requires before comparing dial size or connection.Specify the installation
Send the operating pressure, gas, temperature, thread or flange, mounting position and accuracy requirement. For a replacement, include the old model and a photograph.All vacuum instrumentation · Gauge calibration serviceExplore brand-specific ranges
Use a family guide to compare models and understand the range before selecting a product.
Need help choosing equipment?
Send the operating requirements and process details. For a replacement, include the existing model and connection.
Compare selected equipment
Compare the stated conditions as well as the values. A missing specification is not a zero rating; confirm suitability with Girovac.
