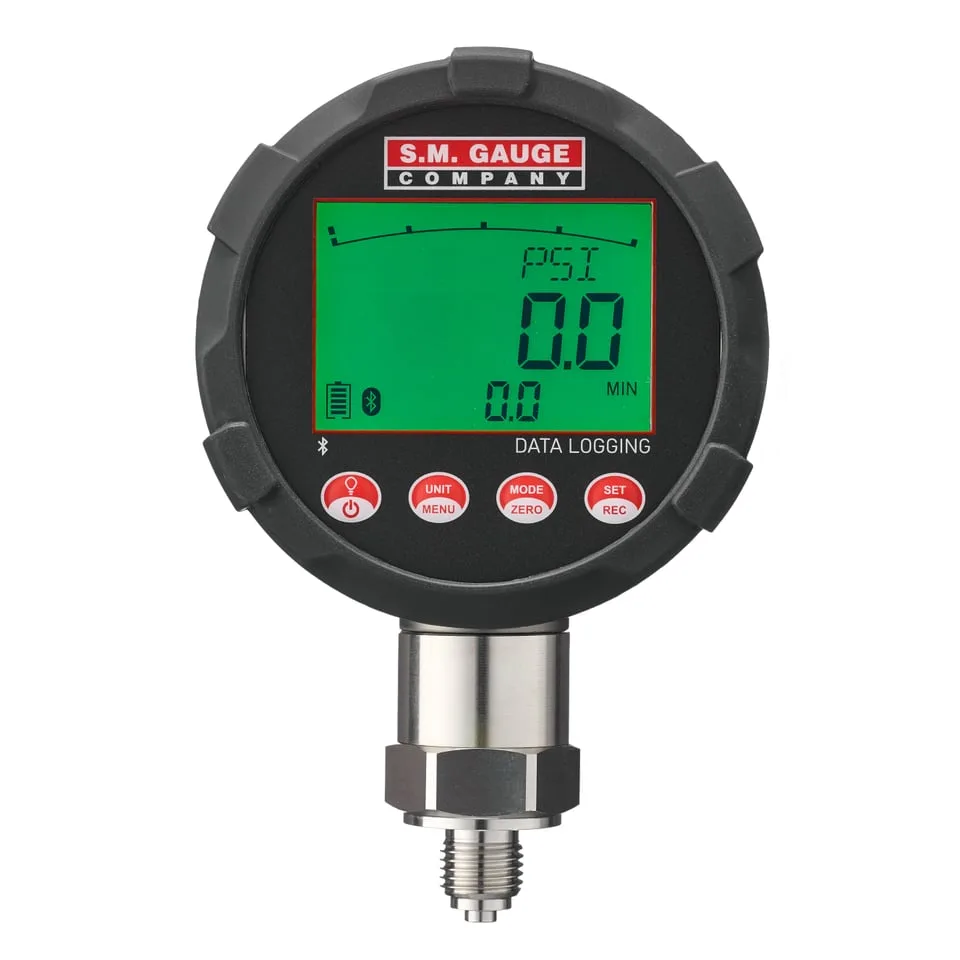

SM Gauge SMBDPG Bluetooth Digital Logging Gauge
The SMBDPG is a portable digital pressure gauge with Bluetooth data logging. It suits service checks where you need to read pressure locally and keep a record on a mobile device.
- Range selection
- Supplier range options extend from −1 to 1000 bar; specify the required span
- Accuracy
- <0.2% of full scale
- Data storage
- 27,000 records per test; up to 10 tests
- Maximum test duration
- 48 hours per test
Price and availability
Tell us the configuration and quantity you need. Include your process requirements if you would like help with selection.
View quote listProduct details
The SMBDPG is a portable digital pressure gauge with Bluetooth data logging. It suits service checks where you need to read pressure locally and keep a record on a mobile device.
Specify the vacuum version
For vacuum service, tell us the required negative-pressure range and whether the system also sees positive pressure. We will confirm the selected span, connection and media compatibility before quoting. The full supplier range is a choice of configurations, not one gauge measuring −1 to 1000 bar.
Choose by the pressure you need to resolve
This type of pressure gauge is useful for rough-vacuum checks. To follow small absolute pressures during a deeper pump-down, compare our dedicated vacuum meters.
Ask about calibration documentation for the selected range.
Ask Girovac
Tell us the model, quantity and required delivery date. We will confirm the configuration, price and lead time with your quotation. Contact our team or call 01692 660 117.
Specifications
| Manufacturer | SM Gauge |
|---|---|
| Equipment type | Dial & Capsule Vacuum Gauges |
| Range selection | Supplier range options extend from −1 to 1000 bar; specify the required span |
| Accuracy | <0.2% of full scale |
| Data storage | 27,000 records per test; up to 10 tests |
| Maximum test duration | 48 hours per test |
| Fastest recording interval | 100 ms |
| App | Watchlog Bluetooth |
| Power | Three 1.5 V AAA batteries |
| Protection | IP67 |
Parts, consumables and workshop support
Send the pump model and part number when asking about a replacement. Compatibility depends on the equipment and operating conditions.
Before you order
Confirm the exact version, electrical supply and connections. Ask whether oil, filters, fittings, cables or controllers are included or separately specified.
Availability, lead time and the applicable warranty are confirmed for your quotation. A catalogue listing does not reserve stock.
What to check in your quotation · Delivery · Returns and faults
