GVPDK20

With a Nominal Pumping Speed of 20M³/Hr @ 50Hz

This lubricated rotary vane dual stage pump is designed to be used in a wide range of industrial and laboratory applications.

with NW25 for Inlet and Outlet connections.

Characteristics

Pumping Speed	400l/Min
Ultimate Pressure	Gas Ballast Closed	≤9x10-4 Mbar
Ultimate Pressure	Gas Ballast Open	7x10-2Mbar
Power Input	220vAC 1Ph 50Hz
Full Load Power	0.75KW (0.5HP)
Motor Speed	1700rpm
Inlet and Outlet	NW25
Oil Capacity	1500 cc (1.5l)
Weight	29Kg
Ambient Operating Temp Range	7-40°C

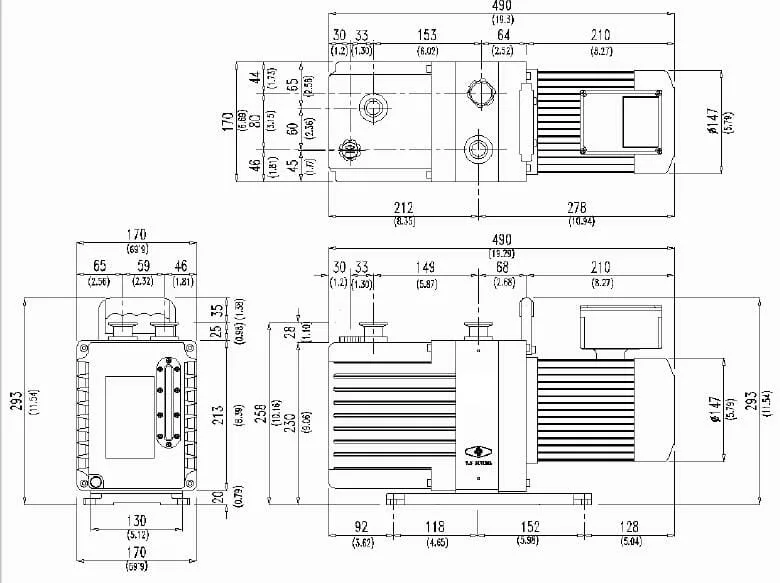

Overall Dimensions (mm)	170 (W) x 490 (L) x 293 (H)
