GVPDK10
With a Nominal Pumping Speed of 10M³/Hr 200L/Min
This lubricated rotary vane dual stage pump is designed to be used in a wide range of industrial and laboratory applications.
with NW25 for Inlet and Outlet connections. the pump can achieve a level of vacuum of 9×10-4Mbar
Similar in design to the E2M8 vacuum pump and with a similar performance to the RV8 & TRIVAC D 8 B
- Rugged construction
- Quiet running
- Easy to service
Characteristics
Pumping Speed | 200l/Min | |
Ultimate Pressure | Gas Ballast Closed | ≤9x10-4 Mbar |
Gas Ballast Open | 7x10-2Mbar | |
Power Input | 220vAC 1Ph 50Hz | |
Full Load Power | 0.4KW (0.5HP) | |
Motor Speed | 1700rpm | |
Inlet and Outlet | NW25 | |
Oil Capacity | 600 cc (0.6l) | |
Weight | 23.5Kg | |
Ambient Operating Temp Range | 7-40°C | |

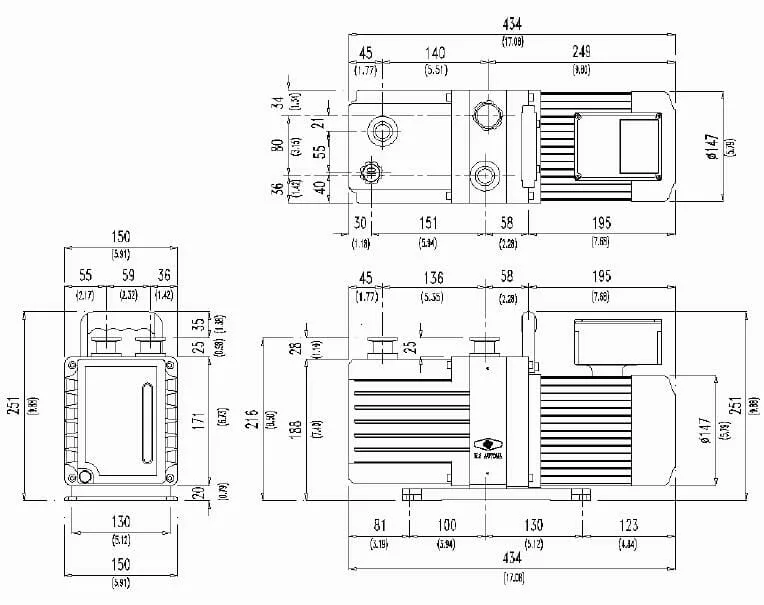

Overall Dimensions (mm) | 150 (W) x 434 (L) x 251 (H) |
