GVPDIF 4

With a pumping speed of 570l/sec.

The Diffusion Pump is widely used in Industrial and Research applications.

Vacuum measurements as low as 1.5×10-7 mbar can be achieved with this pump.

Working fluids are typically Silicone oil DC704 or 702 or Polyphenyl Ethers Santovac 5 or 9

Diffusion pumps are normally backed by either lubricated rotary vane pumps or Scroll pumps.

Water cooling is used to control the Diffusion Pump’s temperature.

Recommended Vacuum Backing Pump GVPDK5.

Characteristics

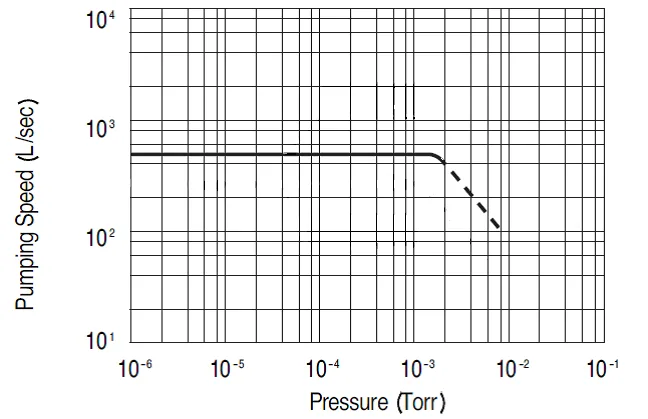

Pumping Speed	Without Baffle	L/Sec	570
	With Baffle		310
Ultimate Pressure with Baffle		Mbar	1.5 x 10^-7
Heater Power			220v 1Ph 700W
Warm up Time		min	20
Oil Filling			DC704,150cc
Cooling			Water Cooling
Oil Backstream		Mg/cm²/min	7.5 x 10^-4

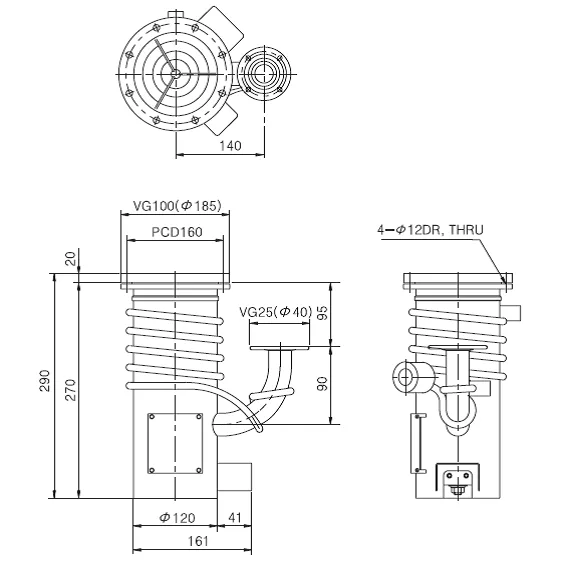

Inlet Size			VG-100
Outlet Size			VG-25
Weight		Kg	10
