GVPDK90

With a Nominal Pumping Speed of 90M³/Hr @ 50Hz

This lubricated rotary vane dual stage pump is designed to be used in a wide range of industrial and laboratory applications.

with NW40 for Inlet and Outlet connections.

Characteristics

Pumping Speed	1800l/Min
Ultimate Pressure	Gas Ballast Closed	≤9x10-4 Mbar
Ultimate Pressure	Gas Ballast Open	7x10-2Mbar
Power Input	220vAC/380vAC 3Ph 50/60Hz
Full Load Power	3.7KW (5.0HP)
Motor Speed	1700rpm
Inlet and Outlet	NW40
Oil Capacity	6200 cc (6.2l)
Weight	120Kg
Ambient Operating Temp Range	7-40°C

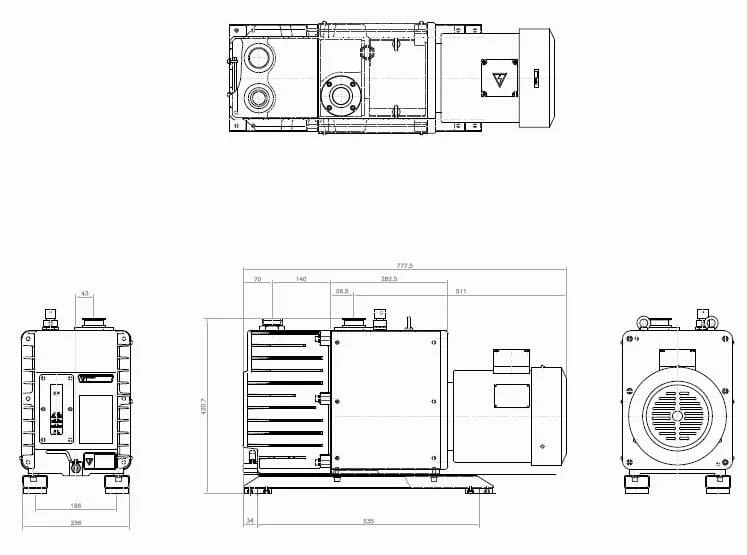

Overall Dimensions (mm)	256 (W) x 777.5 (L) x 420 (H)
