GVPDK50
With a Nominal Pumping Speed of 50M³/Hr @ 50Hz
This lubricated rotary vane dual stage pump is designed to be used in a wide range of industrial and laboratory applications.
- Rugged construction
- Quiet running
- Easy to service
Characteristics
Pumping Speed | 1000l/Min | |
Ultimate Pressure | Gas Ballast Closed | ≤9x10-4 Mbar |
Gas Ballast Open | 7x10-2Mbar | |
Power Input | 220vAC/380vAC 3Ph 50/60Hz | |
Full Load Power | 1.5KW (2.0HP) | |
Motor Speed | 1700rpm | |
Inlet and Outlet | NW40 | |
Oil Capacity | 4500 cc (4.5l) | |
Weight | 80Kg | |
Ambient Operating Temp Range | 7-40°C | |

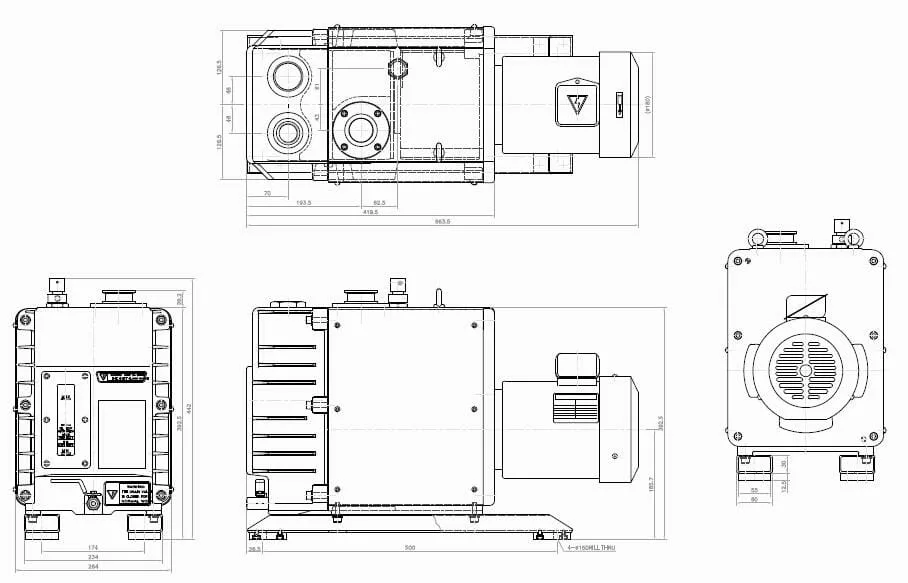

Overall Dimensions (mm) | 264 (W) x 663.5 (L) x 442 (H) |
