GVPDIF 6

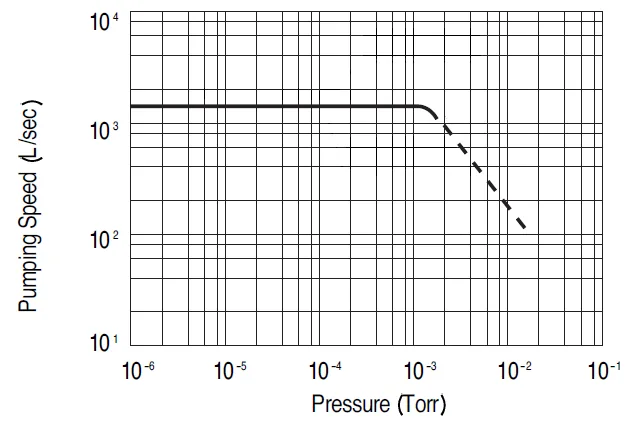

With a pumping speed of 1,200l/sec.

The Diffusion Pump is widely used in Industrial and Research applications.

Vacuum measurements as low as 1.5×10-7 mbar can be achieved with this pump.

Working fluids are typically Silicone oil DC704 or 702 or Polyphenyl Ethers Santovac 5 or 9

Diffusion pumps are normally backed by either lubricated rotary vane pumps or Scroll pumps.

Water cooling is used to control the Diffusion Pump’s temperature.

Recommended Vacuum Backing Pump GVPDK20.

Characteristics

Pumping Speed	Without Baffle	L/Sec	1200
	With Baffle		660
Ultimate Pressure with Baffle		Mbar	1.5 x 10^-7
Heater Power			220v 1Ph 1000W
Warm up Time		min	20
Oil Filling			DC704,340cc
Cooling			Water Cooling
Oil Backstream		Mg/cm²/min	2.0 x 10^-4

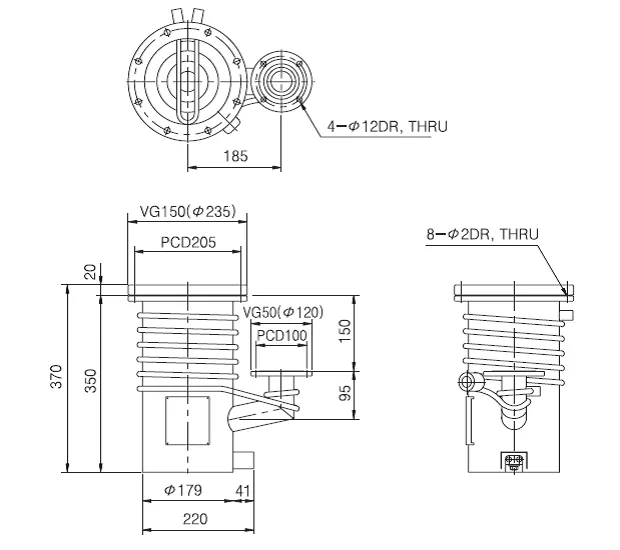

Inlet Size			VG-150
Outlet Size			VG-50
Weight		Kg	20
