MIL’S EVISA E600.R Rotary Vane Vacuum Pump

Product details

MIL’S EVISA E600.R: selecting the right configuration

The E600.R is the largest EVISA model in this set of Girovac listings. Its detailed table gives 634.9 m³/h nominal flow at 50 Hz, commonly rounded to 635 m³/h in the range overview. The PNEUROP rating is 581 m³/h, and the European version has a 13 kW motor and 14 litre oil capacity.

EVISA uses oil-lubricated rotary vane technology with an integrated exhaust oil-mist filter. Tell Girovac the working pressure, process gas and operating duty so the pump and supporting equipment can be checked together.

End vacuum and gas-ballast options

Standard E600.R: ≤ 3 mbar without gas ballast at 50 and 60 Hz. The E600.R HV version is listed at ≤ 0.1 mbar at 50 Hz and ≤ 0.1 mbar at 60 Hz without gas ballast. Do not apply the HV figure to a standard pump.

With gas ballast fully open, the listed end vacuum is ≤ 5 mbar for the standard version and ≤ 1 mbar for HV, at both frequencies. Gas-ballast settings affect vapour handling and the pressure achieved. Specify the gas-ballast arrangement in the quotation.

Performance curves and pump-down time

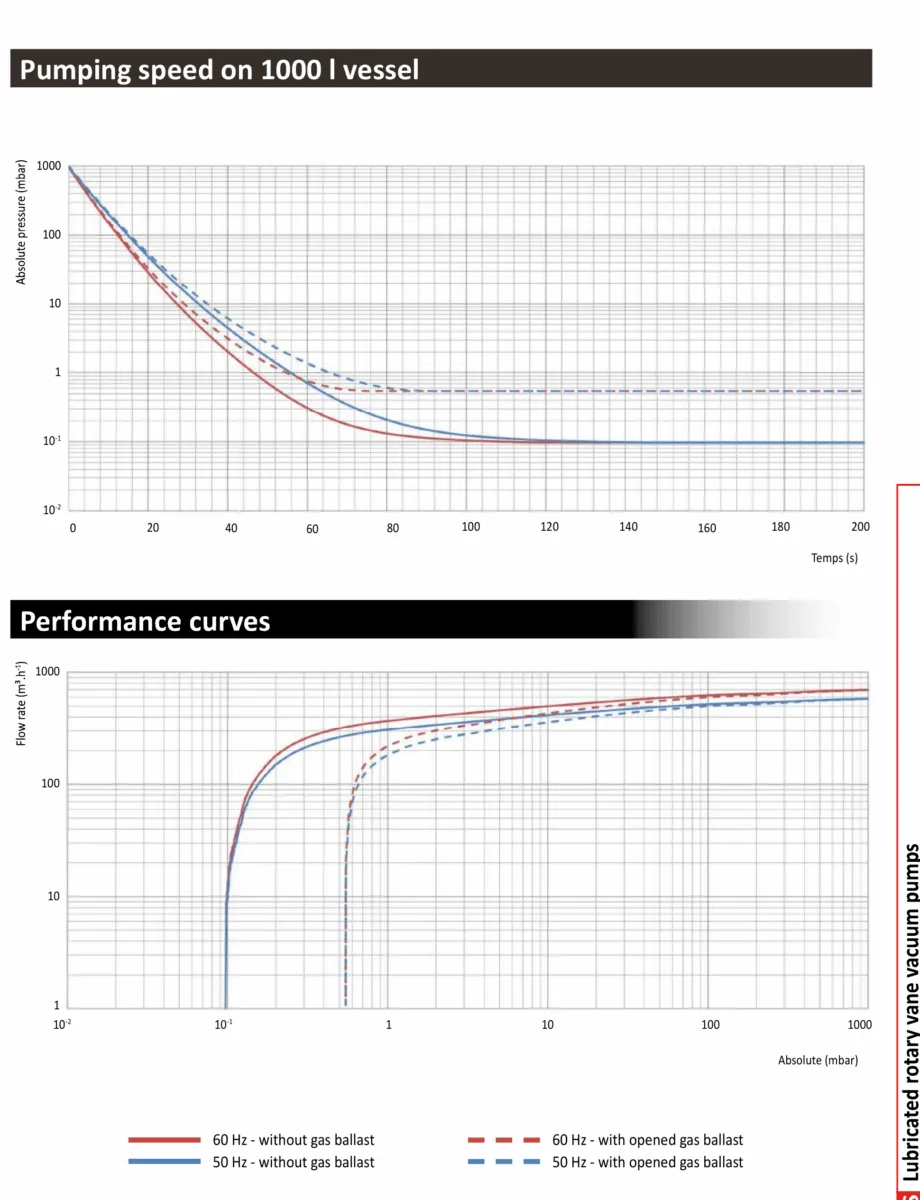

The manufacturer plots below show evacuation of a 1,000 litre vessel and pumping speed against absolute inlet pressure. Follow the original 50 or 60 Hz line and gas-ballast legend. The low-pressure curves describe HV performance; they do not give a standard E600.R pump an HV pressure rating.

At 50 Hz, the catalogue gives 308 m³/h at 1 mbar for HV duty, compared with 581 m³/h PNEUROP pumping speed. Measurements are specified to PNEUROP 6602 at 20 °C. Actual evacuation time also depends on vessel conditions, pipework, leaks and process gas load. The graphs are vacuum-performance references, not electrical power-consumption curves.

The plotted open-gas-ballast end point and the tabulated fully-open end-vacuum value are not identical in this source. Use the table above for the stated rating and confirm the gas-ballast configuration when selecting from the curves.

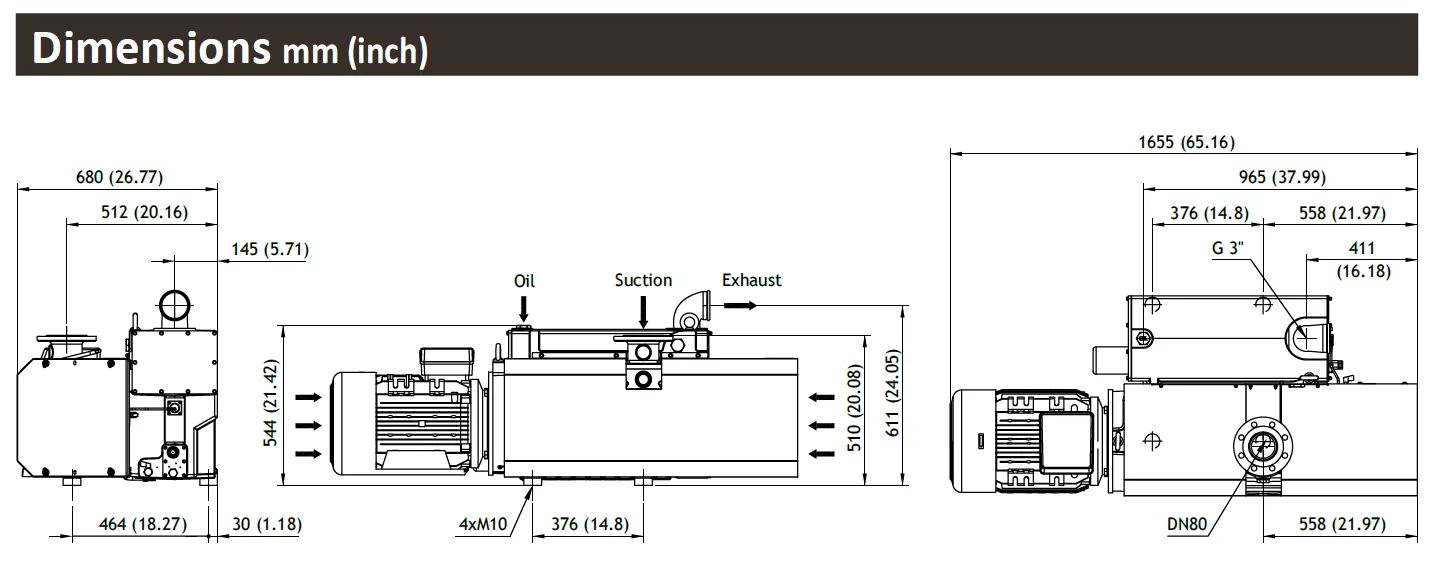

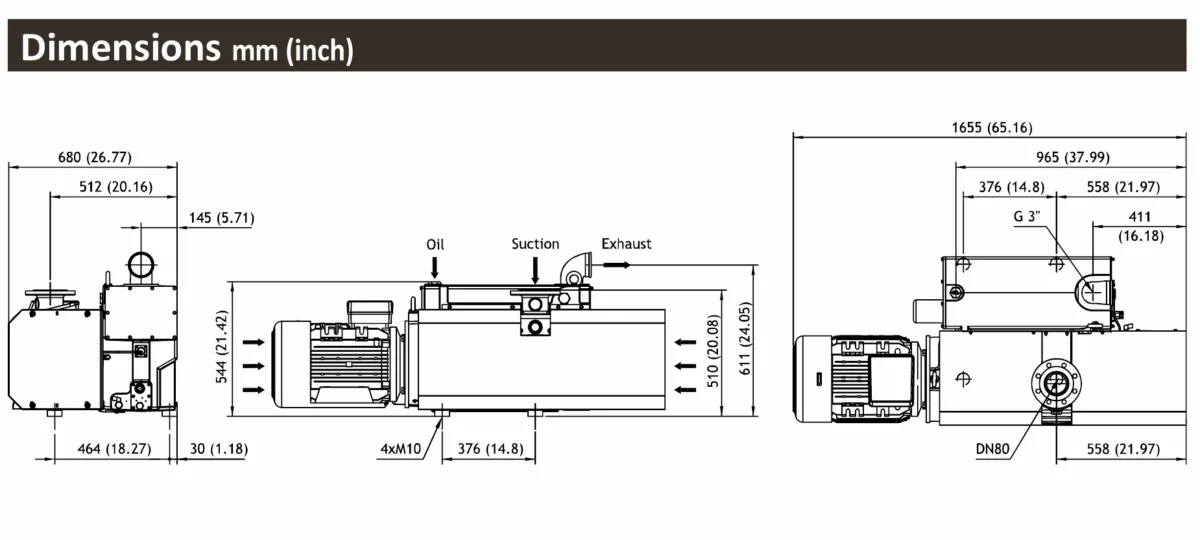

Dimensions, connections and electrical supply

The European version uses three-phase 400/690 v, 50 hz, with a 13 kW motor at 1,000 min⁻¹. The listed inlet is DN 80 / 3-inch BSP and the outlet is 3-inch BSP. Other regional versions can have different motors, voltages, connections and weights.

Check the drawing against the precise motor and pump reference being supplied. Allow access to the oil fill, drain, filters and cooling-air paths; the pump outline is not a service-clearance allowance. For a replacement, send a nameplate photograph and the existing installation dimensions.

Oil, service parts and accessories

The catalogue specifies 14 litres of MV99S 100% synthetic oil for the standard lubrication arrangement. An oxygen-service version needs its own approved lubrication and configuration; do not assume the standard oil specification applies.

The model section lists usual-maintenance kits at 3,000 hours and preventive-maintenance kits at 12,000 hours. Use the operating instructions and actual process conditions to set the service schedule, and quote the serial number when ordering a kit. Inlet filtration, liquid protection and gas-ballast options should be matched to the gas stream and installation.

Ask about EVISA servicing · Read the selection guides

Manufacturer datasheet and references

Open the MIL’S EVISA E600.R section in the manufacturer catalogue (PDF, 6.4 MB). Printed pages 54–57 cover technical data, dimensions, references, accessories and performance curves. The PDF viewer starts at page 53; its file page count differs from the printed numbering by one.

Specification basis: MIL’S EVISA / EVISA ATEX catalogue supplied to Girovac. Figures reproduced from the manufacturer document. Listing expanded September 2026; confirm current model configuration, availability and applicable instructions with your quotation.

Questions about this model

What is the pumping speed of the EVISA E600.R?

Nominal flow is 634.9 m³/h at 50 Hz and 769.2 m³/h at 60 Hz. PNEUROP pumping speed is 581 and 696 m³/h respectively. Use the performance at your working pressure when sizing the pump.

Is every EVISA E600.R an HV pump?

No. This listing covers standard and HV configurations. The standard version is listed at ≤ 3 mbar without gas ballast; the HV version reaches a different stated end vacuum. Specify the variant when enquiring.

Which oil does the EVISA E600.R use?

The supplied catalogue specifies MV99S 100% synthetic oil and a 14 litre charge for the standard lubrication arrangement. Confirm the exact version and do not apply this specification to oxygen service.

What should I send for a quotation?

Include the complete model and variant, working pressure, gas or vapour load, vessel volume and required cycle time. Add the electrical supply, connection details and any filters or controls. For an existing pump, include its serial number and a nameplate photo.
