EVISA 500.R
With a Nominal Pumping Speed of 513M³/Hr @ 50Hz, 616M³/Hr @ 60Hz
The lubricated rotary vane pumps EVISA are designed to be used in a wide range of industrial and healthcare applications.
They can run continuously from atmospheric pressure to ultimate vacuum.
They are very quiet and extremely robust.
- Single Stage Vacuum Pump with the end vacuum of 1.10×10-1 mbar for the E500.R HV
- Single Stage Vacuum Pump with the end vacuum of ≤3 mbar for the E500.R
- High pumping speed even at low pressure
- Integrated Oil Mist Filter on the Exhaust
- IE3 Motor
Technical Characteristics E500.R HV
50Hz | 60Hz | ||
Nominal Flow Rate M3/Hr - CFM | 513 – 302 | 616 – 362.6 | |
PNEUROP pumping speed M3/Hr - CFM | 496 – 291.6 | 595 – 350.2 | |

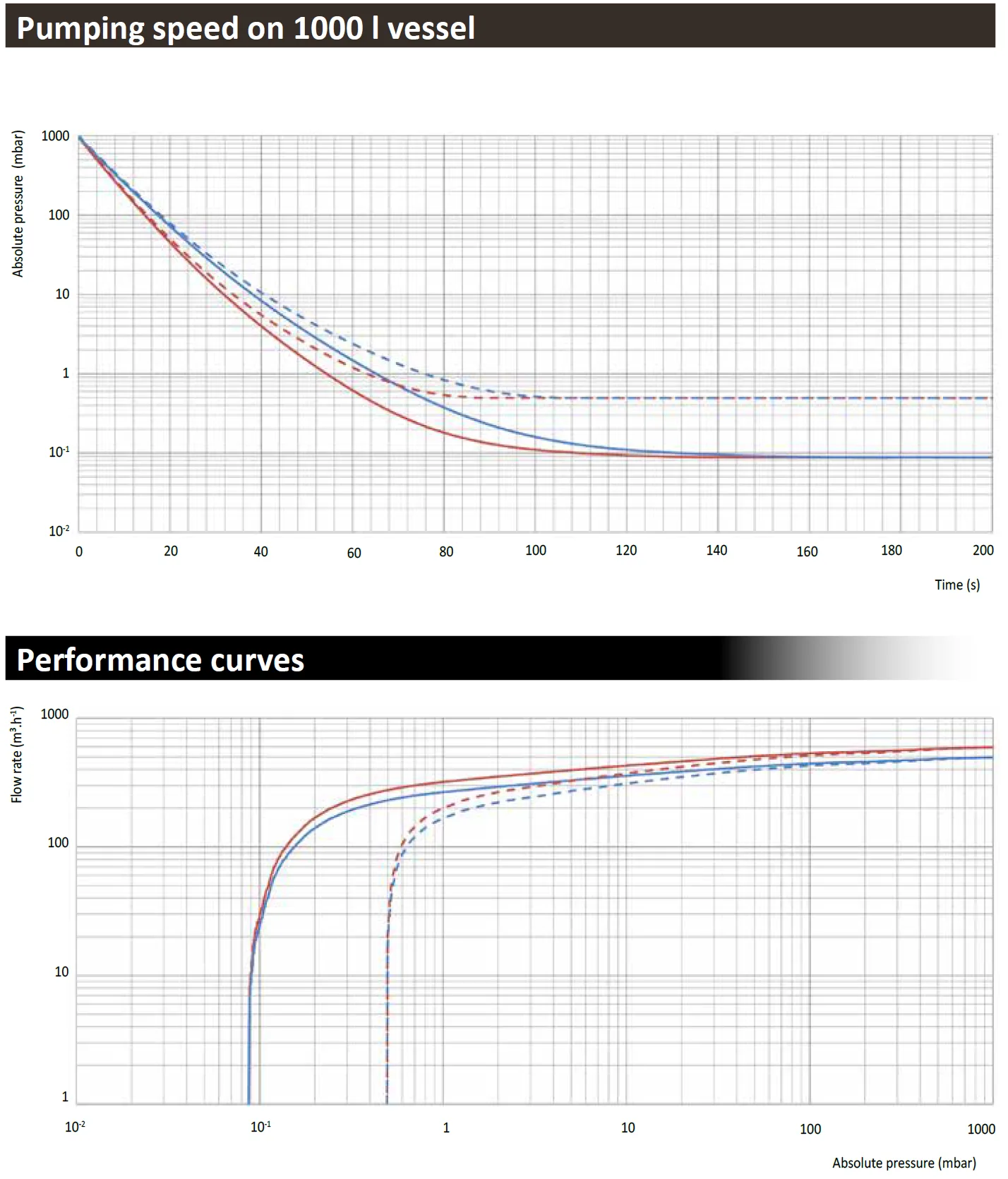

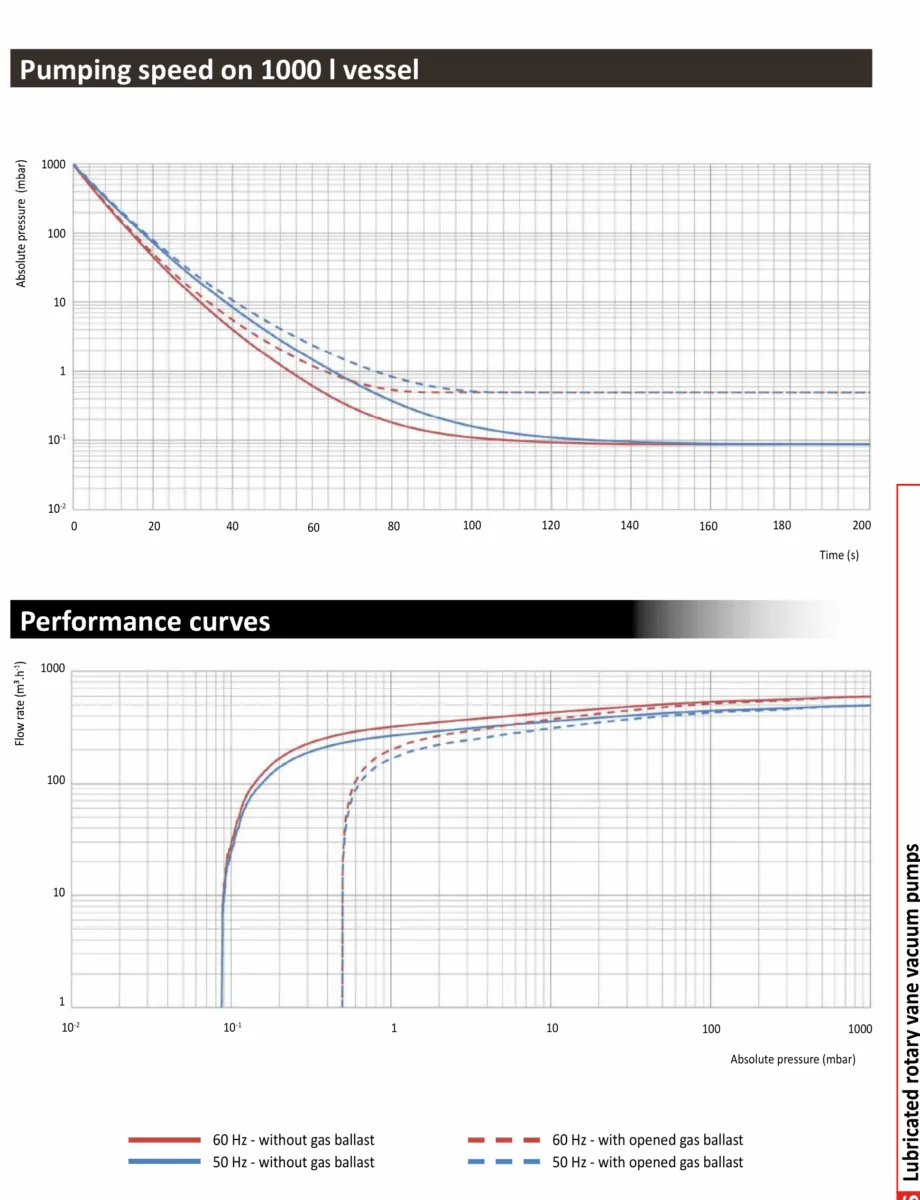

Pumping Speed @ 1mbar inlet Pressure | 266 – 156.6 | 320 – 188.3 | |
Without Gas Ballast | End Vacuum mbar – Torr | ≤1.1x10-1 – 8.1x10-2 | ≤1.1x10-1 – 8.1x10-2 |
Fully opened gas Ballast | End Vacuum mbar – Torr | ≤1.0 – 0.75 | ≤1.0 – 0.75 |
Water Vapour Max Pressure mbar – Torr | 11.3 – 8.4 | 12.2 -9.1 | |
Water Vapour Capacity Kg.h-1 | 2.7 | 3.5 |
Technical Characteristics E500.R
Without Gas Ballast | End Vacuum mbar – Torr | ≤3.0 – 2.3 | ≤3.0 – 2.3 |
Fully opened gas Ballast | End Vacuum mbar – Torr | ≤5.0 – 3.8 | ≤5.0 – 3.8 |
Water Vapour Max Pressure mbar – Torr | 7.9 – 5.9 | 8.5 – 6.4 | |
Water Vapour Capacity Kg.h-1 | 1.9 | 2.4 |
100% Synthetic Oil | MV99S | MV99S |
Oil Capacity L – Qt | 14 – 14.8 | 14 – 14.8 |
Noise Level dB(A) | 73 | 77 |
Measurement according to PNEUROP 6602 specification – 20oC
