DVP VB 315 Claw Vacuum Pump
DVP VB 315 claw vacuum pump — 315 m³/h dry claw vacuum pump, ultimate 150 mbar. UK supply, genuine spares & servicing from Girovac. Price on application.
- Nominal pumping capacity
- 315 m³/h (50 Hz) / 380 m³/h (60 Hz)
- End / ultimate pressure
- 150 mbar — absolute
- Motor power
- 5.5 kW at 50 Hz / 6.6 kW at 60 Hz
- Noise level
- 71 dB(A) at 50 Hz / 74 dB(A) at 60 Hz — UNI EN ISO 2151, K 3 dB
Price and availability
Tell us the configuration and quantity you need. Include your process requirements if you would like help with selection.
View quote listProduct details

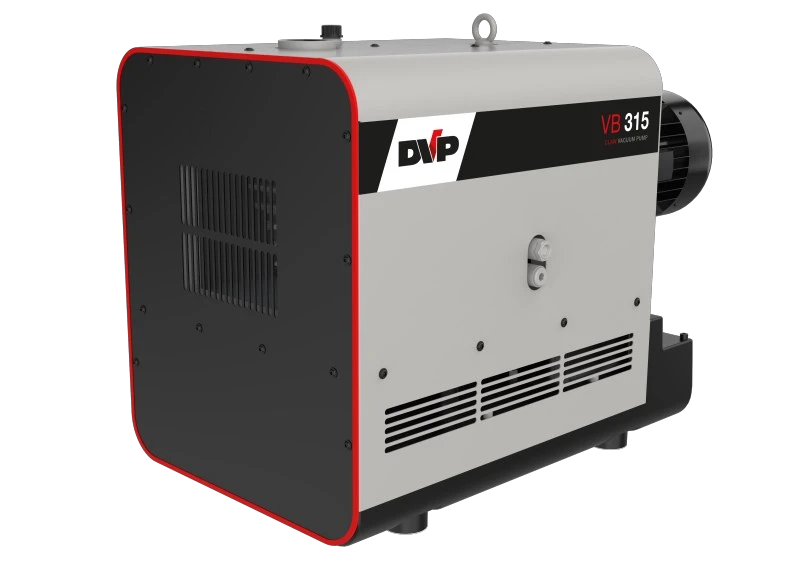

The DVP VB 315 is a dry claw vacuum pump from DVP Vacuum Technology. It pumps 315 m³/h and reaches an ultimate pressure of 150 mbar absolute. Girovac supplies the VB 315 in the UK, stocks genuine DVP spare parts, and services DVP pumps in-house. Price on application.
DVP VB 315 at a glance
| Pumping speed | 315 m³/h (50 Hz) / 380 m³/h (60 Hz) |
|---|---|
| Ultimate pressure | 150 mbar |
| Motor power | 5.5 kW at 50 Hz / 6.6 kW at 60 Hz |
| Weight | 305 kg |
| Price | On application |
What is the DVP VB 315?
The VB 315 is part of DVP’s claw pump range — 315 m³/h dry claw vacuum pump, ultimate 150 mbar. The pumping chamber runs dry. Follow the manufacturer instructions for the separately lubricated drive components and service requirements.guide to the types of vacuum pump for how dry pumps compare.
How does a claw vacuum pump work?
A claw pump uses two claw-shaped rotors that turn in opposite directions without ever touching each other or the housing. Nothing rubs, so there are no vanes to wear and no oil in the pumping chamber – which means low maintenance, clean dry air and steady performance under continuous industrial duty.
What is the DVP VB 315 used for?
DVP’s datasheet for the VB 315 does not list specific applications. Pumps in DVP’s claw pump range are used across vacuum packaging, handling and lifting, printing, laboratory and general industrial vacuum duties. If you tell us the process, volume and target pressure, we will confirm whether the VB 315 is the right choice.
DVP VB 315 technical specifications
| Nominal capacity (pumping speed) | 315 m³/h (50 Hz) / 380 m³/h (60 Hz) |
|---|---|
| Ultimate pressure (absolute) | 150 mbar |
| Motor power | 5.5 kW at 50 Hz / 6.6 kW at 60 Hz |
| Noise level (UNI EN ISO 2151, K 3 dB) | 71 dB(A) at 50 Hz / 74 dB(A) at 60 Hz |
| Weight | 305 kg |
| Pump type | Dry claw |
| DVP part number | 9816004 |
| Manufacturer | DVP Vacuum Technology |
Figures are taken from DVP’s published datasheet for the VB 315 (part number 9816004). Noise is measured to UNI EN ISO 2151. Need the pumping speed at your actual working pressure rather than the nominal figure? Ask us for the curve.
DVP VB 315 supply, spares and servicing from Girovac
Established in 1983, with more than 40 years in the industrial vacuum sector, Girovac supplies, services and stocks spares for DVP vacuum pumps from our workshop in North Walsham, Norfolk. We can supply the VB 315 new, source genuine DVP spares, and repair, service or recondition DVP pumps.
The claw pumping chamber has no rotary vanes. Keep the inlet protection in good condition and follow the manufacturer schedule for the lubricated drive components.
We do not list prices online. Every VB 315 is quoted to your application, duty cycle and phase requirement, including delivery to anywhere in the UK. Contact us for a quote on price, availability and technical advice.
Frequently asked questions
What vacuum does the DVP VB 315 reach?
The VB 315 reaches an ultimate pressure of 150 mbar absolute, with a nominal pumping speed of 315 m³/h (50 Hz) / 380 m³/h (60 Hz).
Does the DVP VB 315 need oil?
The pumping chamber runs dry, but this does not mean the complete pump has no lubricant. Follow the VB 315 instructions for its separate drive lubrication and inlet-filter maintenance. A claw pump has no rotary vanes to replace.
What motor does the DVP VB 315 have?
The VB 315 is rated at 5.5 kW at 50 Hz / 6.6 kW at 60 Hz and weighs 305 kg. Tell us whether you need single-phase or three-phase when you enquire.
How much does the DVP VB 315 cost?
Girovac quotes the VB 315 on application rather than listing a price, because cost depends on phase, accessories and delivery. Contact us and we will come back with a firm price and lead time.
Can Girovac service or repair a DVP VB 315?
Yes. Established in 1983, with more than 40 years in the industrial vacuum sector, Girovac supplies, services and stocks spares for DVP vacuum pumps from our workshop in North Walsham, Norfolk. We service, repair and recondition DVP pumps including the VB 315, and stock genuine spares.
More DVP options and documentation
Download the original DVP VB 315 manufacturer datasheet (PDF). Check the model columns, supply frequency and operating conditions before comparing values.
What other DVP equipment should I consider?
Depending on the duty, compare DVP PA 155, DVP PA 315, DVP CPAP Duplex. These are different configurations, not automatic replacements. Check working pressure, flow, gas load and installation requirements. Browse the complete DVP range for more options.
How should I measure vacuum on this installation?
For rough-vacuum duties, review industrial vacuum dial gauges; for pump-down measurement into lower pressures, compare Pirani vacuum transducers. Match the instrument range and gas compatibility to the operating pressure. We can also quote vacuum gauge calibration at the relevant test points.
Can Girovac help with a complete system?
Send the required pressure, simultaneous demand and control requirements when discussing industrial vacuum systems. Consider pumps, pipework, filtration and instrumentation together.
Specifications
| Manufacturer | DVP |
|---|---|
| Equipment type | Claw Pumps |
| Nominal pumping capacity | 315 m³/h (50 Hz) / 380 m³/h (60 Hz) |
| End / ultimate pressure | 150 mbar — absolute |
| Motor power | 5.5 kW at 50 Hz / 6.6 kW at 60 Hz |
| Noise level | 71 dB(A) at 50 Hz / 74 dB(A) at 60 Hz — UNI EN ISO 2151, K 3 dB |
| Weight | 305 kg |
| DVP part number | 9816004 |
Parts, consumables and workshop support
Send the pump model and part number when asking about a replacement. Compatibility depends on the equipment and operating conditions.
Before you order
Confirm the exact version, electrical supply and connections. Ask whether oil, filters, fittings, cables or controllers are included or separately specified.
Availability, lead time and the applicable warranty are confirmed for your quotation. A catalogue listing does not reserve stock.
