NW CENTERING RING S/S VITON® NW10 – NW50
The NW Centring S/S Viton® is the seal made between the flanges ranging from the NW10 -NW50.
These are all compatible with the EDWARDS and LEYBOLD products.
To check the flange sizes click here to see the NW sizes.
CENTERING S/S VITON

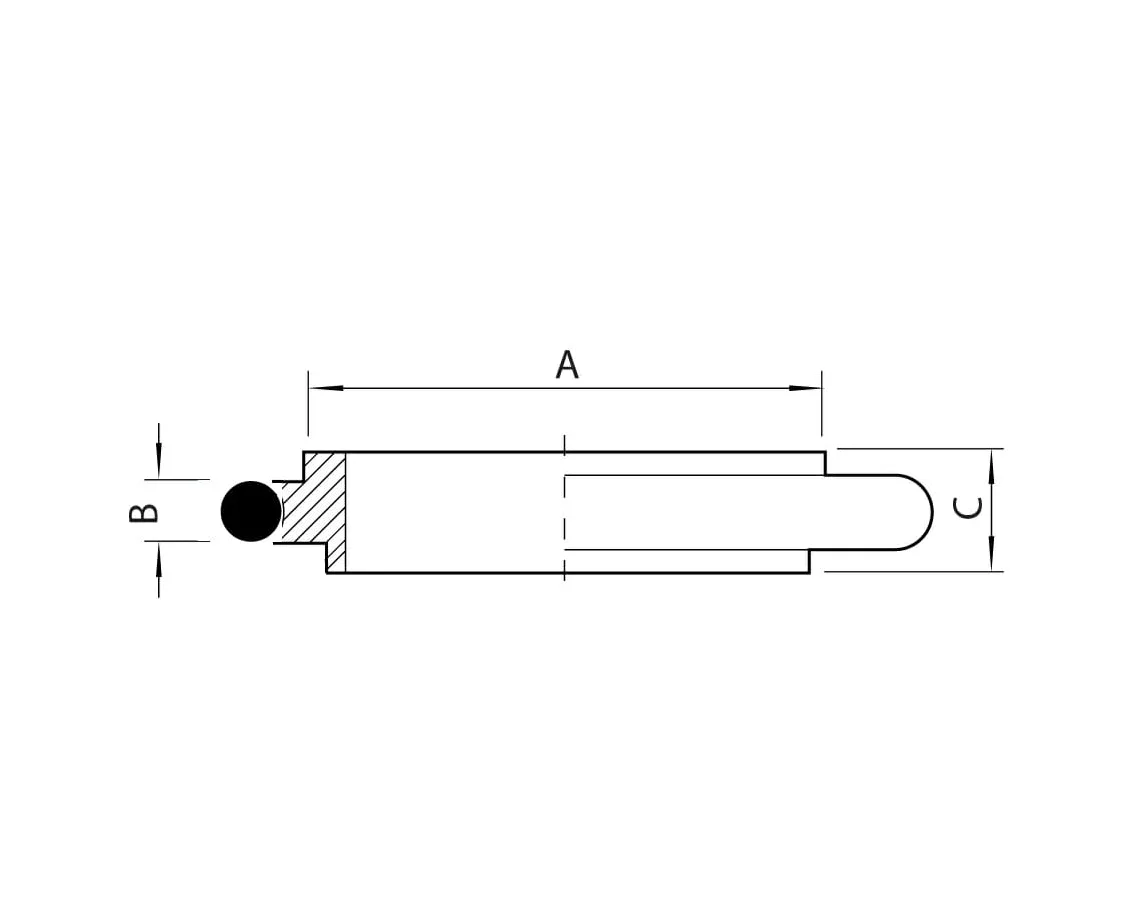

A | B | C | GIROVAC | EDWARDS | LEYBOLD | |
NW10 | 12 | 3.9 | 8 | GK10CRVS | C10511395 | 883 21 |
NW16 | 17 | 3.9 | 8 | GK16CRVS | C10512395 | 883 46 |
NW25 | 26 | 3.9 | 8 | GK25CRVS | C10514395 | 883 47 |
NW40 | 41 | 3.9 | 8 | GK40CRVS | C10516395 | 883 48 |
NW50 | 52 | 3.9 | 8 | GK50CRVS | C10517395 | 883 25 |
