GVPDK30
With a Nominal Pumping Speed of 30M³/Hr @ 50Hz
This lubricated rotary vane dual stage pump is designed to be used in a wide range of industrial and laboratory applications.
with NW40 for Inlet and Outlet connections.
- Rugged construction
- Quiet running
- Easy to service
Characteristics
Pumping Speed | 600l/Min | |
Ultimate Pressure | Gas Ballast Closed | ≤9x10-4 Mbar |
Gas Ballast Open | 7x10-2Mbar | |
Power Input | 220vAC/380vAC 3Ph 50Hz | |
Full Load Power | 1.5KW (2HP) | |
Motor Speed | 1700rpm | |
Inlet and Outlet | NW40 | |
Oil Capacity | 2700 cc (2.7l) | |
Weight | 51.5Kg | |
Ambient Operating Temp Range | 7-40°C | |

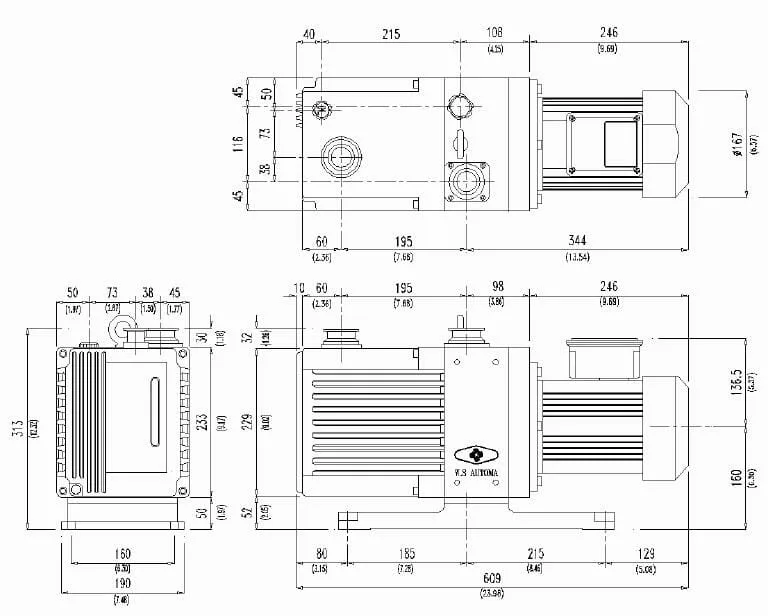

Overall Dimensions (mm) | 206 (W) x 609 (L) x 313 (H) |
