GVPDIF 22

With a pumping speed of 13,000l/sec.

The Diffusion Pump is widely used in Industrial and Research applications.

Vacuum measurements as low as 1.5×10-7 mbar can be achieved with this pump.

Working fluids are typically Silicone oil DC704 or 702 or Polyphenyl Ethers Santovac 5 or 9

Diffusion pumps are normally backed by either lubricated rotary vane pumps or Scroll pumps.

Water cooling is used to control the Diffusion Pump’s temperature.

Recommended Vacuum Backing Pump GVPDK90

Characteristics

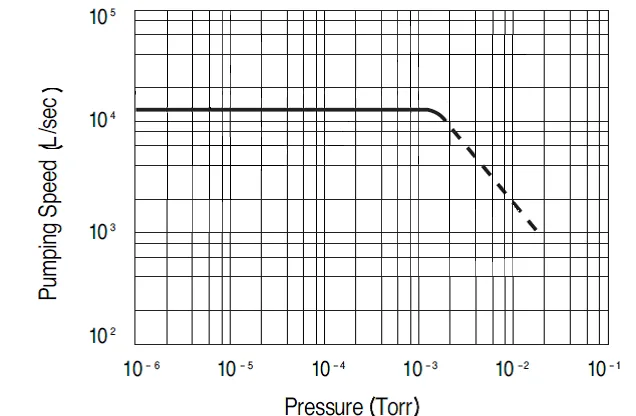

Pumping Speed	Without Baffle	L/Sec	13000
	With Baffle		7200
Ultimate Pressure with Baffle		Mbar	1.5 x 10^-7
Heater Power			220v 1Ph 10Kw
Warm up Time		min	45
Oil Filling			DC704,4000cc
Cooling			Water Cooling
Oil Backstream		Mg/cm²/min	2.0 x 10^-4

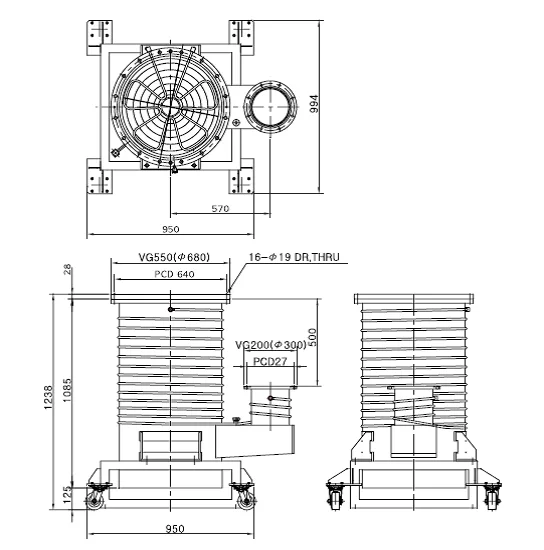

Inlet Size			VG-550
Outlet Size			VG-200
Weight		Kg	430
