GVD20 INDUSTRIAL FREEZE DRYER

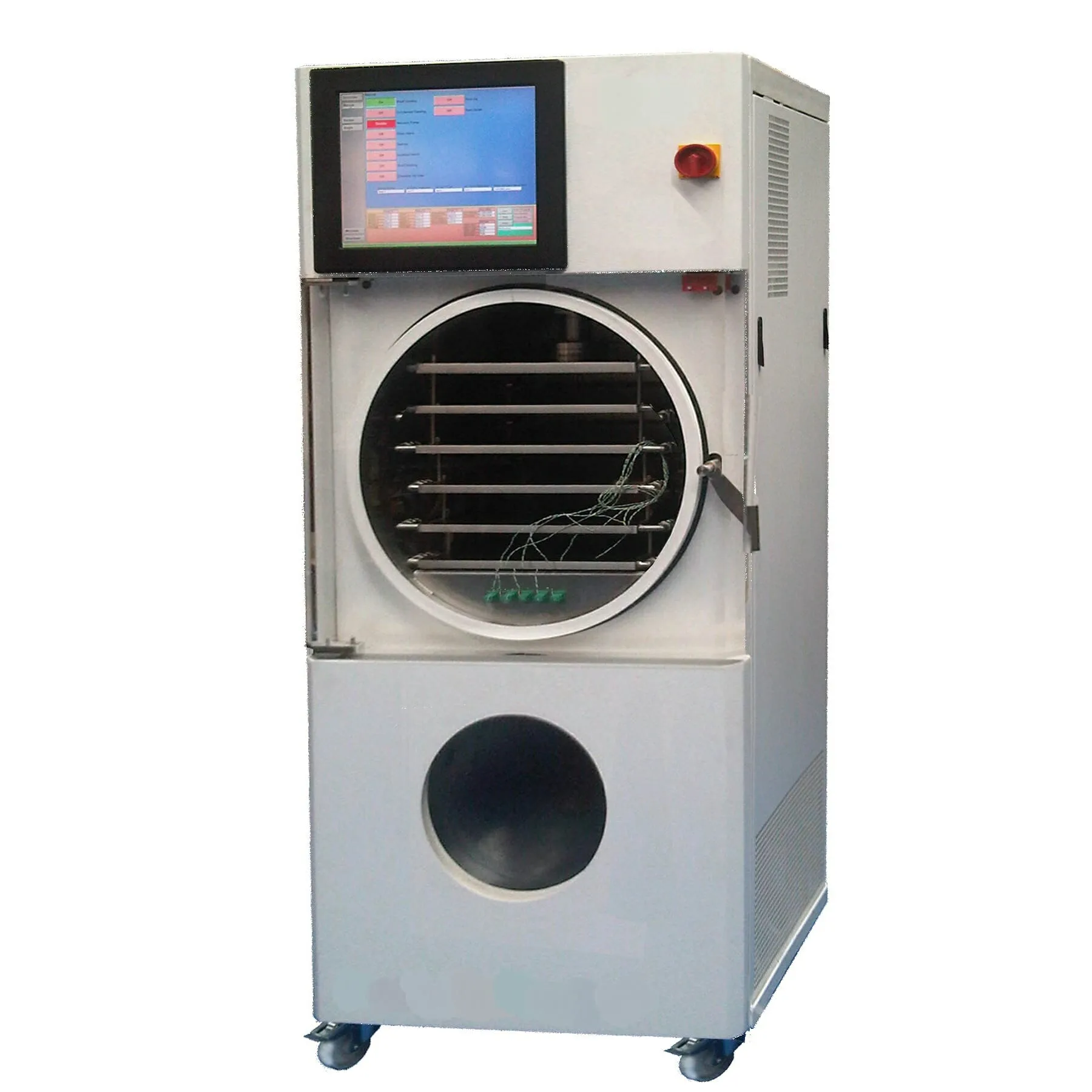

The GVD20 freeze dryer is a general-purpose, high-performance pilot unit featuring stainless steel shelves with internal circulating heat transfer fluid for heating and cooling, enabling it to meet the stringent demands of the pharmaceutical and biotechnology industries. The key features of this unit are its drying options using up to five shelves with a total area of 1M2, shelf spacing of 60mm, and a hydraulic vial stoppering device. The GVD20 is also ideal for product development and small scale production activities.
There are two control options available. The first is the manual touch keypad with LCD vacuum, temperature displays and manually operated valves. This system comes with RS232 computer application that can log data and control step changes, giving it a simplified computer led programmed profile to follow.
The second is the fully automatic version where a touch screen SCADA system takes full control of the whole freeze drier.
Technical Data | GVD20 | GVD20-L |
Ice Condenser Capacity | 25Kg | |
Ice Condenser Performance | 15Kg/ 24Hr | |
Ice Condenser Temperature | -55oC | -85oC |
Defrost | Hot Gas | Hot Gas & Electric |
Number of Shelves | 5+1 | |
Shelf Ares | 1M2 | |
Shelf Spacing | Min 6Cm | |
Shelf Temperature | -45oC to +60oC | -65oC to +60oC |
Shelf Temp Accuracy | Max±1oC | |
Cooling System | Air Cooled | |
Refrigeration | Single Stage | Cascade |
Isolation Valve | Ø15Cm | |
Unit Dimensions | 189 x 95 100Cm (H x W x D) | |
Weight | 825Kg | |
Refrigerant | R449A | R449A & R23 |
