DVP LC 305HV Oil-lubricated Vacuum Pump
The DVP LC 305HV is a oil-lubricated vacuum pump. The documented capacity is 305 / 365 m³/h (50 / 60 Hz). Total final pressure is 0.1 mbar (gas ballast closed). Ask Girovac to match the configuration to your duty and electrical supply.
- Nominal pumping capacity
- 305 / 365 m³/h (50 / 60 Hz)
- End / ultimate pressure
- 0.1 mbar (gas ballast closed) — absolute
- Inlet / outlet connections
- 2 inch G / 2 inch G
- Motor power
- 7.5 / 9 kW (50 / 60 Hz; three-phase)
Price and availability
Tell us the configuration and quantity you need. Include your process requirements if you would like help with selection.
View quote listProduct details
Overview
The DVP LC 305HV is a oil-lubricated vacuum pump. The documented capacity is 305 / 365 m³/h (50 / 60 Hz). Total final pressure is 0.1 mbar (gas ballast closed). Ask Girovac to match the configuration to your duty and electrical supply.
Choosing the right configuration
Oil-lubricated rotary vane pumps need the correct oil grade, clean filters and a duty within the documented operating limits. Specify the gas load and working pressure as well as nominal flow. Model suffixes matter when ordering a replacement pump or lubricant.
The HV suffix identifies a specific documented variant. Compare the vapour-handling conditions and oil specification, not just nominal flow.
Technical specifications
| Specification | Manufacturer data |
|---|---|
| Model | DVP LC 305HV |
| Nominal pumping capacity | 305 / 365 m³/h (50 / 60 Hz) |
| Total final pressure (absolute) | 0.1 mbar (gas ballast closed) |
| Motor power | 7.5 / 9 kW (50 / 60 Hz; three-phase) |
| Lubricant | DVP SW100 |
| Continuous operating pressure range (absolute) | 400–0.1 mbar |
| Inlet / outlet connections | 2 inch G / 2 inch G |
Values apply to the stated model and conditions. Where two figures are shown, follow the 50 / 60 Hz order in the label. Confirm the motor, connections and supplied accessories in your quotation.
Manufacturer documentation

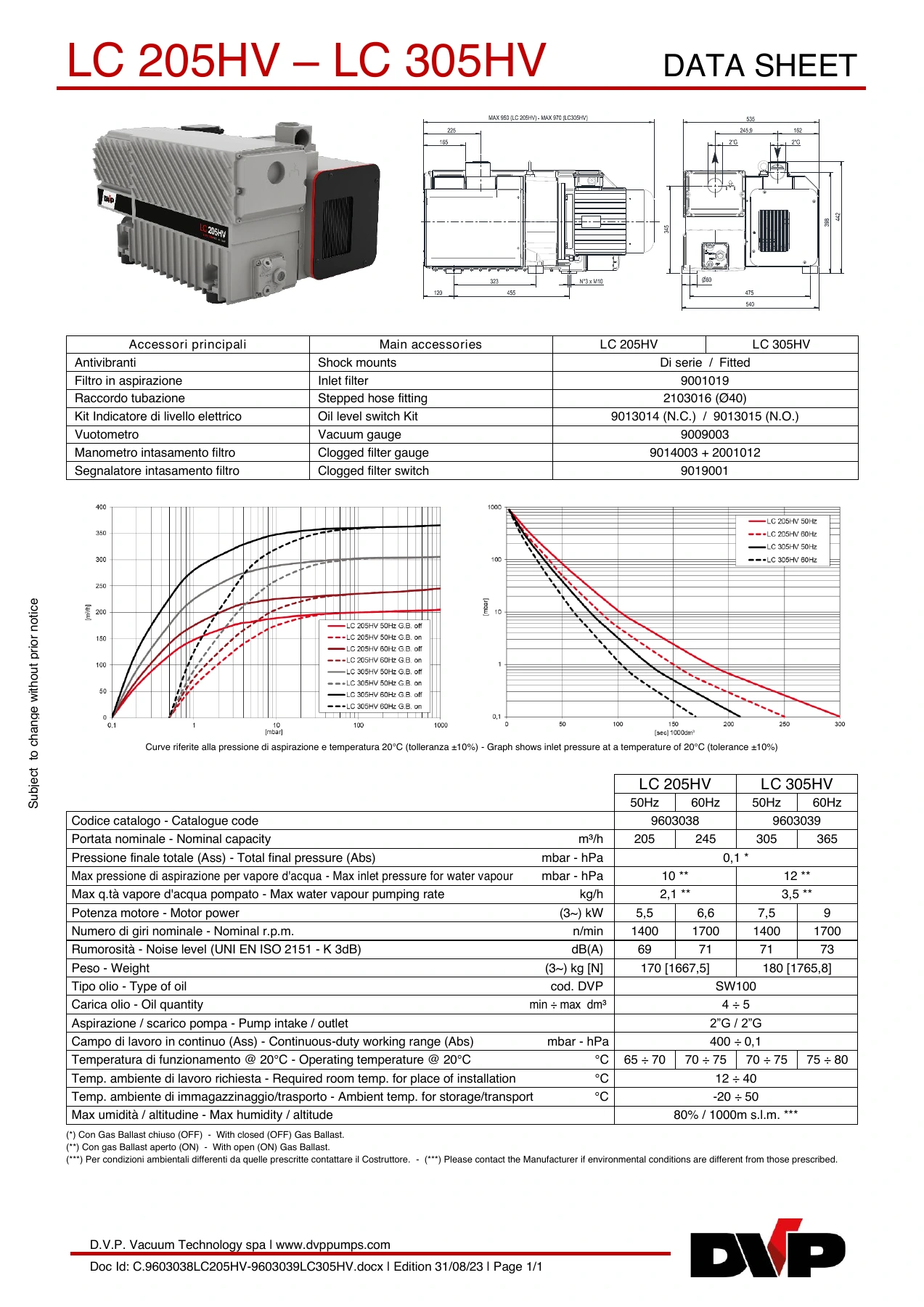

Download the original DVP LC 305HV datasheet (PDF). The original document includes its revision information and any additional model-specific conditions.
Frequently asked questions
Which related DVP models should I compare?
Compare DVP LC 106 Kzero, DVP LC 151 Kzero, DVP LC 205. Check the working pressure, capacity and motor rather than choosing by the model number alone. Browse the full DVP range.
Which gauge should I use with this pump or system?
For suitable rough-vacuum duties, compare industrial vacuum dial gauges. Where a display, output or control signal is needed, review digital vacuum meters and vacuum transducers. Measure at the chamber or point of use when that is the pressure your process depends on. Gauge calibration can be specified around the operating range and required test points.
How do I select oil and service parts?
Use the complete model, serial number and manufacturer oil specification. This datasheet specifies DVP SW100. Different suffixes and gear compartments can require different lubricants. See vacuum oils and greases and send the nameplate details when requesting parts.
What information does Girovac need for a quotation?
Send the model, required flow at working pressure, gas or vapour, operating hours, electrical supply and any installation restrictions. For a replacement, include a nameplate photograph. We will confirm the proposed configuration, price and lead time before ordering.
Can this equipment be considered for a larger vacuum installation?
Discuss the complete duty when reviewing industrial vacuum systems. A central installation also needs matched controls, filtration, pipework and pressure measurement; pump capacity alone is not the system specification.
Discuss your application
Call 01692 660 117 or use the product enquiry form. Give us the model and working conditions so we can check the equipment and supporting accessories together.
Specifications
| Manufacturer | DVP |
|---|---|
| Equipment type | Single Stage Oil Filled Pumps |
| Nominal pumping capacity | 305 / 365 m³/h (50 / 60 Hz) |
| End / ultimate pressure | 0.1 mbar (gas ballast closed) — absolute |
| Inlet / outlet connections | 2 inch G / 2 inch G |
| Motor power | 7.5 / 9 kW (50 / 60 Hz; three-phase) |
| Lubricant | DVP SW100 |
| Model | LC 305HV |
| Continuous operating pressure range (absolute) | 400–0.1 mbar |
Parts, consumables and workshop support
Send the pump model and part number when asking about a replacement. Compatibility depends on the equipment and operating conditions.
Before you order
Confirm the exact version, electrical supply and connections. Ask whether oil, filters, fittings, cables or controllers are included or separately specified.
Availability, lead time and the applicable warranty are confirmed for your quotation. A catalogue listing does not reserve stock.
