EDWARDS

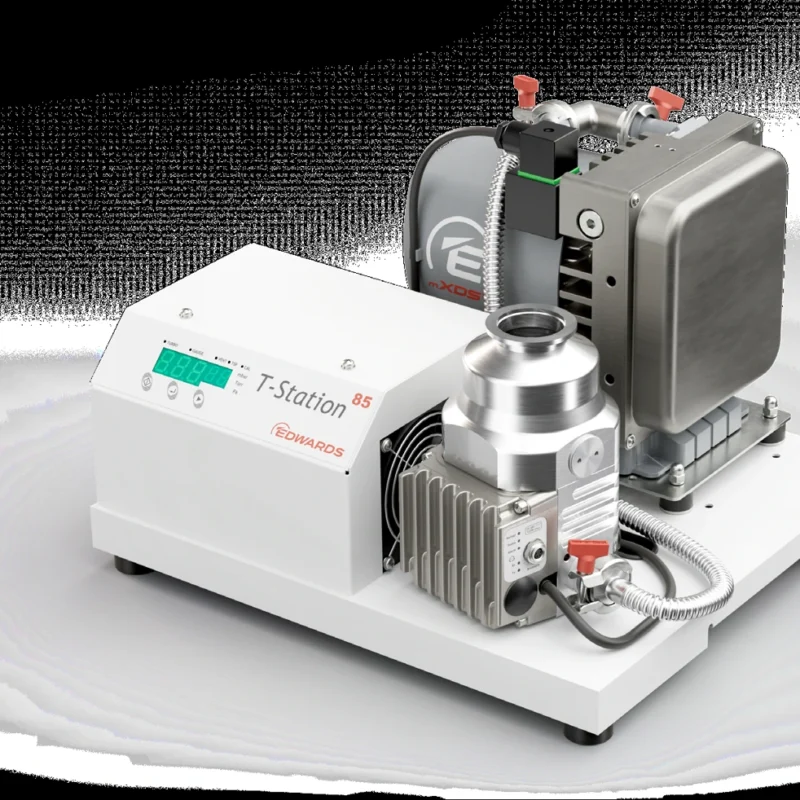

Edwards T-Station 85 Turbomolecular Pumping Station
- Nitrogen pumping speed
- 47 l/s NW40; 84 l/s ISO63 or CF63
- Inlet options
- NW40 / ISO63 / CF63
- Backing pumps
- mXDS3s, XDD1 or E2M1.5
EDWARDS brand guide / Product family
Edwards T-Station turbomolecular pumping stations
Compare T-Station 85 and 300 complete high-vacuum stations with dry scroll, diaphragm or oil-sealed backing pumps.
Range comparison
| Specification | Details |
|---|---|
| Edwards T-Station 85 Turbomolecular Pumping Station | 47 l/s NW40; 84 l/s ISO63 or CF63 |
| Edwards T-Station 300 Turbomolecular Pumping Station | 300 l/s ISO100 or CF100 |
How to select the range
T-Station 85 delivers 47 l/s nitrogen speed through NW40 or 84 l/s through ISO63/CF63. T-Station 300 delivers 300 l/s through ISO100/CF100. Both offer mXDS3s, XDD1 and E2M1.5 backing choices in documented voltage combinations. A gauge connection is not a supplied gauge; specify gauge, vent valve, cable and UK mains lead. Attainable pressure and footprint depend on the complete configuration.
Configuration, installation and documentation
Each product page provides documented choices, technical conditions, manufacturer imagery and downloads. Confirm process compatibility, connections, controls, electrical supply and included accessories as a complete configuration. Prices and delivery remain enquiry-based.
Related ranges and support
Compare standalone nEXT pumps, active gauges. Explore the Edwards brand guide for the wider catalogue.
Send working pressure, required flow or chamber volume, gas and vapour load, duty cycle, available utilities and existing equipment references. For measurement, include gas species, accuracy requirement, controller and interface.
Compare the standalone Edwards XDD1 and D-LAB diaphragm pumps. A station’s approved backing configuration must be checked separately. See coating and deposition selection.
Compare the listed models
Compare values with their stated gas, frequency and configuration conditions. A blank specification means it needs confirmation. Listed equipment is subject to a quotation; inclusion here does not indicate stock.
| Model | Nitrogen pumping speed | Inlet options | Backing pumps |
|---|---|---|---|
| Edwards T-Station 85 Turbomolecular Pumping Station | 47 l/s NW40; 84 l/s ISO63 or CF63 | NW40 / ISO63 / CF63 | mXDS3s, XDD1 or E2M1.5 |
| Edwards T-Station 300 Turbomolecular Pumping Station | 300 l/s ISO100 or CF100 | ISO100 / CF100 | mXDS3s, XDD1 or E2M1.5 |
Models and configurations
EDWARDS

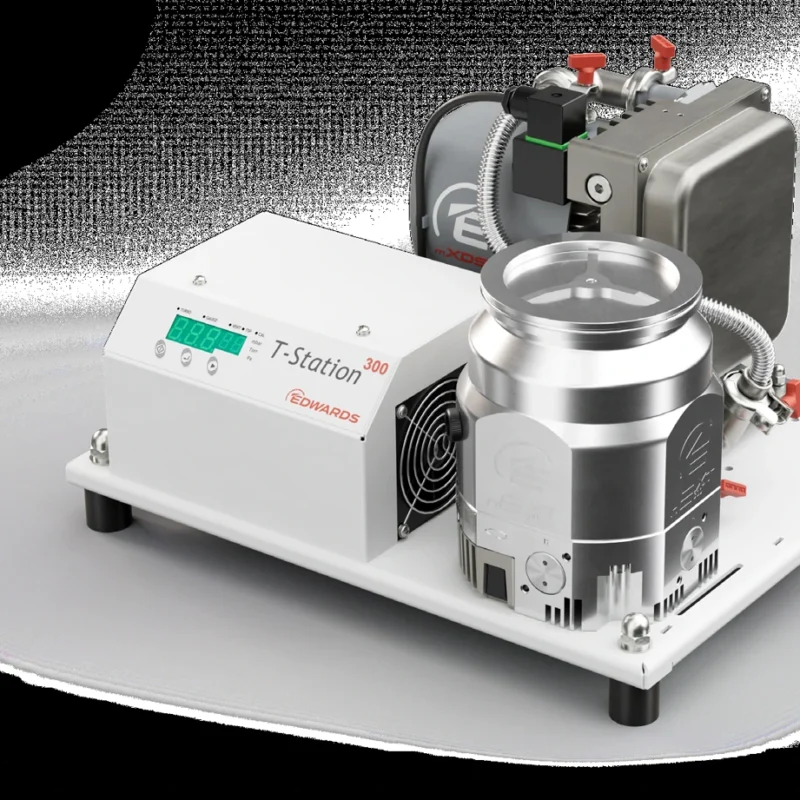

Edwards T-Station 300 Turbomolecular Pumping Station
- Nitrogen pumping speed
- 300 l/s ISO100 or CF100
- Inlet options
- ISO100 / CF100
- Backing pumps
- mXDS3s, XDD1 or E2M1.5
Documentation and specification checks
Open the model page for its specifications and available manufacturer downloads. Match the full model, suffix and revision to the equipment being supplied. Keep installation limits and performance test conditions with the figure when comparing alternatives.
