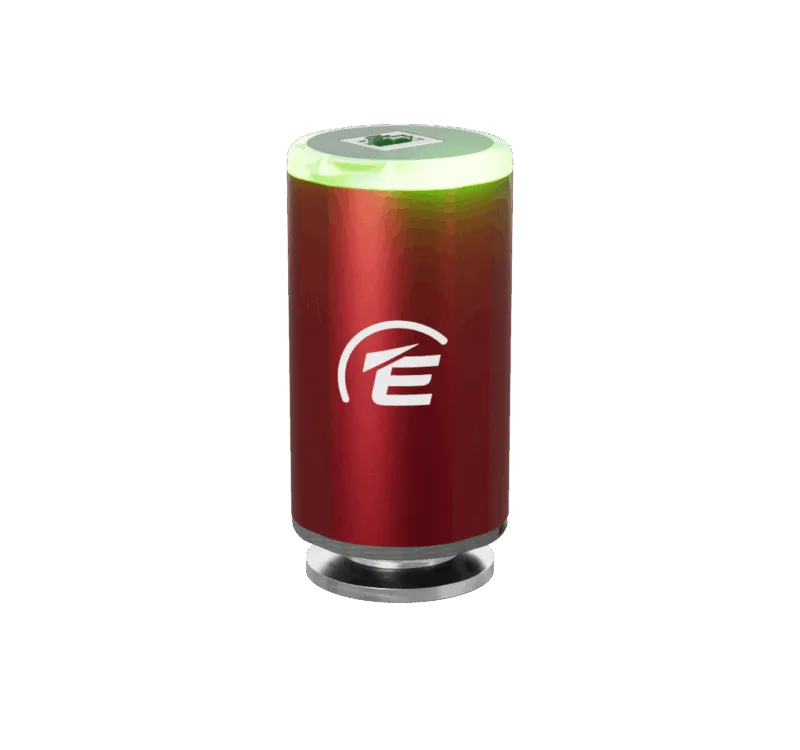

Edwards AIM200 Active Inverted Magnetron Vacuum Gauge
- Measurement principle
- Cold-cathode inverted magnetron
- Measurement range
- 1 × 10⁻⁹–1 × 10⁻² mbar
- Supply voltage
- 15–48 V DC
EDWARDS brand guide / Product family
Edwards APG200, AIM200 and WRG200 vacuum gauges
Select Edwards active gauges by pressure range, gas, flange, sensor materials and analogue or digital interface.
Range comparison
| Specification | Details |
|---|---|
| Edwards APG200 Active Pirani Vacuum Gauge | Pirani |
| Edwards AIM200 Active Inverted Magnetron Vacuum Gauge | Cold-cathode inverted magnetron |
| Edwards WRG200 Active Wide Range Vacuum Gauge | Combined Pirani and inverted magnetron |
How to select the range
APG200 uses Pirani measurement for rough and medium vacuum; M/MP and LC versions have different lower limits. AIM200 covers high vacuum using an inverted magnetron and needs a separate rough-vacuum measurement where atmosphere-to-high-vacuum coverage is required. WRG200 combines Pirani and inverted-magnetron sensors from atmosphere to 10⁻⁹ mbar. Accuracy varies with range and gas; the full span is not a uniform accuracy band.
Configuration, installation and documentation
Each product page provides documented choices, technical conditions, manufacturer imagery and downloads. Confirm process compatibility, connections, controls, electrical supply and included accessories as a complete configuration. Prices and delivery remain enquiry-based.
Related ranges and support
Compare TIC, ADC and TAG controllers, T-Station systems. Explore the Edwards brand guide for the wider catalogue.
Send working pressure, required flow or chamber volume, gas and vapour load, duty cycle, available utilities and existing equipment references. For measurement, include gas species, accuracy requirement, controller and interface.
Compare the listed models
Compare values with their stated gas, frequency and configuration conditions. A blank specification means it needs confirmation. Listed equipment is subject to a quotation; inclusion here does not indicate stock.
| Model | Measurement principle | Measurement range | Supply voltage |
|---|---|---|---|
| Edwards AIM200 Active Inverted Magnetron Vacuum Gauge | Cold-cathode inverted magnetron | 1 × 10⁻⁹–1 × 10⁻² mbar | 15–48 V DC |
| Edwards APG200 Active Pirani Vacuum Gauge | Pirani | M/MP: atmosphere to 5 × 10⁻⁴ mbar; LC: atmosphere to 1 × 10⁻⁴ mbar | 15–48 V DC |
| Edwards WRG200 Active Wide Range Vacuum Gauge | Combined Pirani and inverted magnetron | 1 × 10⁻⁹–1000 mbar | 15–48 V DC |
Models and configurations
EDWARDS

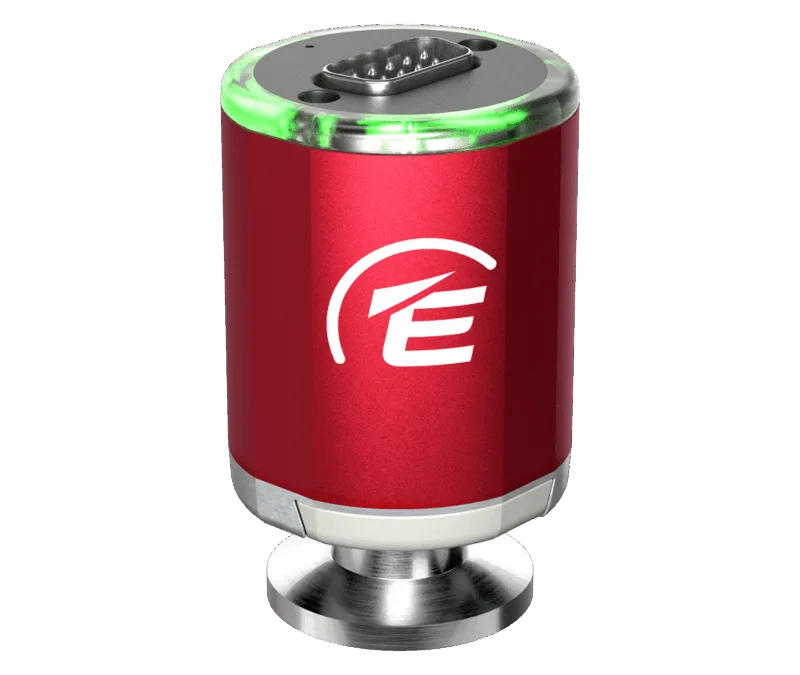

Edwards APG200 Active Pirani Vacuum Gauge
- Measurement principle
- Pirani
- Measurement range
- M/MP: atmosphere to 5 × 10⁻⁴ mbar; LC: atmosphere to 1 × 10⁻⁴ mbar
- Supply voltage
- 15–48 V DC
EDWARDS

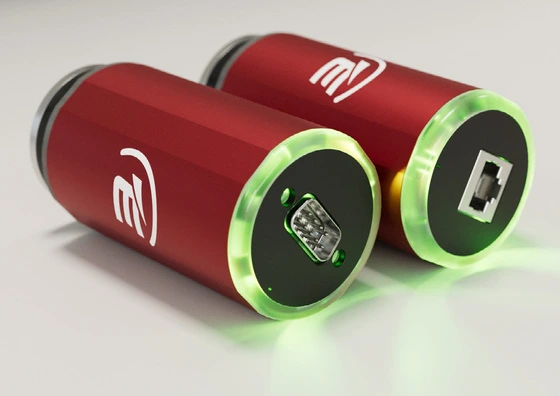

Edwards WRG200 Active Wide Range Vacuum Gauge
- Measurement principle
- Combined Pirani and inverted magnetron
- Measurement range
- 1 × 10⁻⁹–1000 mbar
- Supply voltage
- 15–48 V DC
Documentation and specification checks
Open the model page for its specifications and available manufacturer downloads. Match the full model, suffix and revision to the equipment being supplied. Keep installation limits and performance test conditions with the figure when comparing alternatives.
