The nEXT family serves high-vacuum pumping duties, with different capacities, inlet connections and configurations.
nEXT selection requires the gas-specific pumping speed, inlet connection and backing arrangement. Cooling, controller, cables and venting must suit the chosen configuration. Chamber volume, gas throughput and pipework conductance affect pump-down and working pressure. Use the linked model information to compare these conditions.
Select by gas-specific pumping speed, required pressure and inlet flange. Check backing pressure, cooling, controller and cable requirements alongside the turbo pump.
Compare nXDS dry scroll backing pumps. Match backing pressure, throughput and gas compatibility to the selected turbo and process; flange size alone does not establish compatibility.
Compare values with their stated gas, frequency and configuration conditions. A blank specification means it needs confirmation. Listed equipment is subject to a quotation; inclusion here does not indicate stock.
| Model | Pumping speed — nitrogen | High-vacuum inlet connection | Backing connection |
|---|---|---|---|
| Edwards nEXT85D Turbomolecular Vacuum Pump | 47 l/s (NW40); 84 l/s (DN63); 86 l/s (DN100) | NW40; DN63 ISO-K or CF; DN100 ISO-K | NW16 |
| Edwards nEXT240D Turbomolecular Vacuum Pump | 240 l/s | DN100 ISO-K or CF | NW25 |
| Edwards nEXT300D Turbomolecular Vacuum Pump | 300 l/s | DN100 ISO-K or CF | NW25 |
| Edwards nEXT400D Turbomolecular Vacuum Pump | 400 l/s | DN160 ISO-K or CF | NW25 |
| Edwards nEXT730D Turbomolecular Vacuum Pump | 730 l/s (ISO-K); 690 l/s (CF) | DN160 ISO-K or CF | DN25 KF |

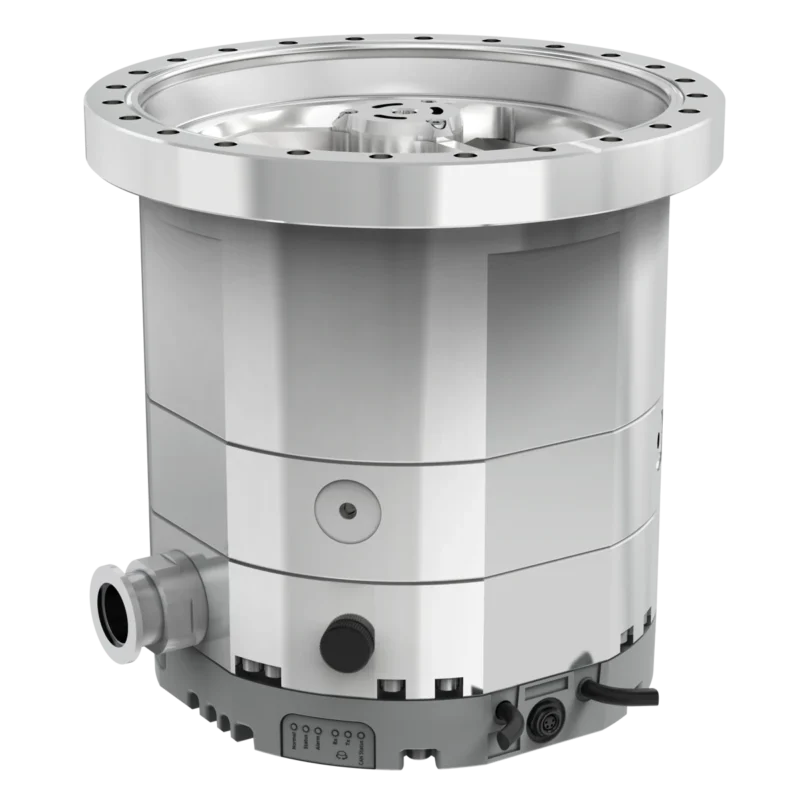

| Edwards nEXT930D Turbomolecular Vacuum Pump | 925 l/s (ISO-K); 870 l/s (CF) | DN200 ISO-K or CF | DN25 KF |
EDWARDS
EDWARDS
EDWARDS
EDWARDS
EDWARDS
EDWARDS
Open the model page for its specifications and available manufacturer downloads. Match the full model, suffix and revision to the equipment being supplied. Keep installation limits and performance test conditions with the figure when comparing alternatives.
Return to the EDWARDS brand guide · Explore all product families
Send the process, working pressure, gas, required capacity and electrical supply. For measurement, include the range, connection, output and controller. We can confirm the model, accessories and documentation for your quotation.
Compare the stated conditions as well as the values. A missing specification is not a zero rating; confirm suitability with Girovac.
