The Edwards APG200 active pirani vacuum gauge measures vacuum using pirani technology. Select the flange, output and materials for the pressure range, gas and system controller.

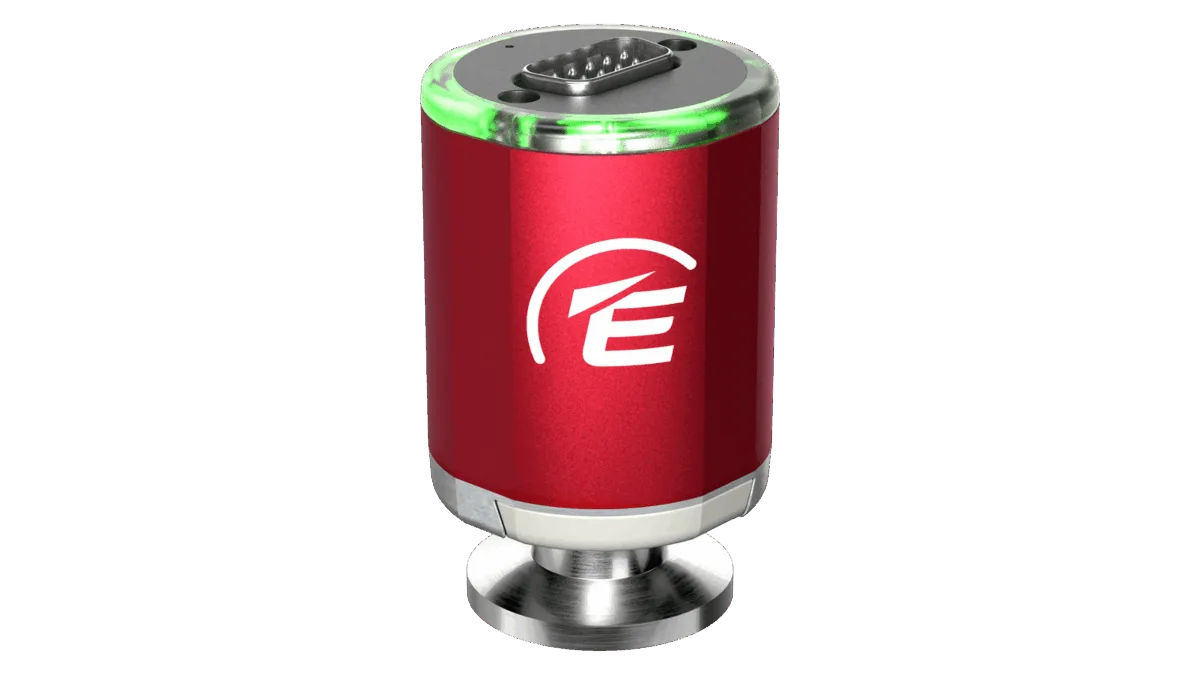

Manufacturer photograph of an APG200 gauge configuration. Select the required flange, filament and electrical interface.
The Edwards APG200 active pirani vacuum gauge measures vacuum using pirani technology. Select the flange, output and materials for the pressure range, gas and system controller.
Key specifications
Specification
Details
Measurement principle
Pirani
Measurement range
M/MP: atmosphere to 5 × 10⁻⁴ mbar; LC: atmosphere to 1 × 10⁻⁴ mbar
Supply voltage
15–48 V DC
Output choices
Analogue or RS232/RS485; configuration-specific
Operating temperature
5–60 °C
Bakeout
150 °C with electronics removed
Service
Replaceable measuring tube and electronics
Configuration choices
Specification
Details
D1G1011100
XM, NW16, standard analogue RJ45
D1G1021100
XM, NW25, standard analogue RJ45
D1G2011100
XLC, NW16, standard analogue RJ45
D1G2021100
XLC, NW25, standard analogue RJ45
Measurement and process compatibility
Measurement range is not an accuracy guarantee across the whole span. These gauge principles are gas dependent; retain the manufacturer’s gas correction and accuracy conditions. Protect the sensing element from unsuitable contamination and choose materials for the process. Bakeout to 150 °C requires removal of the electronics.
M, LC and MP filament versions have different materials and low-pressure limits. LC extends the range to 10⁻⁴ mbar. The ±15% accuracy band is 100 to 10⁻³ mbar for M/MP and 10 to 10⁻³ mbar for LC; accuracy is poorer outside those bands. A corrosion-resistant filament does not establish compatibility with every chemical.
Analogue, digital and controller selection
Analogue RJ45 versions and RS232/RS485 D-sub versions are distinct configurations. Connector shape, transfer function, supply and set-point option must all match the receiving controller. The listed standard analogue builds can be selected with compatible Edwards gauge controllers; confirm compatibility for the complete gauge/controller pair. Gauges, cables and controllers are separately specified.
State the pressure range, gas species, flange, output, cable length and calibration requirement. See vacuum gauge calibration for ongoing measurement support.
Dimensions and technical reference

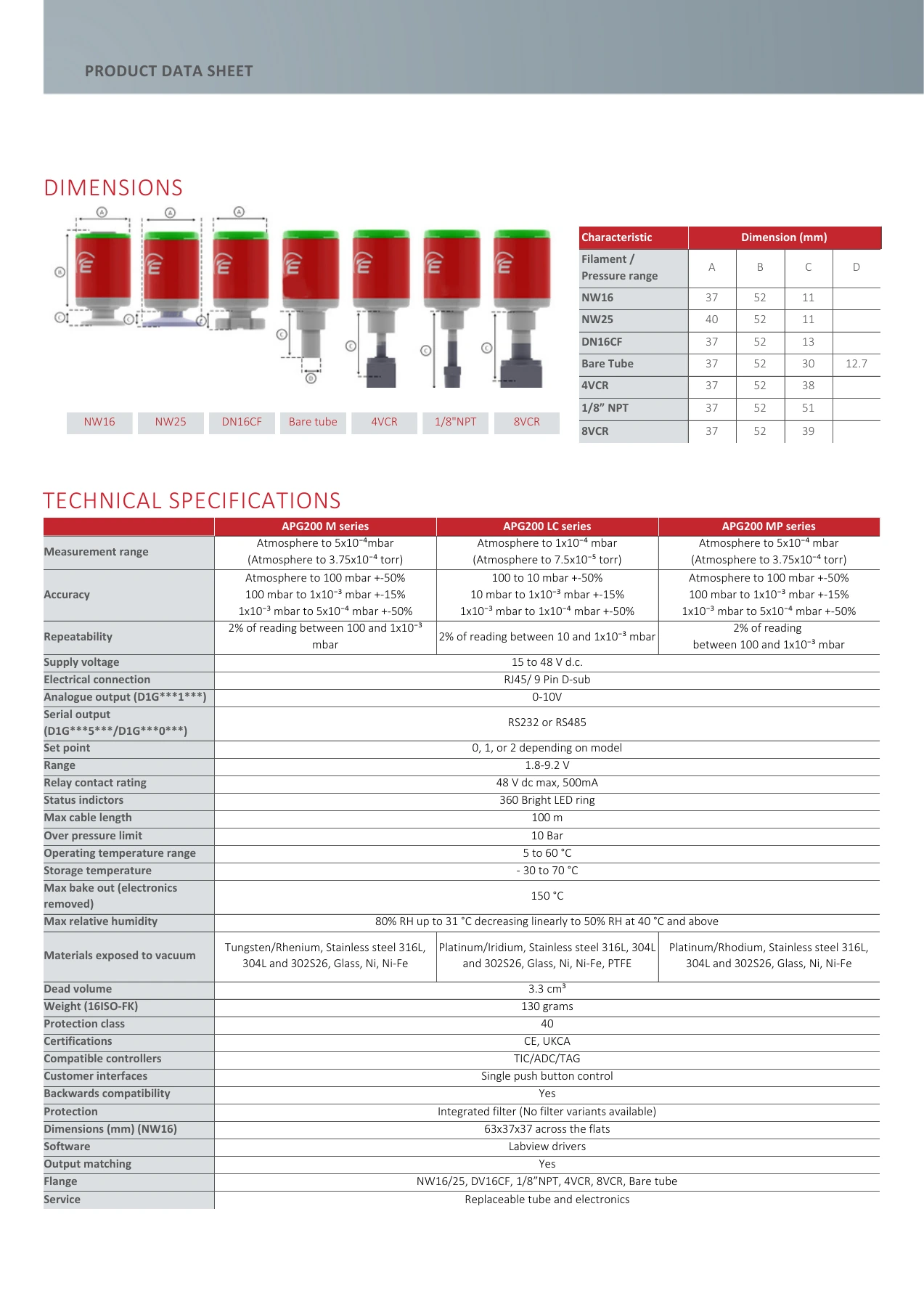

Original manufacturer technical reference for Edwards APG200 gauge variants. Use the drawing and dimensions for the selected configuration. Select to enlarge.
Source: 3601-0834-01-APG200-Datasheet, supplied from the manufacturer’s official website. This model-level listing retains configuration choices; the exact order reference, included equipment and lead time are confirmed in the quotation.
For APG200 Active Pirani Vacuum Gauge, include working pressure, required flow or chamber volume, gas and vapour load, operating hours, electrical supply and connections. For a replacement, send the complete nameplate and serial number so the configuration can be checked.
Specifications
Manufacturer
EDWARDS
Equipment type
Vacuum gauges & instrumentation
Measurement principle
Pirani
Measurement range
M/MP: atmosphere to 5 × 10⁻⁴ mbar; LC: atmosphere to 1 × 10⁻⁴ mbar
Supply voltage
15–48 V DC
Output choices
Analogue or RS232/RS485; configuration-specific
Operating temperature
5–60 °C
Bakeout
150 °C with electronics removed
Service
Replaceable measuring tube and electronics
Calibration and instrument support
Send the gauge model, pressure range and process details for calibration, replacement or compatibility advice.
