MIL’S ROTOMIL’S K09 Rotary Vane Vacuum Pump
The MIL’S ROTOMIL’S K09 is a compact single-stage oil-sealed rotary vane pump for equipment integration and compatible industrial vacuum duties. Nominal flow is 8 m³/h at 50 Hz and 9 m³/h at 60 Hz.
Manufacturer illustration: MIL’S ROTOMIL’S K pump range. Confirm the selected configuration and supplied equipment in the quotation.
Part of the MIL’S ROTOMIL’S K rotary vane vacuum pumps family. Compare the range and other model options.
- Lubricant
- MV99S synthetic oil, per manufacturer sheet
- Nominal flow, 50 / 60 Hz
- 8 / 9 m³/h; PNEUROP 6002 at 20 °C
- End vacuum
- 2 mbar standard version
- Technology
- Single-stage oil-sealed rotary vane
Price and availability
Tell us the configuration and quantity you need. Include your process requirements if you would like help with selection.
View quote listProduct details
Applications and selection
The MIL’S ROTOMIL’S K09 is a compact single-stage oil-sealed rotary vane pump for equipment integration and compatible industrial vacuum duties. Nominal flow is 8 m³/h at 50 Hz and 9 m³/h at 60 Hz.
Key specifications
| Specification | Details |
|---|---|
| Nominal flow, 50 / 60 Hz | 8 / 9 m³/h; PNEUROP 6002 at 20 °C |
| End vacuum | 2 mbar standard version |
| Technology | Single-stage oil-sealed rotary vane |
| Electrical options | 230 V single-phase or 230/400 V three-phase, 50/60 Hz |
| Oil capacity | 0.25 litres |
| Lubricant | MV99S synthetic oil, per manufacturer sheet |
Configuration choices
| Specification | Details |
|---|---|
| 824519 | 230 V single-phase, 50/60 Hz |
| 824545 | 230/400 V three-phase, 50/60 Hz |
Compact industrial vacuum
The range includes a built-in oil-mist filter and gas ballast. Select inlet protection and vapour handling for the application. The K12 sheet gives a 400–2 mbar continuous-duty range; this rating must not be applied to K04 or K09. Confirm the intended operating pressure and cycle for the selected model.
Power, accessories and service
Choose the single-phase or three-phase motor for the available supply. Inlet filters, hoses, safety valves, starters and the 3 m single-phase cable 363052 are listed accessories. Maintain the specified oil and filters and allow motor cooling and service access. A special 0.1 mbar build is by enquiry and is not the standard 2 mbar configuration.
Compare MIL’S EVISA pumps and MINIVAC compact systems for related duties.

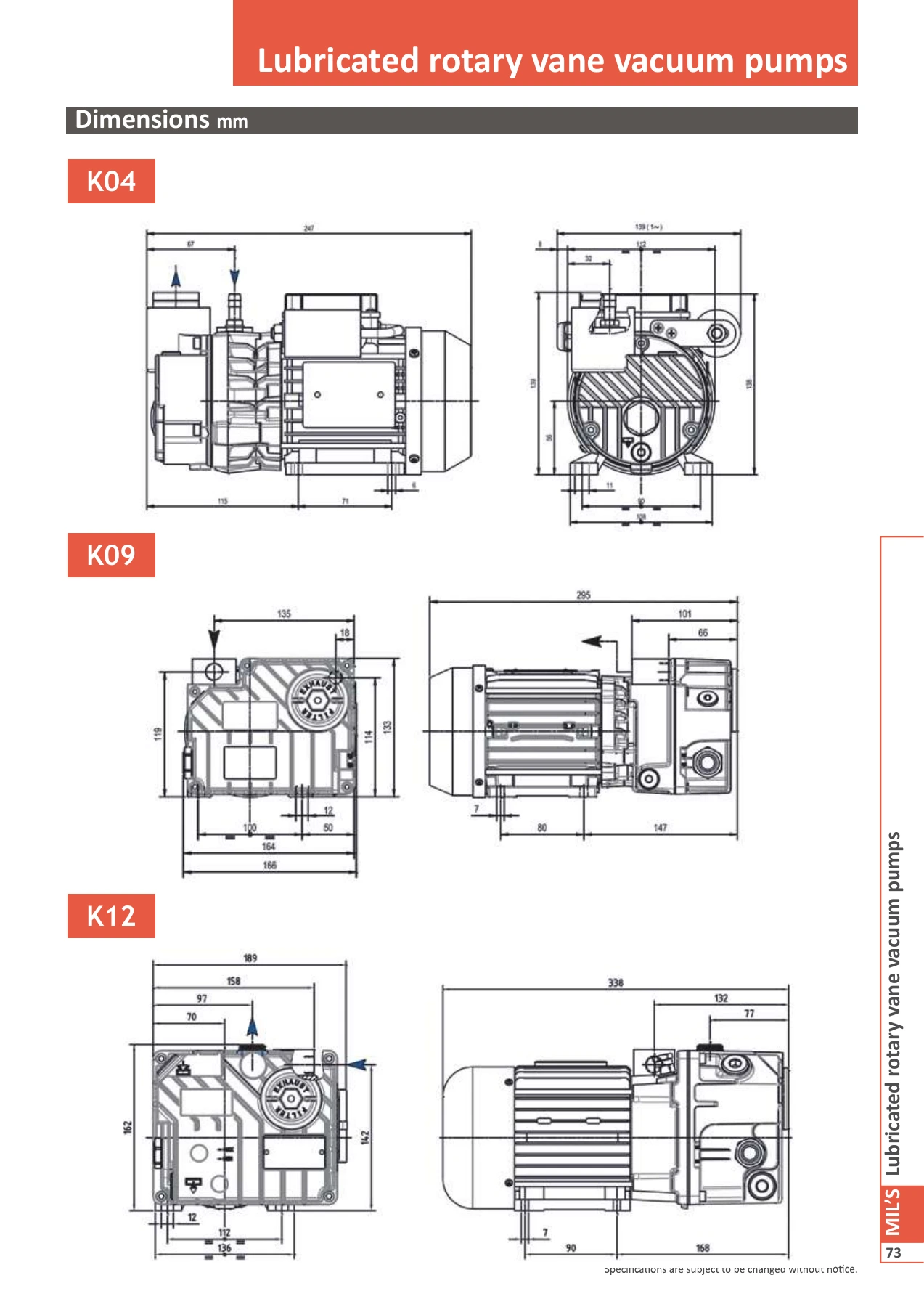

Dimensions and technical reference
Manufacturer downloads
Source: EN-ROTOMILS-K, supplied from the manufacturer’s official website. This model-level listing retains configuration choices; the exact order reference, included equipment and lead time are confirmed in the quotation.
Selection and support
Explore the ROTOMIL’S range and MIL’S brand guide. Compare vacuum gauges and controllers, plan gauge calibration, or discuss servicing.
For ROTOMIL’S K09 Rotary Vane Vacuum Pump, include working pressure, required flow or chamber volume, gas and vapour load, operating hours, electrical supply and connections. For a replacement, send the complete nameplate and serial number so the configuration can be checked.
Specifications
| Manufacturer | MIL'S |
|---|---|
| Equipment type | Single Stage Oil Filled Pumps |
| Lubricant | MV99S synthetic oil, per manufacturer sheet |
| Nominal flow, 50 / 60 Hz | 8 / 9 m³/h; PNEUROP 6002 at 20 °C |
| End vacuum | 2 mbar standard version |
| Technology | Single-stage oil-sealed rotary vane |
| Electrical options | 230 V single-phase or 230/400 V three-phase, 50/60 Hz |
| Oil capacity | 0.25 litres |
Parts, consumables and workshop support
Send the pump model and part number when asking about a replacement. Compatibility depends on the equipment and operating conditions.
Before you order
Confirm the exact version, electrical supply and connections. Ask whether oil, filters, fittings, cables or controllers are included or separately specified.
Availability, lead time and the applicable warranty are confirmed for your quotation. A catalogue listing does not reserve stock.
