Leybold LEYCON SECUVAC ISO-K Safety Valve
The Leybold SECUVAC ISO-K safety valve isolates the vacuum system and vents the pump side on power failure. It is intended for compatible rotary-pump installations that need an external safety valve.
Manufacturer illustration of Leybold secuvac iso; size, material and actuator depend on the selected configuration.
Part of the Leybold LEYCON vacuum valves family. Compare the range and other model options.
- Sizes
- DN63 / DN100 ISO-K
- Pressure range
- 10⁻⁸–1000 mbar absolute
- Molecular conductance, air
- 126 / 300 l/s, in listed size order
- Housing tightness
- <1 × 10⁻⁹ mbar l/s
Price and availability
Tell us the configuration and quantity you need. Include your process requirements if you would like help with selection.
View quote listProduct details
Applications and selection
The Leybold SECUVAC ISO-K safety valve isolates the vacuum system and vents the pump side on power failure. It is intended for compatible rotary-pump installations that need an external safety valve.
Key specifications
| Specification | Details |
|---|---|
| Sizes | DN63 / DN100 ISO-K |
| Pressure range | 10⁻⁸–1000 mbar absolute |
| Molecular conductance, air | 126 / 300 l/s, in listed size order |
| Housing tightness | <1 × 10⁻⁹ mbar l/s |
| Valve-plate tightness | <1 × 10⁻⁵ mbar l/s |
| Venting-valve tightness | <1 × 10⁻⁷ mbar l/s |
| Closing time | <0.1 s; response <0.05 s |
| Opening time | <30 s |
| Ambient temperature | 5–50 °C |
Documented configurations
| Specification | Details |
|---|---|
| 215205 | DN63 ISO-K; 24 V DC ±10% |
| 215206 | DN63 ISO-K; 90–126 V AC, 50–60 Hz |
| 215207 | DN63 ISO-K; 180–253 V AC, 50–60 Hz |
| 215225 | DN100 ISO-K; 24 V DC ±10% |
| 215226 | DN100 ISO-K; 90–126 V AC, 50–60 Hz |
| 215227 | DN100 ISO-K; 180–253 V AC, 50–60 Hz |
System protection and restart
The isolation and venting functions have different leak specifications. The housing leak figure must not be used as the valve-seat rating. Install in the indicated flow direction and follow the pressure-equalisation requirements: the manufacturer lists opening below 150 mbar differential and closing above 150 mbar differential. Confirm suitability where another inlet safety valve is already fitted.
Materials, installation and enquiry
Confirm gas compatibility, cleanliness, working and bakeout temperature, flange standard, mounting orientation and pressure difference before selection. A nominal flange size alone does not establish compatibility. Request connection hardware, controls and spares explicitly; accessories are included only where specified in the quotation.
For valve selection, send the line size, pressure range, gas or process, required fail position, actuation supply and switching duty. For replacements, include the complete valve nameplate.

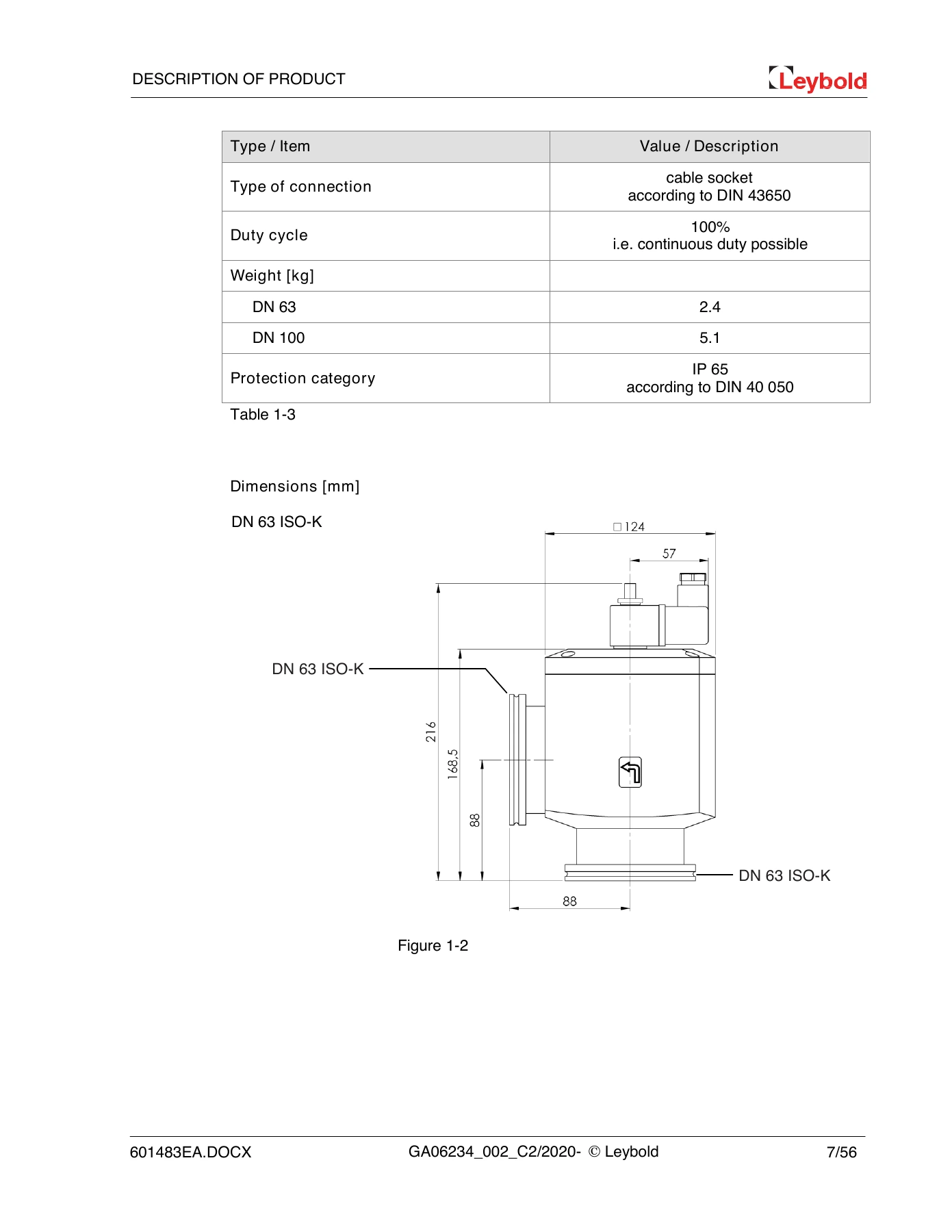

Dimensions and installation
Manufacturer downloads
Technical source: GA06234_002_C2/2020, pp.5–9. The exact order reference, supplied equipment and availability are confirmed with the quotation.
Selection and support
Explore the Leybold LEYCON vacuum valves and Leybold brand guide. Compare vacuum gauges and controllers, plan gauge calibration, or discuss servicing.
For LEYCON SECUVAC ISO-K Safety Valve, include working pressure, required flow or chamber volume, gas and vapour load, operating hours, electrical supply and connections. For a replacement, send the complete nameplate and serial number so the configuration can be checked.
Specifications
| Manufacturer | LEYBOLD |
|---|---|
| Equipment type | Vacuum Valves |
| Sizes | DN63 / DN100 ISO-K |
| Pressure range | 10⁻⁸–1000 mbar absolute |
| Molecular conductance, air | 126 / 300 l/s, in listed size order |
| Housing tightness | <1 × 10⁻⁹ mbar l/s |
| Valve-plate tightness | <1 × 10⁻⁵ mbar l/s |
| Venting-valve tightness | <1 × 10⁻⁷ mbar l/s |
| Closing time | <0.1 s; response <0.05 s |
| Opening time | <30 s |
| Ambient temperature | 5–50 °C |
Parts, consumables and workshop support
Send the pump model and part number when asking about a replacement. Compatibility depends on the equipment and operating conditions.
Before you order
Confirm the exact version, electrical supply and connections. Ask whether oil, filters, fittings, cables or controllers are included or separately specified.
Availability, lead time and the applicable warranty are confirmed for your quotation. A catalogue listing does not reserve stock.
What to check in your quotation · Delivery · Returns and faults
Enquire about this product
Leybold LEYCON SECUVAC ISO-K Safety Valve
Prefer to talk? 01692 660 117 · [email protected]
We use your details to respond to your enquiry. Read our privacy policy.
