The COMBIVAC CM 52 is a controller for passive vacuum sensor heads. It combines two THERMOVAC Pirani channels with one IONIVAC hot-cathode channel for rough-to-ultrahigh-vacuum measurement. Select an IE 414 Bayard–Alpert or IE 514 extractor head for the required low-pressure range.

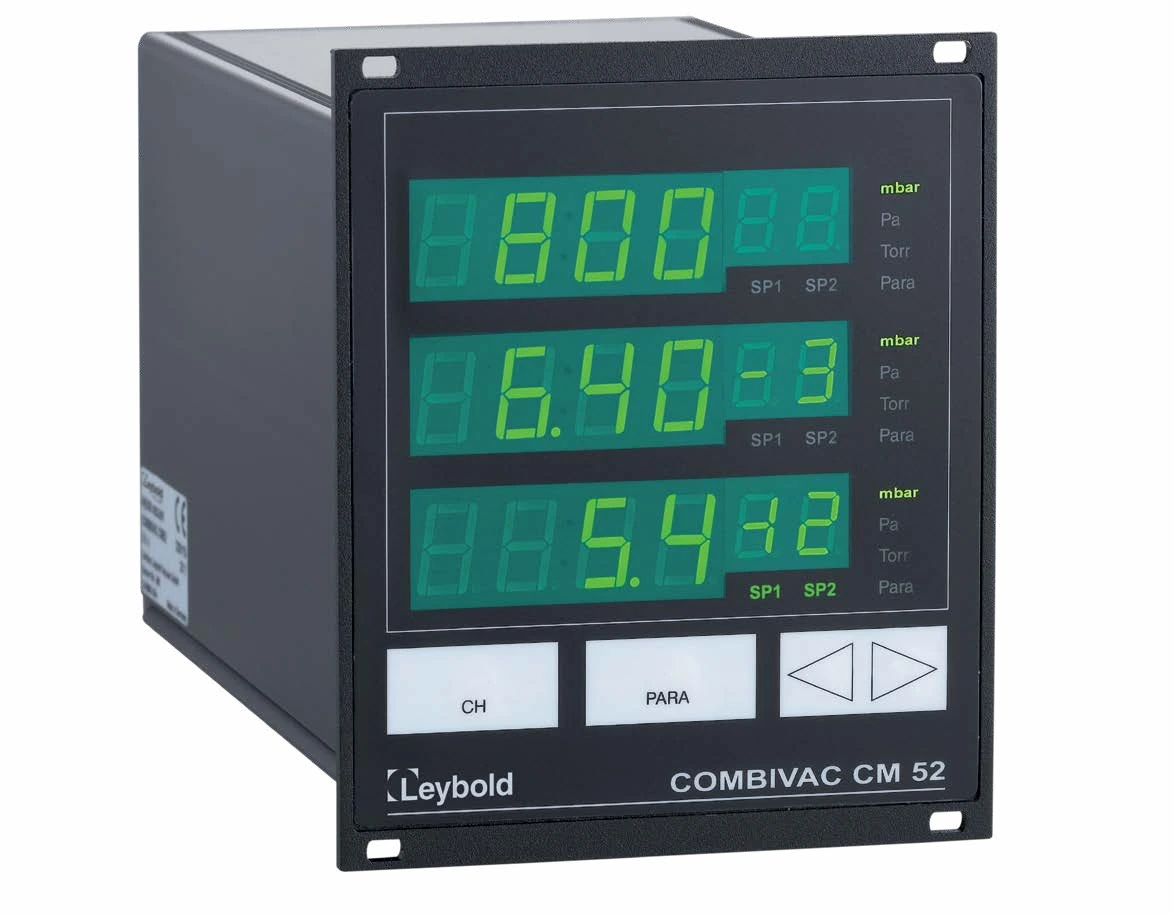

Manufacturer photograph of COMBIVAC CM 52, illustrating the CM 51/52 family; rear sensor connections differ between models.
Part of the Leybold Vacuum gauge controllers and pressure controls family. Compare the range and other model options.
Tell us the configuration and quantity you need. Include your process requirements if you would like help with selection.
View quote listQuote the complete Leybold ordering code when requesting a price. The entries below identify different configurations; voltage, flange, lubricant, cooling and interfaces must match the installation. Availability and supplied equipment are confirmed with the quotation.
| Product code | Manufacturer designation | Configuration detail |
|---|---|---|
| 230115 | COMBIVAC CM52 – with RS232 / 485 | See designation and selected-code documentation |
| 230116 | COMBIVAC CM52 – with PB / RS232 / RS485 | See designation and selected-code documentation |
The COMBIVAC CM 52 is a controller for passive vacuum sensor heads. It combines two THERMOVAC Pirani channels with one IONIVAC hot-cathode channel for rough-to-ultrahigh-vacuum measurement. Select an IE 414 Bayard–Alpert or IE 514 extractor head for the required low-pressure range.
| Measurement channels | 2 passive THERMOVAC + 1 passive IONIVAC |
|---|---|
| Compatible Pirani heads | TR 211, TR 212, TR 216 |
| Compatible high-vacuum heads | IE 414 Bayard–Alpert or IE 514 extractor |
| Pirani channel range | 5 × 10⁻⁴–1000 mbar |
| High-vacuum channel range | IE 414: 2 × 10⁻¹¹–1 × 10⁻² mbar; IE 514: 2 × 10⁻¹²–1 × 10⁻⁴ mbar |
| Switching functions | 6 relays, 2 per channel |
| Relay contact rating | Maximum 1 A and 30 V AC / 30 V DC, resistive load |
| Interface options | RS232 / RS485; separate Profibus-equipped order code |
| Mains supply | 100–240 V AC, 50/60 Hz; IEC C14 inlet |
| Power consumption | <60 W |
| Dimensions (W × H × D) | 106.4 × 128.4 × 185 mm; check connected installation envelope |
| Protection rating | IP40 |
COMBIVAC supplies and evaluates the documented passive sensor heads through their dedicated cables. An active TTR, PTR or ITR transmitter is not a direct substitute for the TR, PR or IE head. Identify the complete head and controller part numbers when replacing installed equipment. For active transmitters, compare GRAPHIX controllers.
CM 52 supports either the IE 414 or IE 514 on its IONIVAC channel. The 2 × 10⁻¹² mbar lower range belongs to the IE 514 extractor arrangement; it must not be quoted for an IE 414 Bayard–Alpert installation. Head, cable, cleanliness and installation conditions matter at these pressures.
Use two switching functions per channel, analogue recorder outputs and the selected serial/fieldbus interface to monitor the system. Check the switching range and relay loading against the manual. The documented controller order references are 230115 (RS232/RS485) and 230116 (Profibus-equipped). Gauges and their cables must be specified separately.
The controller accepts 100–240 V AC at 50/60 Hz. Request the correct UK 230 V mains lead: the brochure lists EURO and US cables in its package description. Allow for rear connectors and cable routing; the manual installation depth is approximately 280 mm. Bench, rack and front-panel installation are documented. Confirm any mounting hardware on the quotation.
Compare COMBIVAC CM 51 when choosing between passive cold-cathode and hot-cathode measurement systems.

Specification references: GA300369449_002_C1, pp12–17, August 2017; COMBIVAC brochure 3610 0210 02. Use the instructions matching the supplied part number and revision.
