MIL’S SIRELLA SL100.R Dry Claw Vacuum Pump
The SIRELLA SL100.R provides 90 / 108 m³/h PNEUROP pumping speed at 50 / 60 Hz for dry industrial vacuum. Its pumping chamber uses contactless claws; the gearbox has a separate lubricant supply.
Part of the MIL’S SIRELLA dry claw vacuum pumps family. Compare the range and other model options.
- Electrical supply
- European version: three-phase 230/400 V, 50 Hz
- Pumping speed, 50 / 60 Hz
- 90 / 108 m³/h; PNEUROP 6602 at 20 °C
- End vacuum
- 60 mbar absolute
- Continuous end vacuum
- 60 mbar absolute
Price and availability
Tell us the configuration and quantity you need. Include your process requirements if you would like help with selection.
View quote listProduct details
MIL’S SIRELLA SL100.R Dry Claw Vacuum Pump
The SIRELLA SL100.R provides 90 / 108 m³/h PNEUROP pumping speed at 50 / 60 Hz for dry industrial vacuum. Its pumping chamber uses contactless claws; the gearbox has a separate lubricant supply.
Performance and continuous operation
| Specification | Details |
|---|---|
| Pumping speed, 50 / 60 Hz | 90 / 108 m³/h; PNEUROP 6602 at 20 °C |
| End vacuum | 60 mbar absolute |
| Continuous end vacuum | 60 mbar absolute |
| Electrical supply | European version: three-phase 230/400 V, 50 Hz |
| Motor power, 50 / 60 Hz | 2.2 / 2.64 kW |
| Inlet / exhaust | 1½-inch BSP on the European version |
| Mass with oil | 170 kg, European version |
| Gearbox lubricant | MB150S synthetic, 0.7 litres |
| Noise, 50 / 60 Hz | 69 / 71 dB(A) |
| Temperature sensor | PT100 included in the documented version |
The end-vacuum rating and continuous operating limit must be read separately. The manufacturer’s current SL100.R sheet specifies 60 mbar end vacuum and 60 mbar continuous end vacuum. Size the pump at the actual working pressure, allowing for line losses and gas load.
R and RS configurations
This page covers the R pump. The separately documented RS package combines the pump with a variable-frequency-drive arrangement and has its own flow range, motor and operating limits. Do not assume that an R pump includes an inverter or that the RS frequency range applies to every R motor. Ask Girovac to confirm the exact drive and nameplate before selecting variable-speed operation.
Installation and accessories

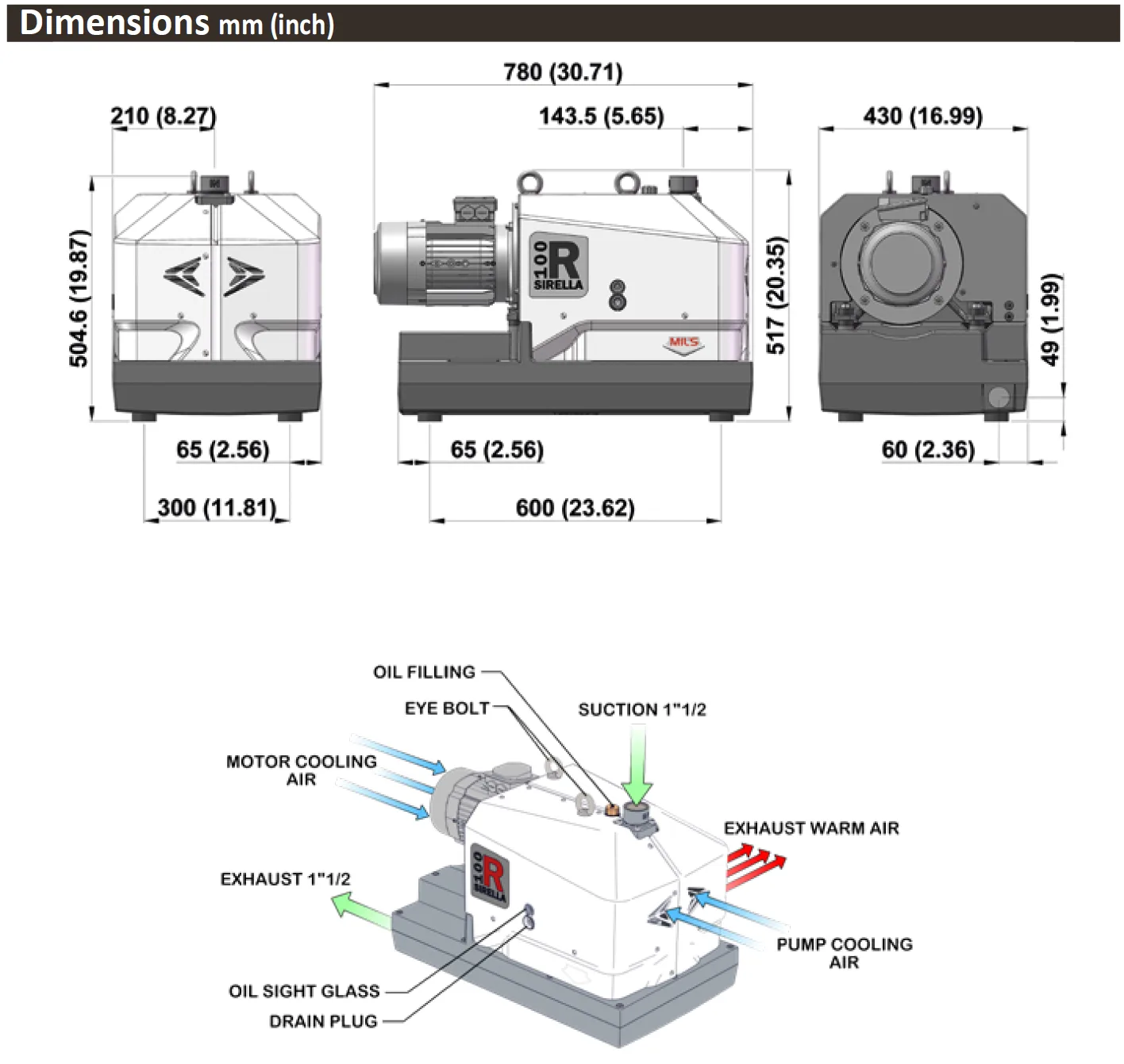

Confirm inlet filtration, isolation, controls and the exhaust route for the process. The oil-free chamber does not eliminate gearbox oil changes or filter maintenance. Keep cooling-air paths clear and allow service access beyond the outline dimensions.
Manufacturer downloads
MIL’S SIRELLA R and RS technical sheets — French (PDF) · SIRELLA RS comparison sheet — English (PDF)

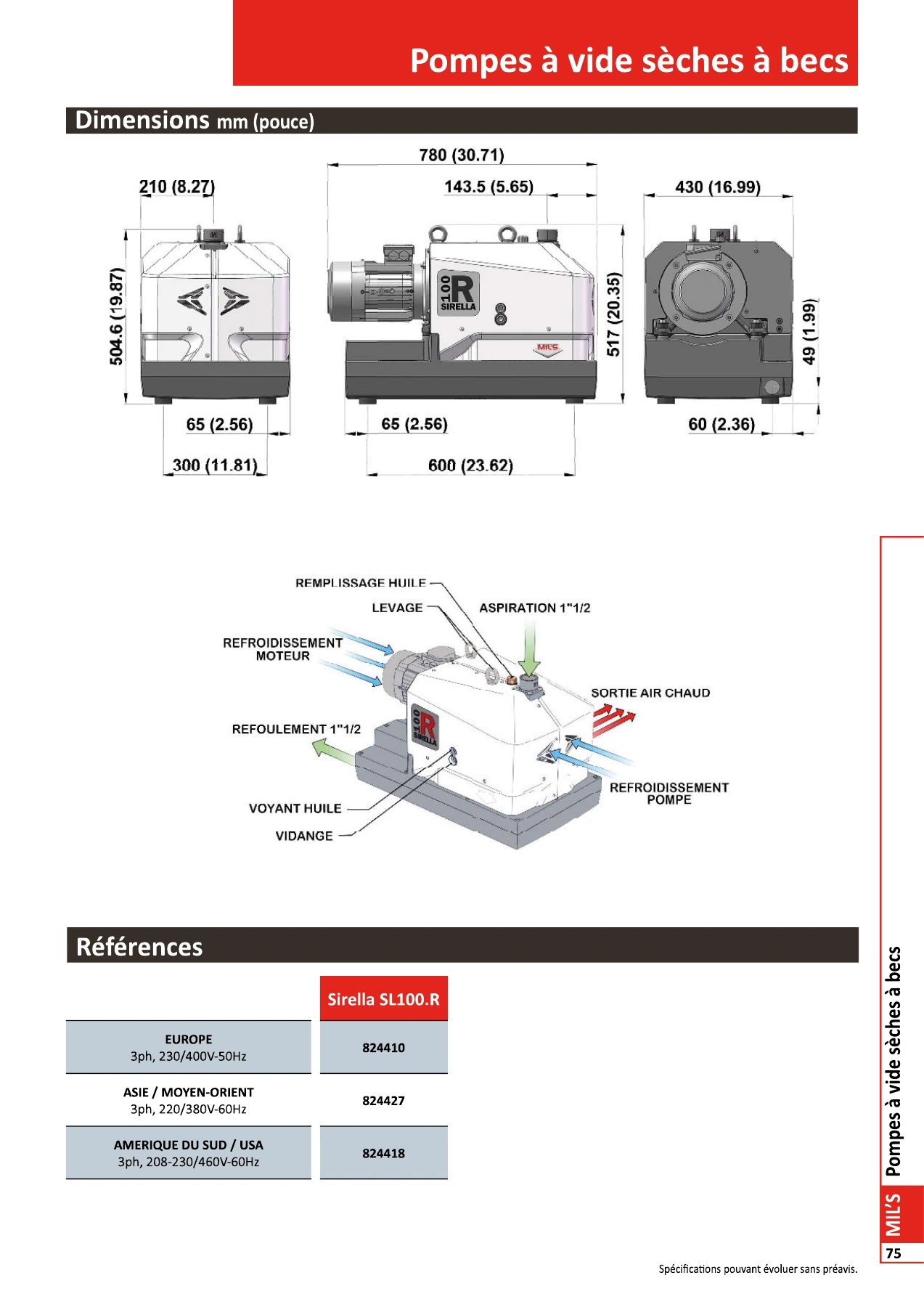

Source: manufacturer technical sheet, printed page 74 (PDF page 3). European configuration ratings are kept separate from other regional builds.
Selection and support
Explore the SIRELLA range and MILS brand guide. Compare vacuum gauges and controllers, plan gauge calibration, or discuss servicing.
For MIL’S SIRELLA SL100.R Dry Claw Vacuum Pump, include working pressure, required flow or chamber volume, gas and vapour load, operating hours, electrical supply and connections. For a replacement, send the complete nameplate and serial number so the configuration can be checked.
Specifications
| Manufacturer | MIL'S |
|---|---|
| Equipment type | Claw Pumps |
| Electrical supply | European version: three-phase 230/400 V, 50 Hz |
| Pumping speed, 50 / 60 Hz | 90 / 108 m³/h; PNEUROP 6602 at 20 °C |
| End vacuum | 60 mbar absolute |
| Continuous end vacuum | 60 mbar absolute |
| Motor power, 50 / 60 Hz | 2.2 / 2.64 kW |
| Inlet / exhaust | 1½-inch BSP on the European version |
| Mass with oil | 170 kg, European version |
| Gearbox lubricant | MB150S synthetic, 0.7 litres |
| Noise, 50 / 60 Hz | 69 / 71 dB(A) |
| Temperature sensor | PT100 included in the documented version |
Parts, consumables and workshop support
Send the pump model and part number when asking about a replacement. Compatibility depends on the equipment and operating conditions.
Before you order
Confirm the exact version, electrical supply and connections. Ask whether oil, filters, fittings, cables or controllers are included or separately specified.
Availability, lead time and the applicable warranty are confirmed for your quotation. A catalogue listing does not reserve stock.
