The CERAVAC CTR 101 is a heated capacitance diaphragm transmitter for gas-independent absolute-pressure measurement. Select a 0.1, 1, 10, 100 or 1000 Torr full-scale version to suit the process. Its sensor is regulated at 45 °C to reduce ambient-temperature effects and deposition within the gauge.
Manufacturer illustration of the current CTR 101 with DN16 ISO-KF connection.
Part of the Leybold CERAVAC gauges and DI/DU pressure sensors family. Compare the range and other model options.
Tell us the configuration and quantity you need. Include your process requirements if you would like help with selection.
View quote listQuote the complete Leybold ordering code when requesting a price. The entries below identify different configurations; voltage, flange, lubricant, cooling and interfaces must match the installation. Availability and supplied equipment are confirmed with the quotation.
| Product code | Manufacturer designation | Configuration detail |
|---|---|---|
| 230320V01 | CERAVAC CTR 101 – 16KF 1000Torr | See designation and selected-code documentation |
| 230321V01 | CERAVAC CTR 101 – 16KF 100Torr | See designation and selected-code documentation |
| 230322V01 | CERAVAC CTR 101 – 16KF 10Torr | See designation and selected-code documentation |
| 230323V01 | CERAVAC CTR 101 – 16KF 1Torr | See designation and selected-code documentation |
| 230324V01 | CERAVAC CTR 101 – 16KF 0.1Torr | See designation and selected-code documentation |
| 230325V01 | CERAVAC CTR 101 – DN16CF 1000Torr | See designation and selected-code documentation |
| 230326V01 | CERAVAC CTR 101 – DN16CF 100Torr | See designation and selected-code documentation |
| 230327V01 | CERAVAC CTR 101 – DN16CF 10Torr | See designation and selected-code documentation |
| 230328V01 | CERAVAC CTR 101 – DN16CF 1Torr | See designation and selected-code documentation |
| 230329V01 | CERAVAC CTR 101 – DN16CF-R 0.1Torr | See designation and selected-code documentation |
| 230330V01 | CERAVAC CTR 101 – Cajon 8VCR 1000Torr | See designation and selected-code documentation |
| 230331V01 | CERAVAC CTR 101 – Cajon 8VCR 100Torr | See designation and selected-code documentation |
| 230332V01 | CERAVAC CTR 101 – Cajon 8VCR 10Torr | See designation and selected-code documentation |
| 230333V01 | CERAVAC CTR 101 – Cajon 8VCR 1Torr | See designation and selected-code documentation |
| 230334V01 | CERAVAC CTR 101 – Cajon 8VCR 0.1Torr | See designation and selected-code documentation |
| 230335V01 | CERAVAC CTR 101 – 1/2" tube 1000Torr | See designation and selected-code documentation |
| 230336V01 | CERAVAC CTR 101 – 1/2" tube 100Torr | See designation and selected-code documentation |
| 230337V01 | CERAVAC CTR 101 – 1/2" tube 10Torr | See designation and selected-code documentation |
| 230338V01 | CERAVAC CTR 101 – 1/2" tube 1Torr | See designation and selected-code documentation |
| 230339V01 | CERAVAC CTR 101 – 1/2" tube 0.1Torr | See designation and selected-code documentation |
The CERAVAC CTR 101 is a heated capacitance diaphragm transmitter for gas-independent absolute-pressure measurement. Select a 0.1, 1, 10, 100 or 1000 Torr full-scale version to suit the process. Its sensor is regulated at 45 °C to reduce ambient-temperature effects and deposition within the gauge.
| Measurement principle | Heated capacitance diaphragm; gas-independent absolute pressure |
|---|---|
| Full-scale options | 0.1, 1, 10, 100 or 1000 Torr; separate variants |
| Accuracy | 0.15% of reading under specified stabilised conditions |
| Sensor temperature | 45 °C |
| Vacuum connection | DN16 ISO-KF, DN16 CF-R, 8 VCR or ½-inch tube |
| Output / interface | 0–10 V linear measurement output and RS232C |
| Electrical connection | 15-pin D-sub male |
| Supply voltage | +14 to +30 V DC or ±15 V (±5%); protected limited-power source |
| Power consumption | ≤12 W during heating; ≤8 W at operating temperature |
| Setpoints | 2 floating normally-open contacts; maximum 30 V DC / 0.5 A DC |
| Wetted materials | Alumina ceramic and stainless steel AISI 316L |
| Operating temperature | +10 to +40 °C |
| Protection rating | IP40 |
Each gauge has one full-scale range; one unit does not span all five ranges at the same resolution. The stated accuracy includes non-linearity, hysteresis and repeatability at 25 °C ambient after two hours of operation, excluding temperature effects. Choose the range around the pressures that must be controlled or calibrated.
The measurement output is linear: 10 V represents the selected full-scale pressure. RS232C, zero adjustment and the two switching functions support integration with a suitable control system. Match supply, pinout, load and cable length before connection.
This page describes the current CTR 101 with V01 order codes and the ceramic measuring cell documented in manual 130002066_002_A2. The earlier CTR 101 N is a different documented construction. When replacing an N version, send its complete part number and range so that the mechanical, electrical and process compatibility can be checked; do not transfer old N specifications to the current model.
| DN16 ISO-KF, 1000 / 100 / 10 / 1 / 0.1 Torr | 230320V01 / 230321V01 / 230322V01 / 230323V01 / 230324V01 |
|---|---|
| DN16 CF-R, same full-scale sequence | 230325V01 / 230326V01 / 230327V01 / 230328V01 / 230329V01 |
| 8 VCR, same full-scale sequence | 230330V01 / 230331V01 / 230332V01 / 230333V01 / 230334V01 |
| ½-inch tube, same full-scale sequence | 230335V01 / 230336V01 / 230337V01 / 230338V01 / 230339V01 |
The manufacturer lists the transmitter, adjustment pin, calibration test report and operating manuals. The power source, readout, sensor cable and vacuum connection hardware should be specified separately. GRAPHIX ONE is a compatible controller option with the correct sensor configuration and cable.

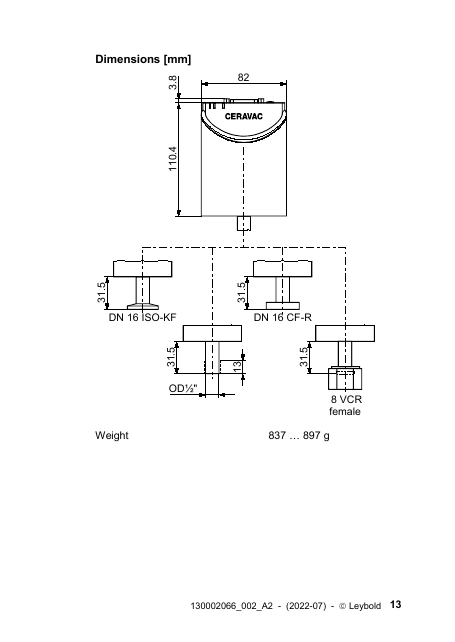

Install where pressure is representative and where deposits, vibration and temperature changes are controlled. Follow the manual for stabilisation and zero adjustment. A heated sensor does not establish universal chemical compatibility or prevent every vapour from condensing. Allow room for the selected fitting and electrical connector.


Specification references: current operating manual 130002066_002_A2, July 2022, pp3–14; official Leybold CTR 101 ordering information. Use the instructions matching the supplied part number and revision.
For a CERAVAC CTR 101 quotation, send the required pressure range and units, process gas and vapours, connection, ambient and bakeout conditions, output or communication protocol, cable length and quantity. Include the existing gauge/controller part numbers, required switching functions, power supply and calibration test points. Girovac will confirm the configuration, included equipment, price and availability.
Browse vacuum gauges and instrumentation, compare controller options or request gauge calibration support.
| Manufacturer | LEYBOLD |
|---|---|
| Equipment type | Vacuum gauges & instrumentation |
| Measurement principle | Heated capacitance diaphragm; gas-independent absolute pressure |
| Full-scale options | 0.1, 1, 10, 100 or 1000 Torr; separate variants |
| Vacuum connection | DN16 ISO-KF, DN16 CF-R, 8 VCR or ½-inch tube |
| Output / interface | 0–10 V linear measurement output and RS232C |
| Ordering options | 20 manufacturer codes — see configuration table |
| Accuracy | 0.15% of reading under specified stabilised conditions |
| Sensor temperature | 45 °C |
| Electrical connection | 15-pin D-sub male |
| Supply voltage | +14 to +30 V DC or ±15 V (±5%); protected limited-power source |
| Power consumption | ≤12 W during heating; ≤8 W at operating temperature |
| Setpoints | 2 floating normally-open contacts; maximum 30 V DC / 0.5 A DC |
| Wetted materials | Alumina ceramic and stainless steel AISI 316L |
| Operating temperature | +10 to +40 °C |
| Protection rating | IP40 |
Send the gauge model, pressure range and process details for calibration, replacement or compatibility advice.
Confirm the range, pressure reference, connection, electrical output and whether cables, a controller or calibration are included.
Availability, lead time and the applicable warranty are confirmed for your quotation. A catalogue listing does not reserve stock.
