The Edwards TIC Turbo and Instrument Controller provides local display and control for compatible vacuum equipment. Combines compatible turbo and active-gauge control.
Manufacturer illustration of the Edwards TIC Turbo and Instrument Controller. Gauges, pumps, cables and external accessories are selected separately.
The Edwards TIC Turbo and Instrument Controller provides local display and control for compatible vacuum equipment. Combines compatible turbo and active-gauge control.
Key specifications
Specification
Details
Turbo power options
100 W or 200 W
Supply
90–264 V AC, 47–63 Hz
Communications
RS232 / RS485
Ambient operation
0–40 °C
Configuration choices
Specification
Details
D39721000
100 W turbo and instrument controller
D39722000
200 W turbo and instrument controller
Choose the controller around the connected equipment
Combines compatible turbo and active-gauge control. The 100 W and 200 W versions have different power budgets and pump ramp performance. Match pump, fan, vent valve and backing-pump control to the documented configuration.
Cables, power and accessories
Select the UK mains lead A50505000 where appropriate, plus gauge and pump cables. Relays, external supplies and interface modules are accessories unless the quoted configuration expressly includes them. A controller listing does not include the gauges or pumps shown in example system diagrams.
Selection and calibration
Send every gauge and pump model, connector, output type, cable length, required set points and host interface. A controller calibration certificate alone does not certify the complete gauge/controller measurement chain. Compare APG200, AIM200 and WRG200 gauges and confirm the selected interface and power budget.
Dimensions and technical reference

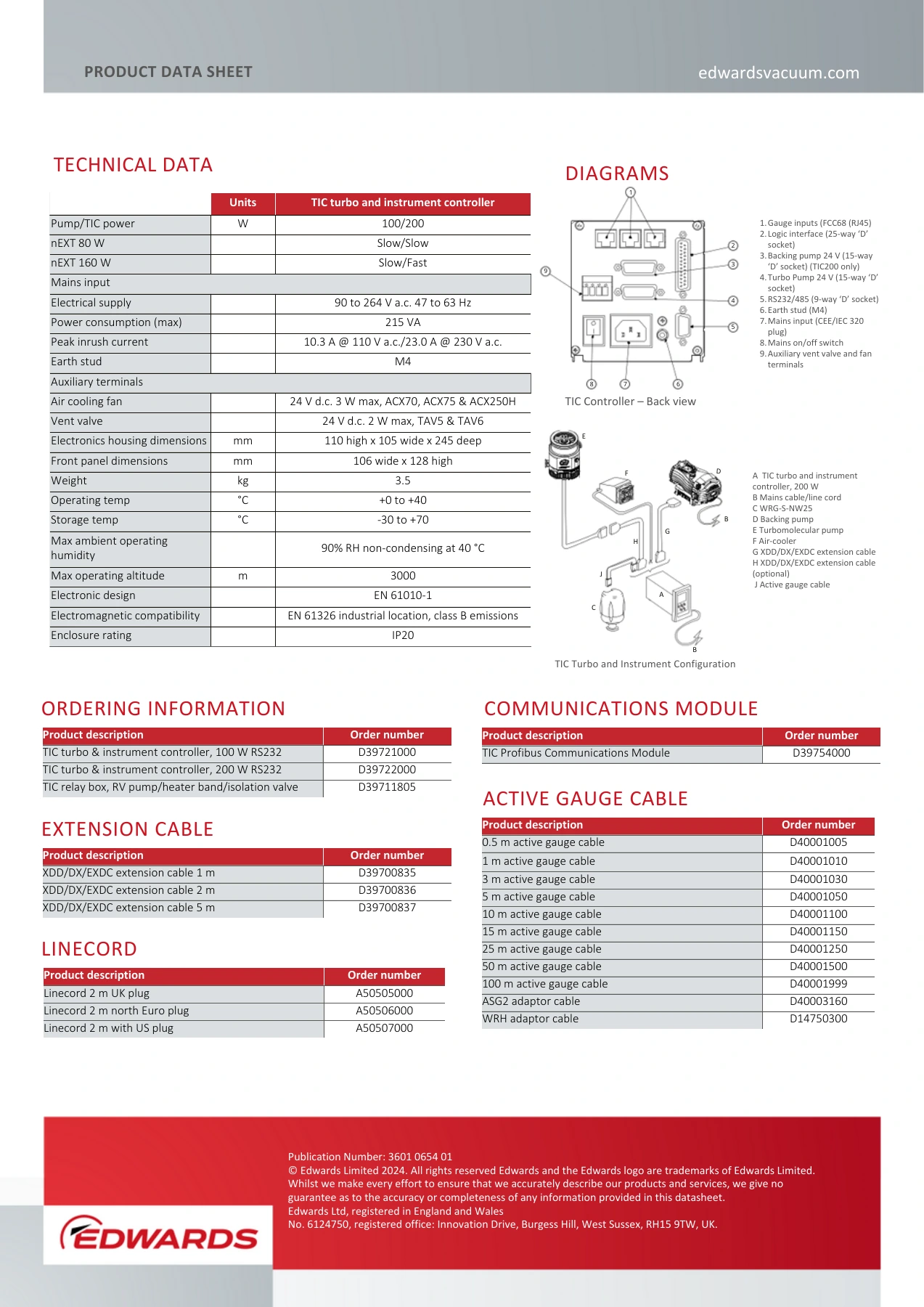

Original manufacturer technical reference for Edwards TIC Turbo and Instrument Controller. Use the drawing and dimensions for the selected configuration. Select to enlarge.
Source: 3601-0654-01-TIC-Turbo-and-Instr-Controller-Datasheet, supplied from the manufacturer’s official website. This model-level listing retains configuration choices; the exact order reference, included equipment and lead time are confirmed in the quotation.
For TIC Turbo and Instrument Controller, include working pressure, required flow or chamber volume, gas and vapour load, operating hours, electrical supply and connections. For a replacement, send the complete nameplate and serial number so the configuration can be checked.
Specifications
Manufacturer
EDWARDS
Equipment type
Vacuum gauges & instrumentation
Turbo power options
100 W or 200 W
Supply
90–264 V AC, 47–63 Hz
Communications
RS232 / RS485
Ambient operation
0–40 °C
Calibration and instrument support
Send the gauge model, pressure range and process details for calibration, replacement or compatibility advice.
