Hot Cathode / Pirani Ultra-high Vacuum Gauges
- Measurement principle
- Pirani and Bayard–Alpert; gas-dependent
- Measuring range
- 1000 to 5 × 10⁻¹⁰ mbar
- Pressure reference
- Absolute
The Edwards TAG Turbo and Active Gauge Controller provides local display and control for compatible vacuum equipment. Provides compact control of a compatible turbo and one active gauge, with pressure or timed turbo-start options.

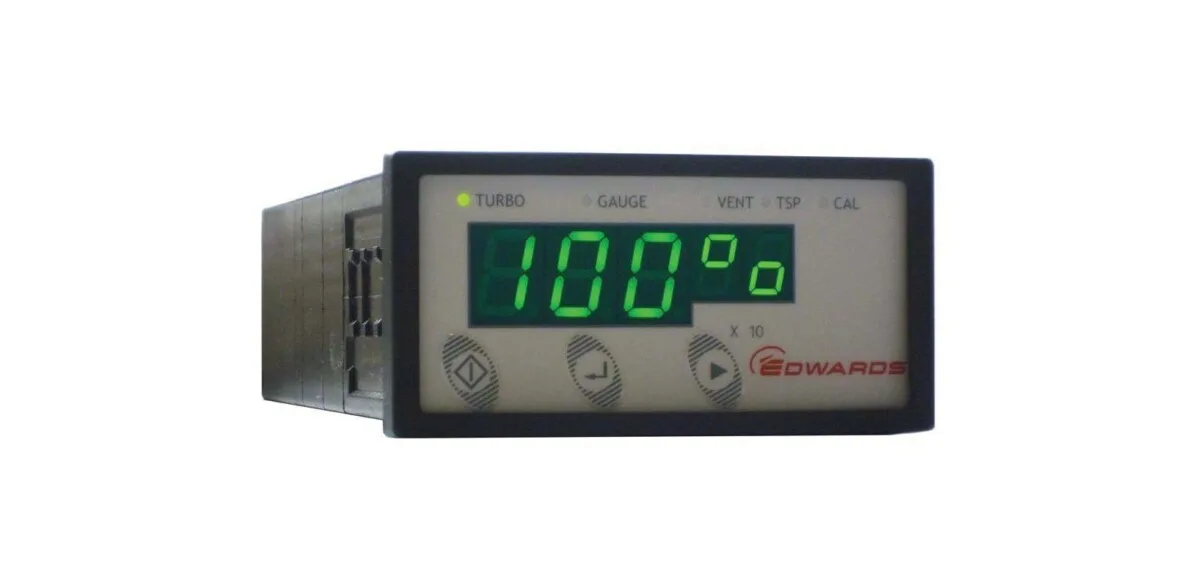

Manufacturer photograph of the Edwards TAG controller. Pumps, gauges, cables and external accessories are selected separately.
Part of the Edwards TIC, ADC and TAG vacuum controllers family. Compare the range and other model options.
Tell us the configuration and quantity you need. Include your process requirements if you would like help with selection.
View quote listThe Edwards TAG Turbo and Active Gauge Controller provides local display and control for compatible vacuum equipment. Provides compact control of a compatible turbo and one active gauge, with pressure or timed turbo-start options.
| Specification | Details |
|---|---|
| Gauge channels | One compatible active gauge |
| Supply | 24 V DC; external power supply selected separately |
| Turbo output | 24 V DC, 160 W maximum |
| Dimensions | 96 × 48 × 165 mm |
| Ambient operation | 0–40 °C |
| Specification | Details |
|---|---|
| D39592000 | TAG controller |
| D39592800 | Separate external power supply |
Provides compact control of a compatible turbo and one active gauge, with pressure or timed turbo-start options. Its external supply is separate, and the complete pump/accessory load must remain within the stated power limits.

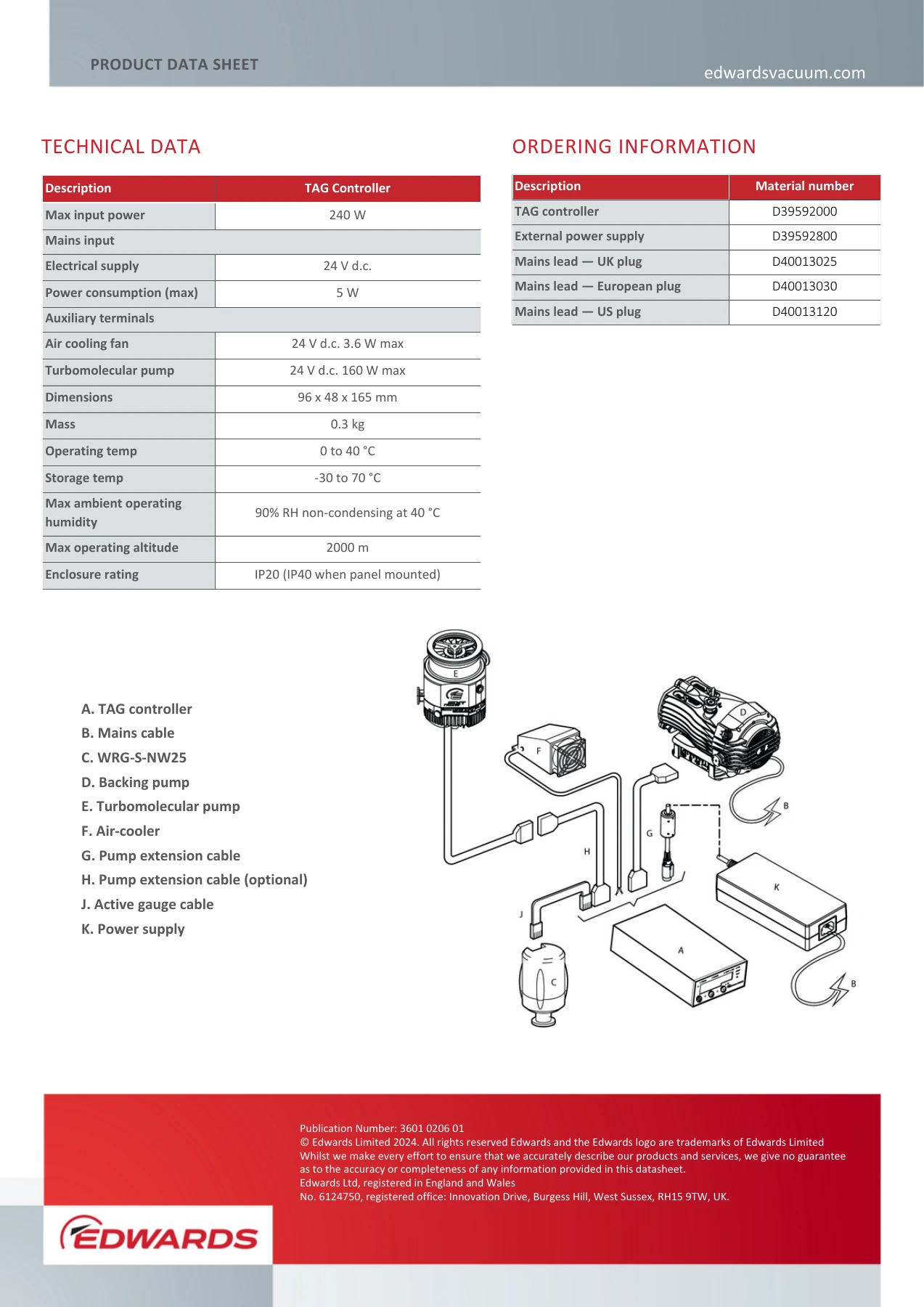

Select the UK mains lead D40013025 where appropriate, plus gauge and pump cables. Relays, external supplies and interface modules are accessories unless the quoted configuration expressly includes them. A controller listing does not include the gauges or pumps shown in example system diagrams.
Send every gauge and pump model, connector, output type, cable length, required set points and host interface. A controller calibration certificate alone does not certify the complete gauge/controller measurement chain. Compare APG200, AIM200 and WRG200 gauges and confirm the selected interface and power budget.

Source: 3601-0206-01-TAG-turbo-active-gauge-controller, supplied from the manufacturer’s official website. This model-level listing retains configuration choices; the exact order reference, included equipment and lead time are confirmed in the quotation.
Explore the TAG range and Edwards brand guide. Compare vacuum gauges and controllers, plan gauge calibration, or discuss servicing.
For TAG Turbo and Active Gauge Controller, include working pressure, required flow or chamber volume, gas and vapour load, operating hours, electrical supply and connections. For a replacement, send the complete nameplate and serial number so the configuration can be checked.
| Manufacturer | EDWARDS |
|---|---|
| Equipment type | Vacuum gauges & instrumentation |
| Gauge channels | One compatible active gauge |
| Supply | 24 V DC; external power supply selected separately |
| Turbo output | 24 V DC, 160 W maximum |
| Dimensions | 96 × 48 × 165 mm |
| Ambient operation | 0–40 °C |
Send the gauge model, pressure range and process details for calibration, replacement or compatibility advice.
Confirm the range, pressure reference, connection, electrical output and whether cables, a controller or calibration are included.
Availability, lead time and the applicable warranty are confirmed for your quotation. A catalogue listing does not reserve stock.
What to check in your quotation · Delivery · Returns and faults
Edwards TAG Turbo and Active Gauge Controller
