MIL’S INDUSVAC 2 E100.R Industrial Vacuum System
The INDUSVAC 2 E100.R uses two EVISA oil-lubricated rotary vane pumps with a receiver and automatic control for central industrial vacuum. Select the package for simultaneous demand, pressure stability and the required duty/standby arrangement.
Part of the MIL’S INDUSVAC central industrial vacuum systems family. Compare the range and other model options.
- Electrical supply
- Three-phase 400 V + neutral + earth, 50 Hz; other supplies by configuration
- Receiver capacity
- 500 litres
- Nominal pumping capacity, 50 / 60 Hz
- 2 × 100 / 2 × 120 m³/h, documented E100 package
- System vacuum level
- 5 mbar, as stated in the manufacturer system sheet
Price and availability
Tell us the configuration and quantity you need. Include your process requirements if you would like help with selection.
View quote listProduct details
MIL’S INDUSVAC 2 E100.R Industrial Vacuum System
The INDUSVAC 2 E100.R uses two EVISA oil-lubricated rotary vane pumps with a receiver and automatic control for central industrial vacuum. Select the package for simultaneous demand, pressure stability and the required duty/standby arrangement.
Documented system configuration
| Specification | Details |
|---|---|
| Nominal pumping capacity, 50 / 60 Hz | 2 × 100 / 2 × 120 m³/h, documented E100 package |
| System vacuum level | 5 mbar, as stated in the manufacturer system sheet |
| Receiver capacity | 500 litres |
| Electrical supply | Three-phase 400 V + neutral + earth, 50 Hz; other supplies by configuration |
| Motor power, 50 / 60 Hz | 2 × 2.2 / 2 × 2.64 kW |
| Pumping technology | Oil-lubricated rotary vane |
| Number of pumps | 2 |
| Control arrangement | MILLENIUM PLC; four-line display or touchscreen configuration |
| Documented plant reference | 924880 |
The manufacturer specifies 5 mbar for these complete systems. A standalone EVISA HV pump’s lower ultimate pressure is not the complete package rating. The system sheet also prints an accuracy note of ±5 mbar at 20 °C; confirm the required control tolerance and operating setpoints for the proposed package.
The plant reference identifies the base package. Specify the controller separately; it is not a complete configured order code. Both pumps may run together or in sequence. Summed capacity is not guaranteed duty/standby capacity.
Receiver sizes above follow the model-specific table (500 or 750 litres), rather than the brochure’s generic 250/500-litre introductory wording.
Controls, filtration and mobility
The receiver buffers short changes in demand. Select inlet filtration for particles and vapours, with suitable liquid protection where needed. Oil-level and temperature monitoring, a backup vacuum switch and a wheel set are configuration options. The FLEXO electrical valve is an option for intermittent demand and requires a compatible MILLENIUM control package.
Request the controller functions you need: touchscreen, event and alarm logging, access levels, Ethernet and USB are not standard on every panel. Include the number of simultaneous users and whether a pump must remain available as standby.
Manufacturer downloads
INDUSVAC EVISA system specifications, controls and ordering (PDF)
Source: single-pump tables on pages 3–4 and duplex tables on pages 5–6. Confirm current configuration and installation drawing before ordering.
Selection and support
Explore the INDUSVAC range and MILS brand guide. Compare vacuum gauges and controllers, plan gauge calibration, or discuss servicing.
For MIL’S INDUSVAC 2 E100.R Industrial Vacuum System, include working pressure, required flow or chamber volume, gas and vapour load, operating hours, electrical supply and connections. For a replacement, send the complete nameplate and serial number so the configuration can be checked.
Specifications
| Manufacturer | MIL'S |
|---|---|
| Equipment type | Industrial Vacuum Systems |
| Electrical supply | Three-phase 400 V + neutral + earth, 50 Hz; other supplies by configuration |
| Receiver capacity | 500 litres |
| Nominal pumping capacity, 50 / 60 Hz | 2 × 100 / 2 × 120 m³/h, documented E100 package |
| System vacuum level | 5 mbar, as stated in the manufacturer system sheet |
| Motor power, 50 / 60 Hz | 2 × 2.2 / 2 × 2.64 kW |
| Pumping technology | Oil-lubricated rotary vane |
| Number of pumps | 2 |
| Control arrangement | MILLENIUM PLC; four-line display or touchscreen configuration |
| Documented plant reference | 924880 |
Parts, consumables and workshop support
Send the pump model and part number when asking about a replacement. Compatibility depends on the equipment and operating conditions.
Before you order
Confirm the pump version, receiver, controls and electrical supply. Pipework, installation and commissioning must be identified in the quoted scope.
Availability, lead time and the applicable warranty are confirmed for your quotation. A catalogue listing does not reserve stock.
What to check in your quotation · Delivery · Returns and faults
Enquire about this product
MIL’S INDUSVAC 2 E100.R Industrial Vacuum System
Prefer to talk? 01692 660 117 · [email protected]
We use your details to respond to your enquiry. Read our privacy policy.
Related equipment
DVP

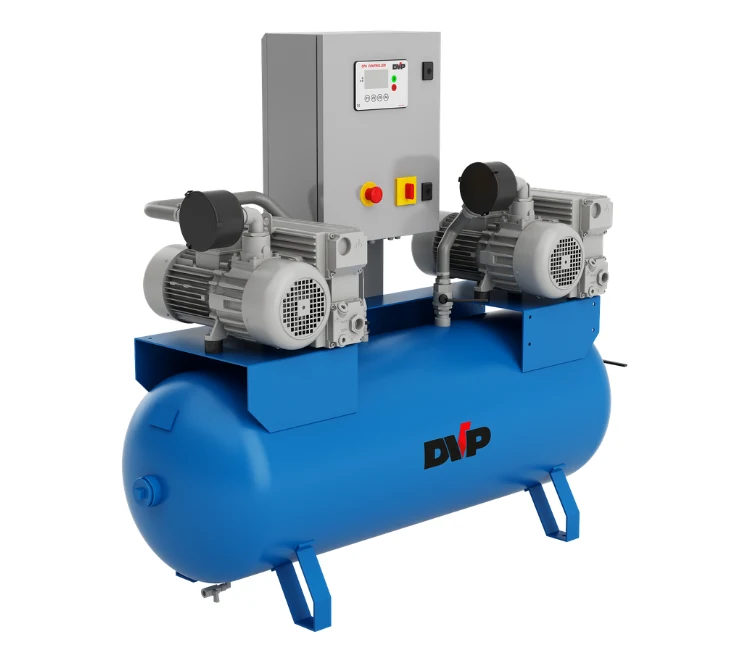

DVP CPA Duplex Vacuum System
