EMF10 OIL ELEMENT A223 04 198

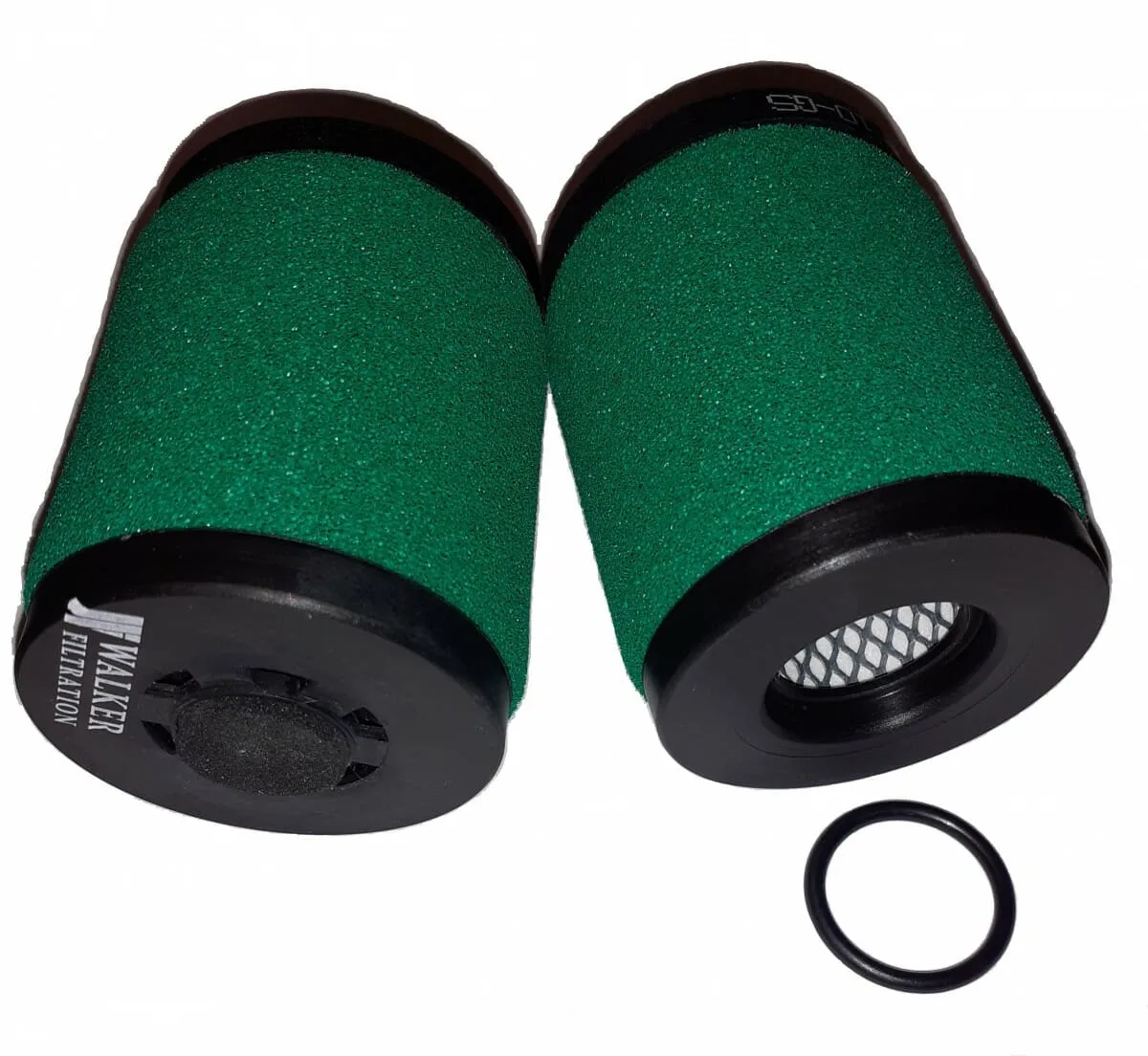

The Oil Element A223 04 198, which is Green in colour.
The EMF10 (A462 26 000) is an Exhaust Mist Filter. To be used on Oil Filled Vacuum Pumps, upto 10M3/Hr. Capturing the oil mist from the outlet of pumps. The mist is retained by mean of a special designed coalescing element, using direct interception and diffusion for the smallest droplets. These droplets are captured by the fibres and join together, becoming larger, slide off and drain through the coalescing media. Which would otherwise be ejected into the atmosphere. This may happen when you use gas ballast or when you pump high gas throughputs. You can also return oil trapped in the mist filter back to the pump, although you must ensure that the process gases will not contaminate the pump or pump oil.
Made in the UK by WALKER FILTRATION Ltd
Dimension | Length (mm) | Length (Inches) |
AConnection | 22.0 | 0.87 |
BOverall Height | 71.0 | 2.80 |
CBottom End Cap | 52.0 | 2.05 |
